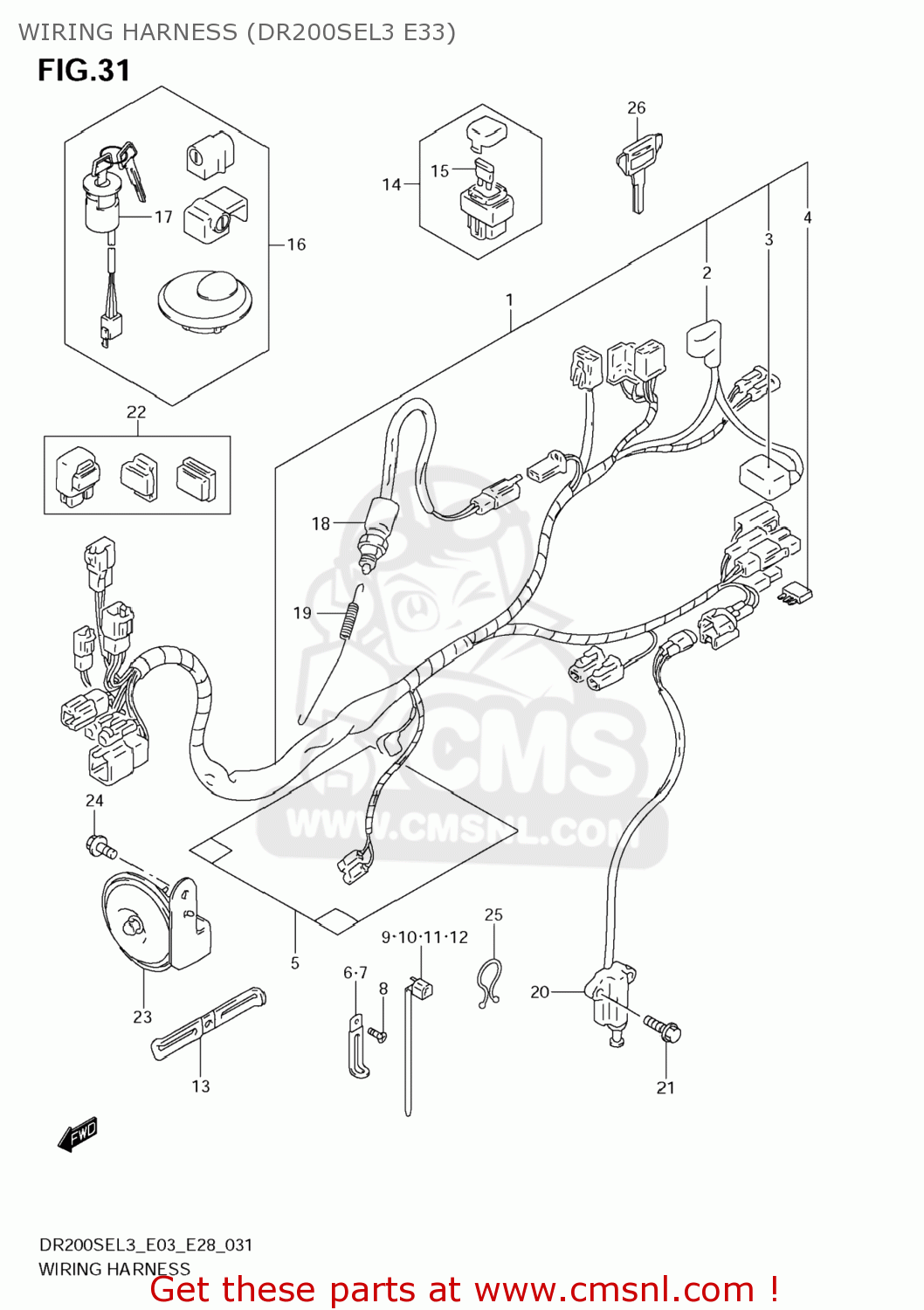

WIRING HARNESS (DR200SEL3 E33)

ref

part #

description

quantity

1

3661042A50
ref: 1

HARNESS,WIRING

€ 0.00

2

3186110D00
ref: 2

CAP,STARTER RELAY

€ 4.00

3

3362410D00
ref: 3

CAP,BATTERY PLUS

€ 4.00

4

3661138A00
ref: 4

DIODE(STANLEY DE8804)

€ 13.00

5

3661815D20
ref: 5

COVER,WIRING HARNESS

€ 12.00

6

0940406429
ref: 6

CLAMP(L:45)

€ 2.50

7

0940406433
ref: 7

CLAMP(L:80)

€ 3.00

8

035410410B
ref: 8

SCREW

€ 1.50

9

0940711401
ref: 9

CLAMP(L:95)

€ 2.50

10

0940714403
ref: 10

CLAMP(L:125)

€ 2.50

11

0940718402
ref: 11

CLAMP(L:165)

€ 2.50

12

0940725401
ref: 12

CLAMP(L:235)

€ 4.00

13

3665105301
ref: 13

CLAMP,STARTER MOTOR LEAD

€ 5.00

14

3674024B01
ref: 14

BOX ASSY,FUSE

€ 18.00

15

0948120101
ref: 15

FUSE(20A)

€ 2.00

16

3700044871
ref: 16

LOCK SET

€ 212.00

17

3711044A20
ref: 17

SWITCH ASSY,IGNITION

€ 70.00

18

3774045D00
ref: 18
37740-31D00

SWITCH ASSY,STOP LAMP

€ 20.50

19

0944306064
ref: 19

SPRING

€ 3.50

20

3784044X50
ref: 20

SWITCH ASSY,SIDE STAND

€ 75.50

21

015500620B
ref: 21

BOLT

€ 2.50

22

3874024X50
ref: 22

RELAY ASSY

€ 37.50

23

3850044B00
ref: 23

HORN ASSY

€ 48.00

24

015500612A
ref: 24

BOLT

€ 2.50

25

0940800012
ref: 25

CLIP(ID:11.5)

€ 2.00

26-1

3714603A00
ref: 26-1

KEY,BLANK(TYPE:C)

€ 6.00

26-2

3714603A10
ref: 26-2

KEY,BLANK(TYPE:D)

€ 6.00

26-3

3714603A20
ref: 26-3

KEY,BLANK(TYPE:E)

€ 6.00

26-4

3714603A30
ref: 26-4

KEY,BLANK(TYPE:F)

€ 6.00
