HEADLAMP COVER

DR200SE 2013 (L3) USA (E03)

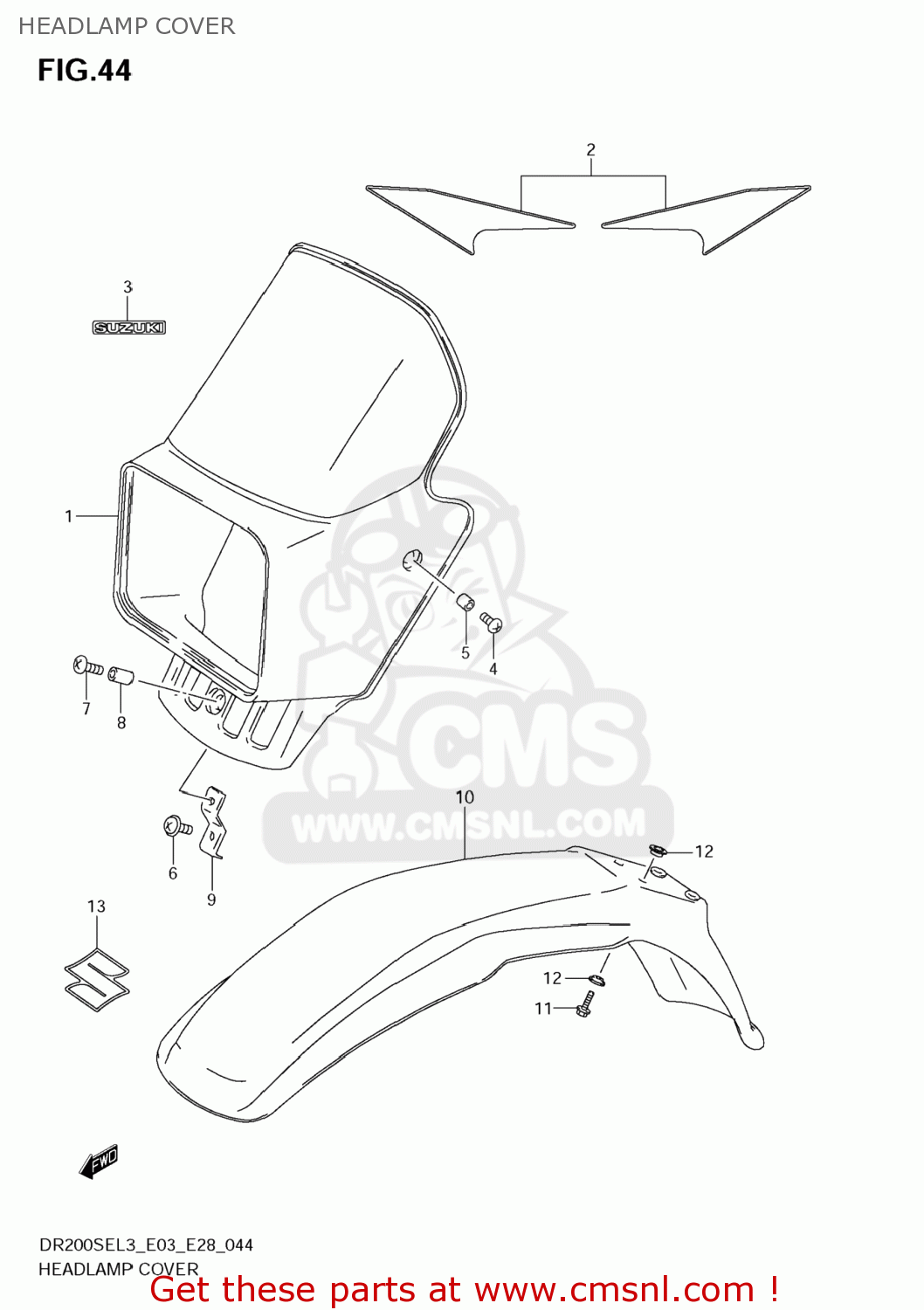

Headlamp cover diagram DR200SE 2013 (L3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5181114A30019
ref: 1-1

COVER,HEADLAMP

€ 65.00

1-2

5181114A3030H
ref: 1-2

COVER,HEADLAMP

€ 65.00

2-1

6872042A10HLV
ref: 2-1

TAPE SET,HEADLAMP COVER

€ 0.00

2-2

6872042A10HLW
ref: 2-2

TAPE SET,HEADLAMP COVER

€ 15.50

6872105D00YD8
ref: 3

EMBLEM,SUZUKI

€ 7.00

021420612B
ref: 4

SCREW

€ 2.00

0918006245
ref: 5

SPACER(6.1X8X3.5)

€ 3.00

0211236127
ref: 6

SCREW

€ 2.00

021420620B
ref: 7

SCREW

€ 2.00

0918006249
ref: 8

SPACER(6.1X8X12)

€ 2.50

5181444A00
ref: 9

BRACE,HEADLAMP HOUSING LWR

€ 4.00

10-1

5311144A20019
ref: 10-1

FENDER,FR

€ 75.00

10-2

5311144A2030H
ref: 10-2

FENDER,FR

€ 72.00

015500616A
ref: 11

BOLT

€ 2.50

0916906053
ref: 12

WASHER

€ 2.00

6815107G10YD8
ref: 13

EMBLEM,S

€ 10.50
