MAGNETO
DR200SE 2013 (L3) USA (E03)

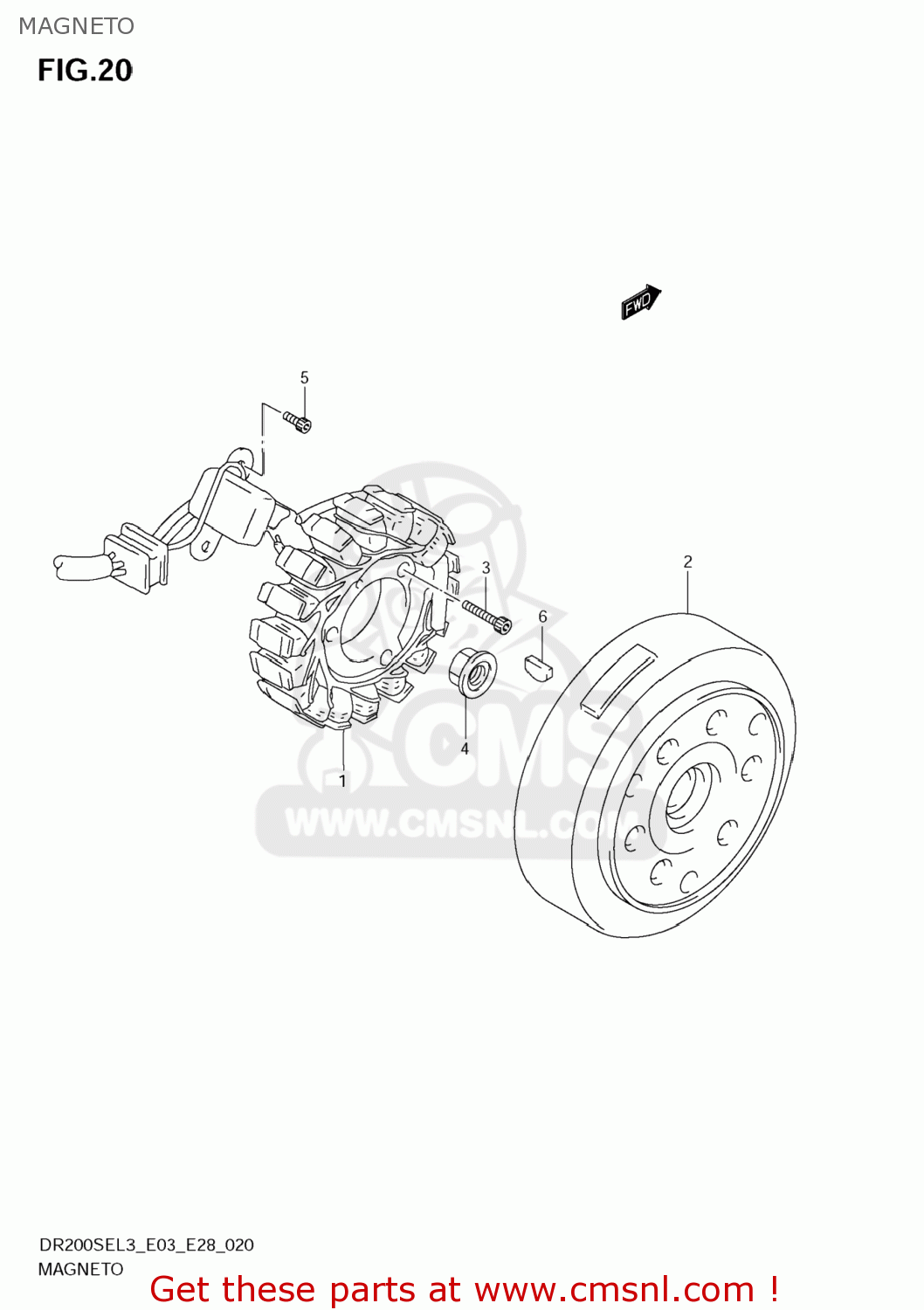

Magneto diagram DR200SE 2013 (L3) USA (E03)
MAGNETO DR200SE 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210142A40
ref: 1
STARTER ASSY
€ 458.50
2
3210242A40
ref: 2
ROTOR ASSY
€ 421.00
3
071300525A
ref: 3
BOLT
€ 1.50
4
3179226F10
ref: 4
NUT,MAGNETO ROTOR
€ 2.50
5
071300512A
ref: 5
BOLT
€ 2.50
6
0942003008
ref: 6
KEY
€ 2.50
