DR200SE 2013 (L3) USA (E03)

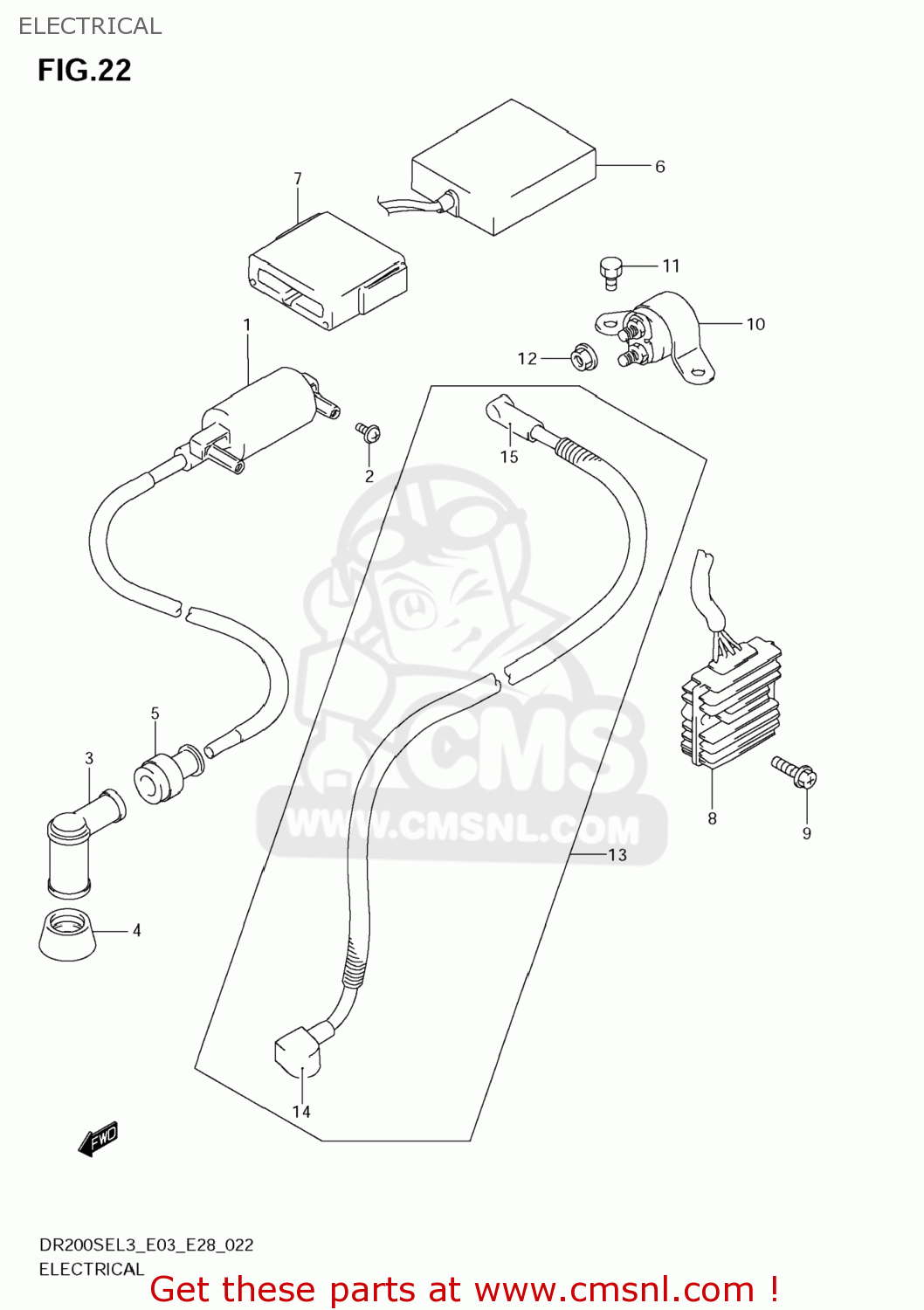

Electrical diagram DR200SE 2013 (L3) USA (E03)
ELECTRICAL DR200SE 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3341005350
ref: 1
COIL ASSY,IGNITION
€ 128.00
2
021420510B
ref: 2
SCREW
€ 2.50
3
3351022010
ref: 3
33510-97313
CAP ASSY,SPARK PLUG
€ 16.50
4
3354138210
ref: 4
SEAL,SPARK PLUG
€ 7.00
5
3354238B00
ref: 5
SEAL,HIGH TENSION CORD
€ 4.50
6
3290042A30
ref: 6
IGNITOR
€ 371.00
7
3298044A00
ref: 7
CUSHION,CDI UNIT
€ 10.00
8
3280008D10
ref: 8
RECTIFIER ASSY
€ 94.50
9
021620625B
ref: 9
SCREW
€ 2.00
10
3180015501
ref: 10
RELAY ASSY,STARTING MOTOR
€ 78.00
11
0912806044
ref: 11
SCREW(6X10)
€ 1.50
12
083613506A
ref: 12
NUT
€ 2.00
13
3381044A00
ref: 13
WIRE,STARTER MOTOR LEAD
€ 37.00
14
3186106C00
ref: 14
CAP,STARTER MOTOR TERMINAL
€ 3.00
15
3186110D00
ref: 15
CAP,STARTER RELAY
€ 4.00
