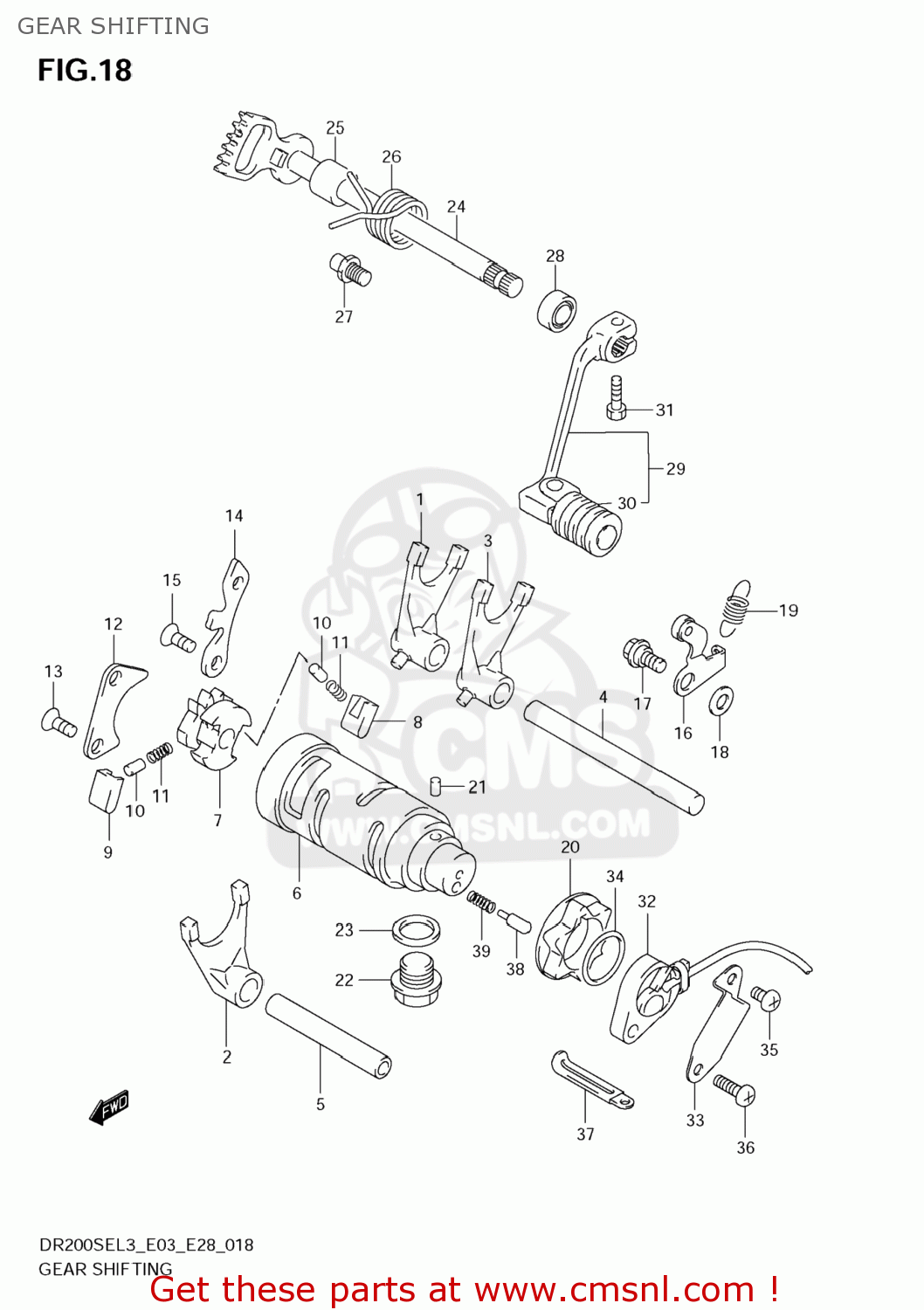

GEAR SHIFTING

ref

part #

description

quantity

1

2521142A02
ref: 1

FORK,GEAR SHIFT NO.1

€ 47.50

2

2522142A02
ref: 2

FORK,GEAR SHIFT NO.2

€ 36.00

3

2523142A02
ref: 3

FORK,GEAR SHIFT NO.3

€ 34.00

4

2541116701
ref: 4

SHAFT,GEAR SHIFT FORK(L:109)

€ 11.50

5

2542135420
ref: 5

SHAFT,GEAR SHIFT FORK NO.2

€ 10.00

6

2531042A00
ref: 6

CAM,GEAR SHIFT

€ 68.00

7

2532231310
ref: 7

GEAR,GEAR SHIFT CAM DRIVEN

€ 14.50

8

2532334201
ref: 8

PAWL,GEAR SHIFT NO.1

€ 6.00

9

2532434201
ref: 9

PAWL,GEAR SHIFT NO.2

€ 6.00

10

0926105003
ref: 10

PIN(5X8)

€ 1.50

11

0944004003
ref: 11

SPRING

€ 1.50

12

2533130001
ref: 12

LIFTER,GEAR SHIFT POLE

€ 3.50

13

0912606011
ref: 13

SCREW(6X12)

€ 2.00

14

2534105200
ref: 14

GUIDE,GEAR SHIFT CAM

€ 6.50

15

0912606011
ref: 15

SCREW(6X12)

€ 2.00

16

2535042A01
ref: 16

STOPPER,GEAR SHIFT CAM

€ 10.00

17

0911106054
ref: 17

BOLT(6X14.6)

€ 1.50

18

0821106141
ref: 18

WASHER

€ 2.50

19

0944310036
ref: 19

SPRING

€ 3.50

20

2538104700
ref: 20

PLATE,GEAR SHIFT CAM STOPPER

€ 13.00

21

0422104069
ref: 21

PIN

€ 2.00

22

0924714026
ref: 22

PLUG(14X12)

€ 3.50

23

0916814002
ref: 23
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

24

2551005201
ref: 24

SHAFT,GEAR SHIFT

€ 42.50

25

0918012068
ref: 25

SPACER(12X20X15.3)

€ 3.00

26

0944426023
ref: 26

SPRING

€ 3.00

27

2567101011
ref: 27

STOPPER,GEAR SHIFT ARM

€ 3.00

28

0928512006
ref: 28

SEAL,OIL (12X22X9)

€ 7.00

29

2560042A00
ref: 29

LEVER ASSY,GEAR SHIFT

€ 26.00

30

2565203D00
ref: 30

RUBBER,GEAR SHIFT PEDAL

€ 3.50

31

015000620A
ref: 31

BOLT

€ 2.00

32

3772042A30
ref: 32

BASE ASSY,NEUTRAL SW TERMINAL

€ 26.00

33

3772142A00
ref: 33

PROTECTOR,GEAR SHIFT SW

€ 3.00

34

0928022001
ref: 34

O RING(D:2.4,ID:21.8)

€ 2.00

35

021120508A
ref: 35

SCREW

€ 2.00

36

021120516A
ref: 36

SCREW

€ 2.00

37

0940406429
ref: 37

CLAMP(L:45)

€ 2.50

38

0920905011
ref: 38

PIN(5X15.5)

€ 2.00

39

0944004010
ref: 39

SPRING

€ 1.50
