FRONT FORK DAMPER
DR200SE 2013 (L3) USA (E03)

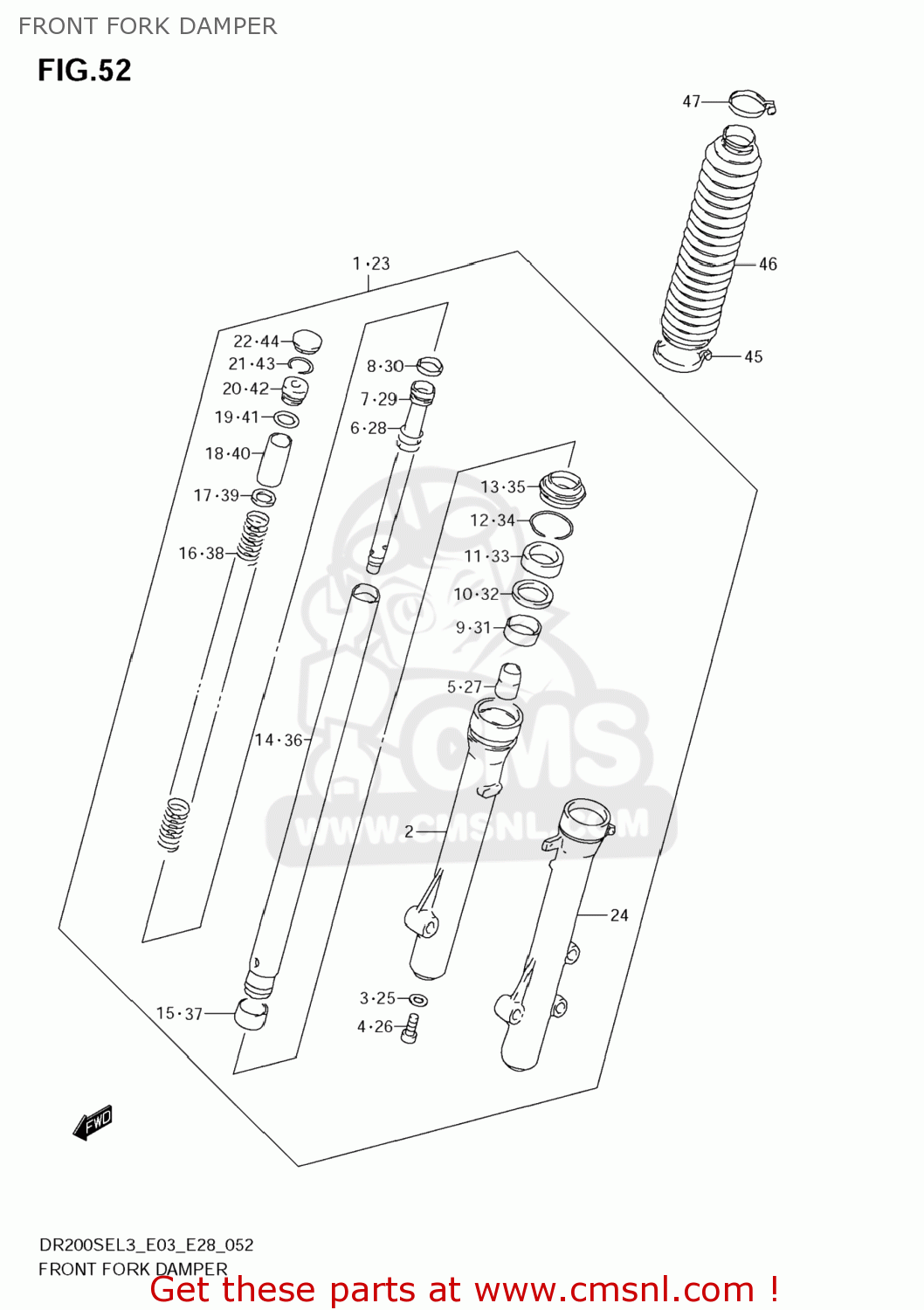

Front fork damper diagram DR200SE 2013 (L3) USA (E03)
FRONT FORK DAMPER DR200SE 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110342AA0
ref: 1
DAMPER ASSY,FR FORK,R
€ 506.00
2
5113101A01
ref: 2
TUBE,OUTER,R
€ 195.00
3
5114836011
ref: 3
GASKET (NAS)
€ 4.00
4
5114706F10
ref: 4
BOLT
€ 3.00
5
5119543530
ref: 5
PIECE,OIL LOCK
€ 12.50
6
5117701A00
ref: 6
SPRING,REBOUND
€ 2.50
7
5114642AA0
ref: 7
CYLINDER
€ 45.50
8
5119645200
ref: 8
RING,PISTON
€ 5.50
9
5115233300
ref: 9
BUSH,GUIDE
€ 11.50
10
5116830B00
ref: 10
SPACER,SEAL
€ 5.00
11
5115319D10
ref: 11
SEAL,OIL 35X48X11
€ 14.00
12
5115601A00
ref: 12
RING,OIL SEAL STOPPER
€ 3.50
13
5117301A00
ref: 13
SEAL,DUST
€ 10.00
14
5111001A30
ref: 14
TUBE,INNER
€ 242.00
15
5112133300
ref: 15
PISTON
€ 10.50
16
5117142AA0
ref: 16
SPRING,MAIN
€ 29.50
17
5119220510
ref: 17
SPRING,JOINT
€ 2.00
18
5117642AA0
ref: 18
SPACER,SPRING
€ 5.50
19
5118131030
ref: 19
O RING
€ 3.50
20
5117547400
ref: 20
SPRING SEAT B
€ 5.50
21
5116947400
ref: 21
RING,STOPPER
€ 2.50
22
5118931230
ref: 22
CAP
€ 6.50
23
5110442AA0
ref: 23
DAMPER ASSY,FR FORK,L
€ 506.00
24
5114101A01
ref: 24
TUBE,OUTER,L
€ 175.00
25
5114836011
ref: 25
GASKET (NAS)
€ 4.00
26
5114706F10
ref: 26
BOLT
€ 3.00
27
5119543530
ref: 27
PIECE,OIL LOCK
€ 12.50
28
5117701A00
ref: 28
SPRING,REBOUND
€ 2.50
29
5114642AA0
ref: 29
CYLINDER
€ 45.50
30
5119645200
ref: 30
RING,PISTON
€ 5.50
31
5115233300
ref: 31
BUSH,GUIDE
€ 11.50
32
5116830B00
ref: 32
SPACER,SEAL
€ 5.00
33
5115319D10
ref: 33
SEAL,OIL 35X48X11
€ 14.00
34
5115601A00
ref: 34
RING,OIL SEAL STOPPER
€ 3.50
35
5117301A00
ref: 35
SEAL,DUST
€ 10.00
36
5111001A30
ref: 36
TUBE,INNER
€ 242.00
37
5112133300
ref: 37
PISTON
€ 10.50
38
5117142AA0
ref: 38
SPRING,MAIN
€ 29.50
39
5119220510
ref: 39
SPRING,JOINT
€ 2.00
40
5117642AA0
ref: 40
SPACER,SPRING
€ 5.50
41
5118131030
ref: 41
O RING
€ 3.50
42
5117547400
ref: 42
SPRING SEAT B
€ 5.50
43
5116947400
ref: 43
RING,STOPPER
€ 2.50
44
5118931230
ref: 44
CAP
€ 6.50
45
5157642AA0
ref: 45
BAND,BOOT LWR
€ 5.00
46
5157101A00019
ref: 46
BOOT
€ 32.50
47
5157501A00
ref: 47
BAND
€ 6.50
