CRANK BALANCER
DR250 1990 (L) USA (E03)

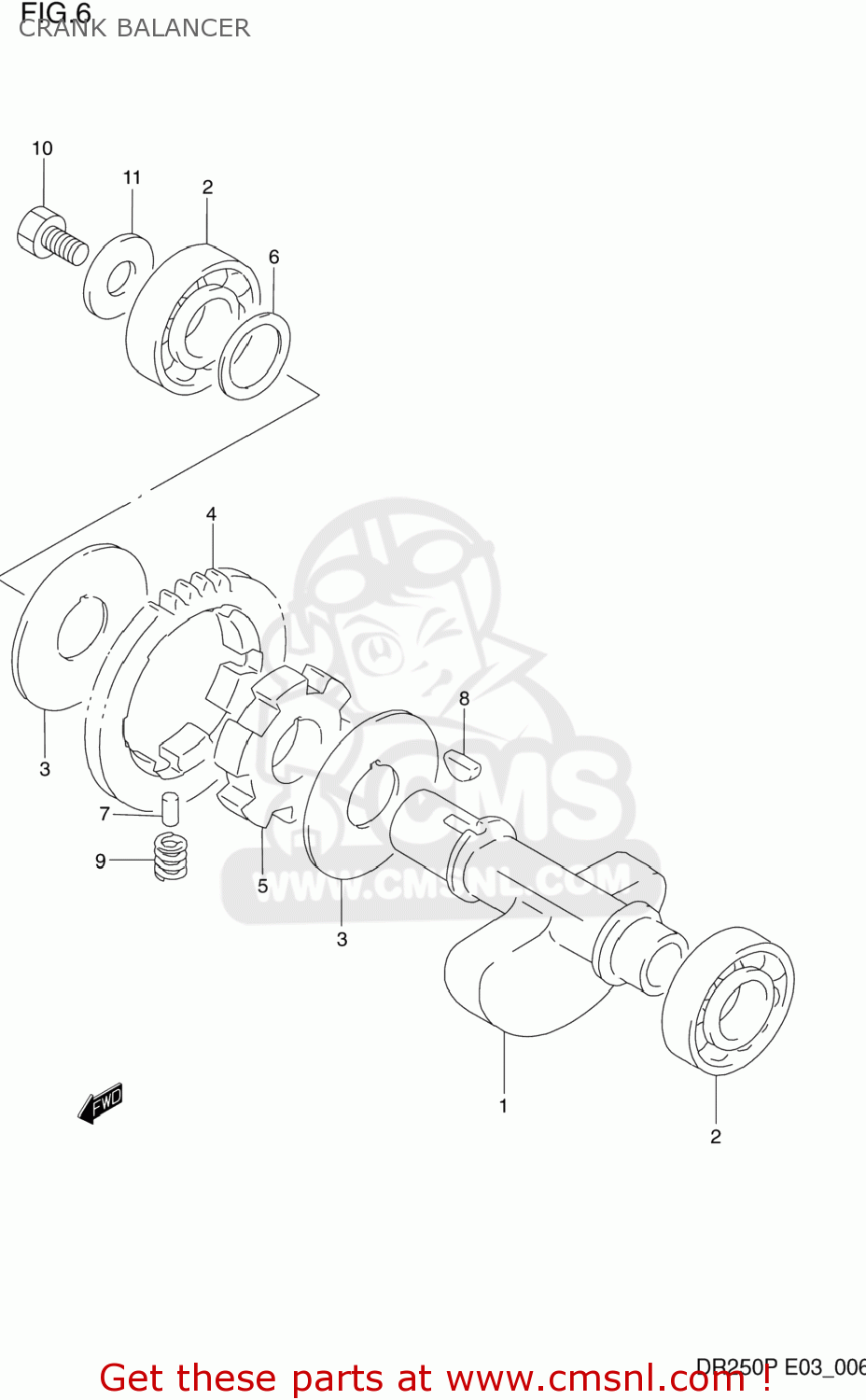

Crank balancer diagram DR250 1990 (L) USA (E03)
CRANK BALANCER DR250 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1265115D00
ref: 1-1
12651-15D01
BALANCER,CRANKSHAFT
€ 46.50
1-2
1265115D01
ref: 1-2
BALANCER CRANK
€ 46.50
2
0926220121
ref: 2
BEARING(20X47X14)
€ 28.00
3
0916620012
ref: 3
WASHER
€ 6.50
4-1
1266614D01
ref: 4-1
12666-14D02
GEAR,CRANK BALANCER
€ 110.00
4-2
1266614D02
ref: 4-2
GEAR,CRANK BAL DRIVEN(NT:37)
€ 110.00
5
1266924B00
ref: 5
12669-24B01
RACE,CRANK BALANCER DRIVEN GEAR
€ 34.00
6
0822120285
ref: 6
09181-20158
THRUST WASHER
€ 2.50
7
0920204013
ref: 7
09202-04017
PIN
€ 3.00
8
0834131049
ref: 8
09420-04008
KEY 4MM
€ 3.50
9
0944009031
ref: 9
SPRING
€ 3.00
10
0110710168
ref: 10
01500-10167
BOLT
€ 2.50
11
0916010099
ref: 11
WASHER(10X28X2.2)
€ 2.50
