OIL COOLER (OPTIONAL)
DR250 1990 (L) USA (E03)

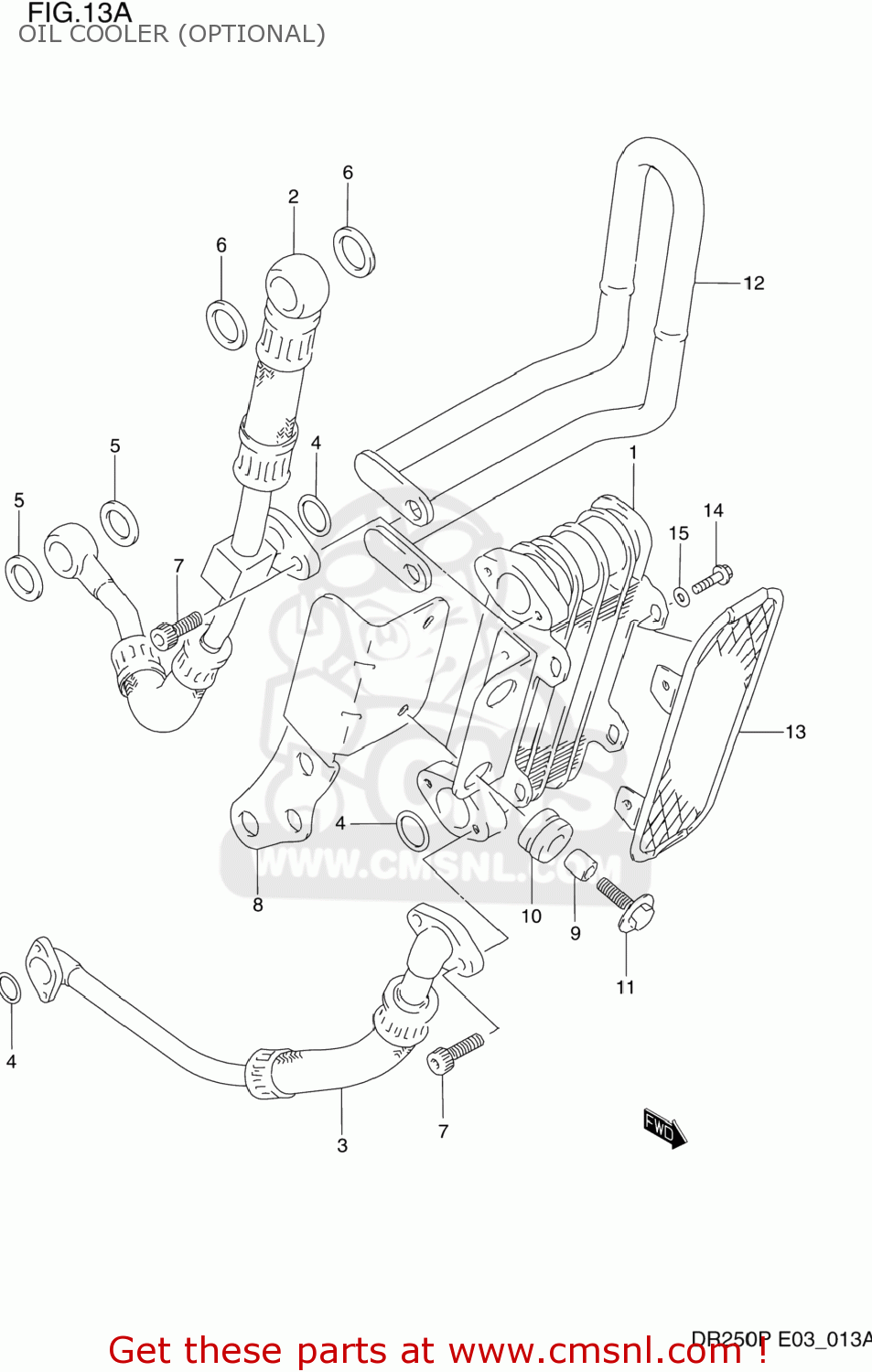

Oil cooler (optional) diagram DR250 1990 (L) USA (E03)
OIL COOLER (OPTIONAL) DR250 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1600014820
ref:
COOLER SET,OIL
€ 496.00
1
1660014D00
ref: 1
COOLER ASSY,OIL
€ 269.50
2
1645014D00
ref: 2
HOSE,OIL COOLER UPR
€ 149.00
3
1649014D00
ref: 3
HOSE,OIL COOLER LWR
€ 135.00
4
0928012008
ref: 4
O RING(D:2.4,ID:12.3)
€ 3.00
5
0916812010
ref: 5
GASKET(12X16.5X1.5) (NAS)
€ 7.00
6
0916816003
ref: 6
GASKET(16X22X2) (NAS)
€ 2.00
7
0711006165
ref: 7
07130-0616B
BOLT
€ 3.00
8
1662014D00
ref: 8
BRACKET,OIL COOLER
€ 70.50
9
0918006030
ref: 9
09180-06310
SPACER (6.8X10X10)
€ 2.00
10
0932010015
ref: 10
CUSHION
€ 2.50
11
0911606143
ref: 11
09116-06115
BOLT 6X20
€ 2.00
12
1664014D00
ref: 12
GUARD,OIL COOLER
€ 86.00
13
1665014D00
ref: 13
BUMPER,OIL COOLER
€ 89.50
14
0154705105
ref: 14
01547-0510B
BOLT
€ 2.50
15
0832121055
ref: 15
08321-0105A
WASHER,LOCK
€ 3.00
