CYLINDER
DR250 1990 (L) USA (E03)

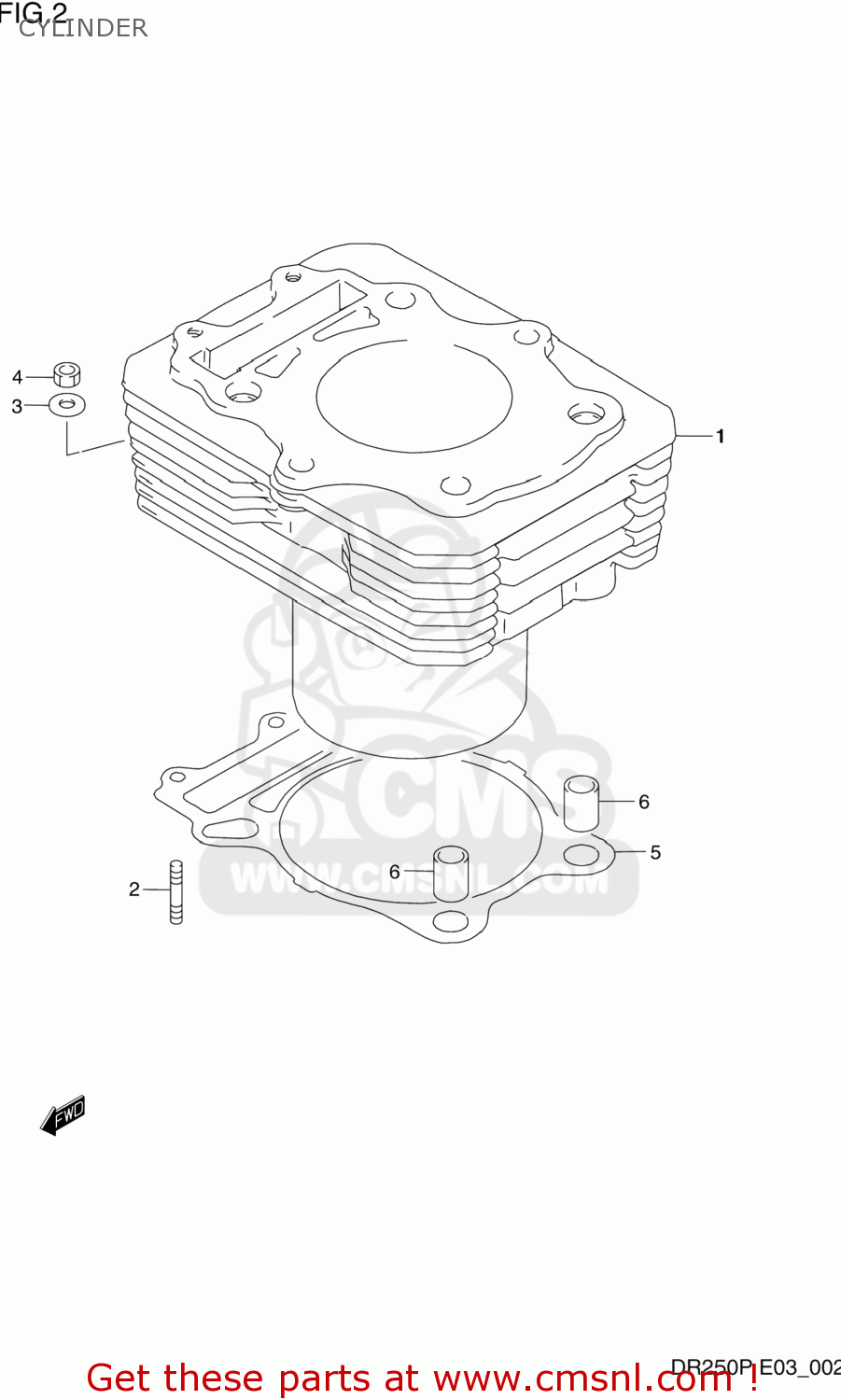

Cylinder diagram DR250 1990 (L) USA (E03)
CYLINDER DR250 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121015D000F0
ref: 1-1
11210-15D11-0F0
CYLINDER
€ 215.50
1-2
1121015D010F0
ref: 1-2
11210-15D11-0F0
CYLINDER
€ 215.50
1-3
1121015D020F0
ref: 1-3
11210-15D11-0F0
CYLINDER
€ 215.50
2
0142106208
ref: 2
01421-0620A
STUD 6X20
€ 2.50
3
0832211068
ref: 3
08322-0106B
WASHER 6MM
€ 2.00
4
0914006022
ref: 4
09140-06502
NUT
€ 3.00
5
1124114D01
ref: 5
GASKET,CYLINDER (NAS)
€ 12.00
6
0920613001
ref: 6
04211-13189
PIN
€ 2.50
