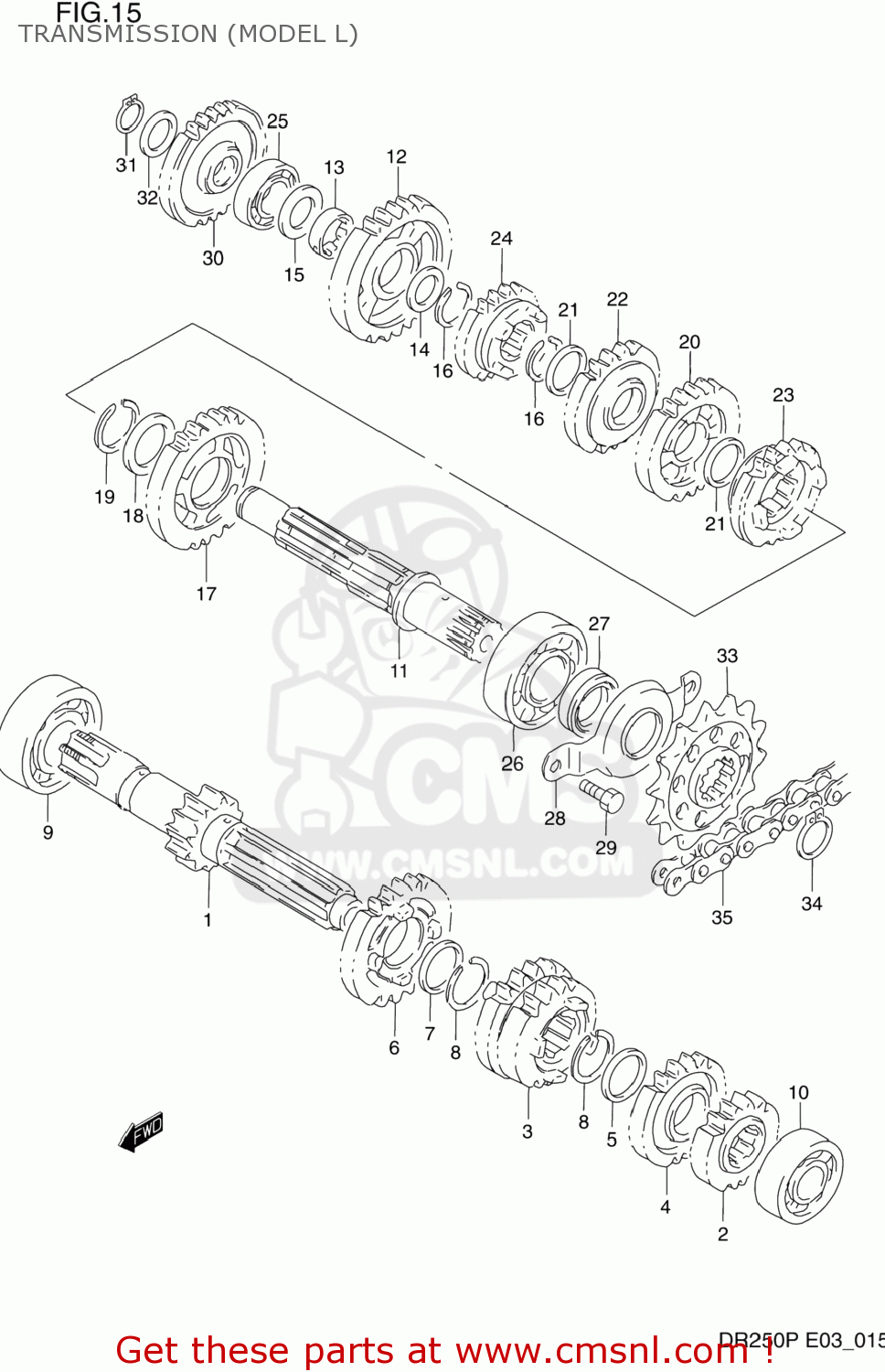

TRANSMISSION (MODEL L)

ref

part #

description

quantity

1

2412014D01
ref: 1
24120-14D03

SHAFT,COUNTER

€ 117.00

2

2422114D00
ref: 2
24221-14D01

GEAR,SECOND DRIVE (NT:15)

€ 88.50

3

2423114D00
ref: 3

GEAR,3RD & 4TH DRIVE(NT:18/18)

€ 108.00

4

2425114D00
ref: 4

GEAR,5TH DRIVE(NT:21)

€ 84.50

5

0821122261
ref: 5
09181-22111

WASHER

€ 3.00

6

2426014D00
ref: 6

GEAR COMP,SIXTH DRIVE

€ 72.00

7

0821122281
ref: 7
09181-22139

SHIM

€ 4.00

8

0938022006
ref: 8

CIRCLIP

€ 3.00

9

0926220065
ref: 9
09262-20145

BEARING

€ 24.00

10

0926217018
ref: 10
09262-17027

BEARING

€ 25.00

11

2413014D00
ref: 11

SHAFT COMP,DRIVE

€ 179.00

12

2431114D00
ref: 12
24311-14D01

GEAR,FIRST DRIVEN (NT:29)

€ 61.50

13

2431214D00
ref: 13

BUSH,1ST DRIVEN GEAR

€ 15.00

14

0821117322
ref: 14

WASHER

€ 2.50

15

0821122301
ref: 15
09181-22167

WASHER,THRUST

€ 3.00

16

0938022006
ref: 16

CIRCLIP

€ 3.00

17

2432014D00
ref: 17

GEAR,2ND DRIVEN(NT:26)

€ 87.50

18

0821125341
ref: 18
09181-25167

WASHER

€ 3.50

19

0938025010
ref: 19

CIRCLIP

€ 3.00

20

2433114D00
ref: 20
24331-14D01

GEAR,THIRD DRIVEN

€ 87.50

21

0821122281
ref: 21
09181-22139

SHIM

€ 4.00

22

2434114D00
ref: 22

GEAR,4TH DRIVEN(NT:20)

€ 80.50

23

2435114D00
ref: 23
24351-14D01

GEAR,FIFTH DRIVEN (NT:20)

€ 95.00

24

2436114D00
ref: 24
24361-14D01

GEAR,SIXTH DRIVEN

€ 95.50

25

0926217038
ref: 25

BEARING(17X42X12)

€ 59.50

26

0926222024
ref: 26

BEARING(22X56X16)

€ 40.00

27

0928322025
ref: 27

SEAL,OIL(22X34X7)

€ 12.50

27

0928322025
ref: 27

SEAL,OIL(22X34X7)

€ 12.50

28

2475114D00
ref: 28

RETAINER,DRIVE SHAFT OIL SEAL

€ 8.00

29

0110706126
ref: 29
01500-0612A

BOLT

€ 2.00

30

2626014D00
ref: 30
26260-14D90

GEAR,KICK STARTER IDLE

€ 92.00

31

0938017001
ref: 31

CIRCLIP

€ 2.00

32

0821117261
ref: 32
09181-17167

WASHER,THRUST

€ 3.00

33

2751114310
ref: 33
27511-37F00

SPROCKET,ENGINE

€ 23.50

34

0938022012
ref: 34

CIRCLIP
