CRANKCASE COVER
DR250 1990 (L) USA (E03)

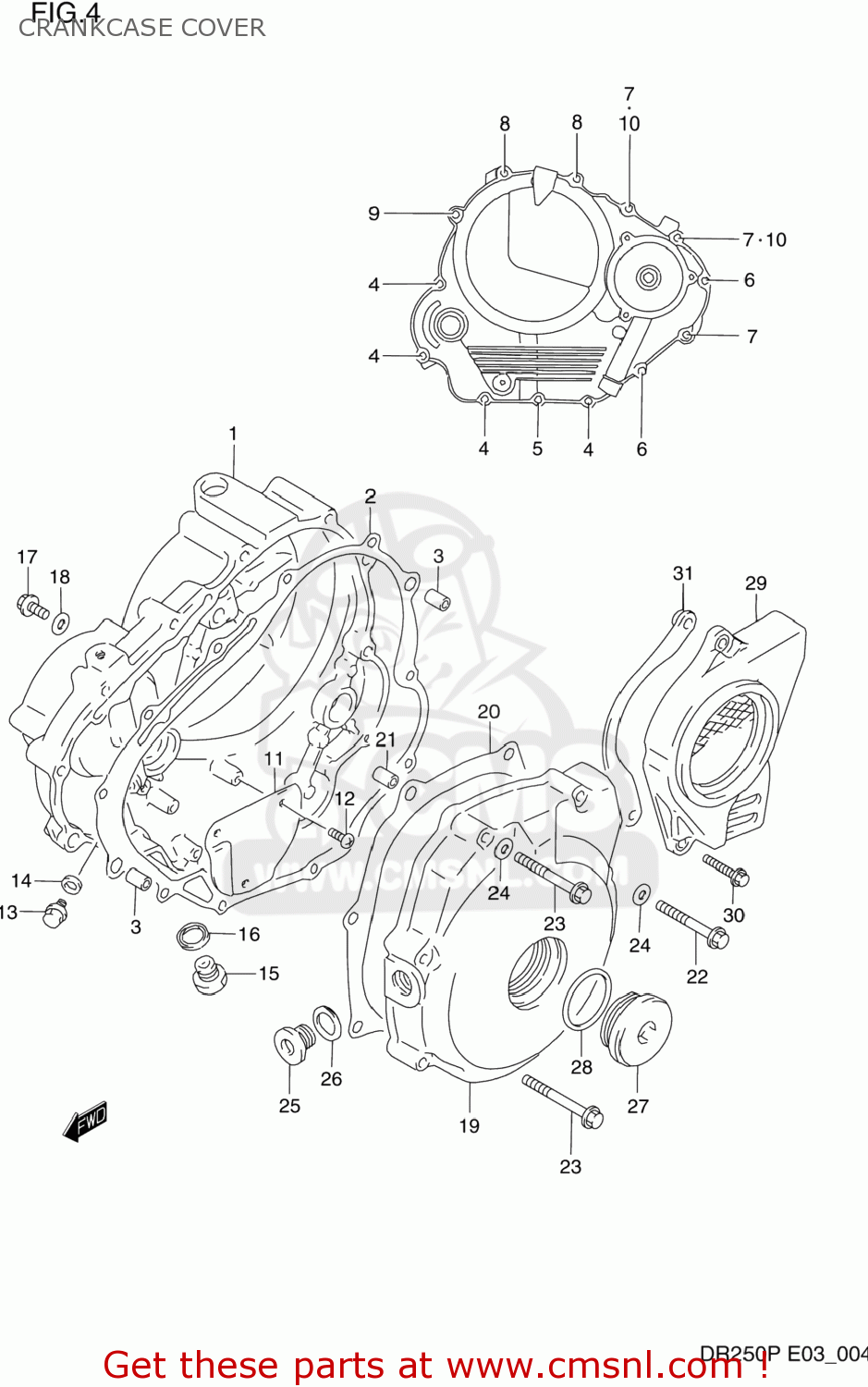

Crankcase cover diagram DR250 1990 (L) USA (E03)
CRANKCASE COVER DR250 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134114D02
ref: 1-1
11340-47810
COVER,CLUTCH
€ 261.00
1-2
1134114D05
ref: 1-2
11340-47810
COVER,CLUTCH
€ 261.00
2-1
1148214D01
ref: 2-1
11482-14D03
GASKET,CLUTCH COVER (NAS)
€ 24.50
2-2
1148214D02
ref: 2-2
11482-14D03
GASKET,CLUTCH COVER (NAS)
€ 24.50
3
0421109149
ref: 3
PIN
€ 2.00
4
0154706257
ref: 4
BOLT
€ 2.50
5
0154706307
ref: 5
BOLT
€ 2.50
6
0154706357
ref: 6
BOLT
€ 2.50
7
0154706407
ref: 7
BOLT
€ 2.50
8
0154706607
ref: 8
BOLT
€ 2.50
9
0154706657
ref: 9
BOLT
€ 2.00
10
0916806023
ref: 10
GASKET(5.8X13X1.2) (NAS)
€ 2.00
11
1134914D00
ref: 11
SEPARATOR,OIL RETURN
€ 4.50
12
0912505042
ref: 12
SCREW(5X10)
€ 2.50
13
0910306078
ref: 13
BOLT(6X8)
€ 2.00
14
0916806004
ref: 14
GASKET(6.2X11X1).2 (NAS)
€ 1.50
15-1
0924814005
ref: 15-1
PLUG,14X12
€ 5.00
15-2
0924810007
ref: 15-2
PLUG(10X6.8)
€ 4.50
16-1
0916814004
ref: 16-1
GASKET(14X19.2X2) (NAS)
€ 2.50
16-2
0916810002
ref: 16-2
GASKET(10X14X3.6) (NAS)
€ 2.00
17
0912806043
ref: 17
09128-06058
SCREW (6X10)
€ 2.00
18
0916806023
ref: 18
GASKET(5.8X13X1.2) (NAS)
€ 2.00
19-1
1135114D02
ref: 19-1
COVER,MAGNETO
€ 92.00
19-2
1135114D10
ref: 19-2
COVER,MAGNETO
€ 189.00
20-1
1148314D01
ref: 20-1
11483-14D03
GASKET,MAGNETO COVER (NAS)
€ 23.00
20-2
1148314D03
ref: 20-2
GASKET,MAGNETO COVER (NAS)
€ 23.00
21
0421109149
ref: 21
PIN
€ 2.00
22-1
0154706357
ref: 22-1
BOLT
€ 2.50
22-2
0154706357
ref: 22-2
BOLT
€ 2.50
23-1
0154706457
ref: 23-1
BOLT
€ 2.50
23-2
0154706457
ref: 23-2
BOLT
€ 2.50
24
0916806023
ref: 24
GASKET(5.8X13X1.2) (NAS)
€ 2.00
25
0924814005
ref: 25
PLUG,14X12
€ 5.00
26
0916814004
ref: 26
GASKET(14X19.2X2) (NAS)
€ 2.50
27
092593601620H
ref: 27
PLUG(SILVER)
€ 10.50
28
0928033004
ref: 28
O RING(D:3.1,ID:32.7)
€ 2.50
29
1136014D01
ref: 29
COVER,ENGINE SPROCKET
€ 84.00
30
0154706257
ref: 30
BOLT
€ 2.50
31
2764015D00
ref: 31
PLATE,FR CHAIN GUIDE
€ 31.00
