CRANKSHAFT
DR250 1990 (L) USA (E03)

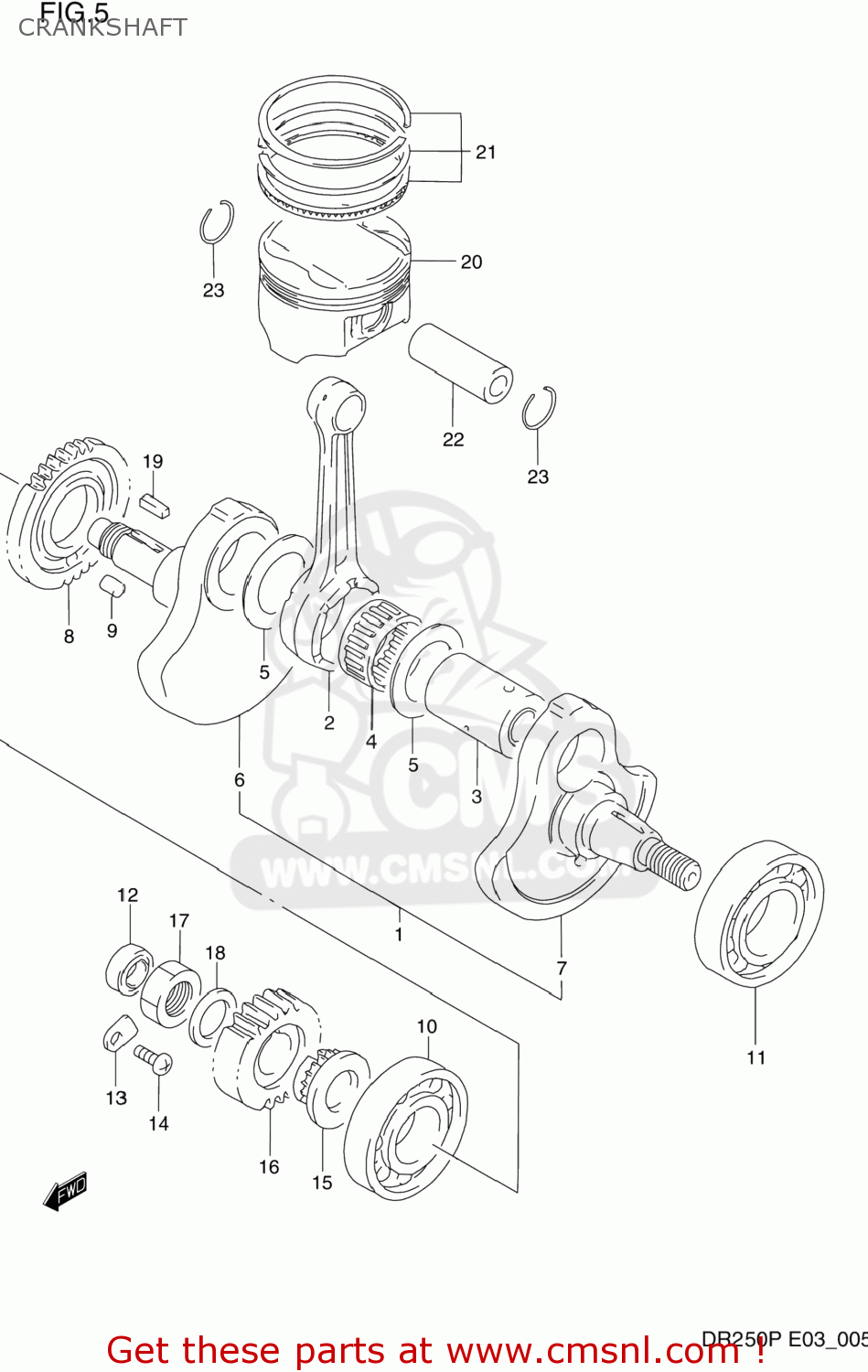

Crankshaft diagram DR250 1990 (L) USA (E03)
CRANKSHAFT DR250 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1220015D00
ref: 1
CRANKSHAFT ASSEMBLY
€ 296.00
2
1216115D00
ref: 2
12161-15D10
CONNECTING ROD
€ 129.00
3
1221014D02
ref: 3
12210-14D03
PIN COMP,CRANK
€ 56.00
4
0926334005
ref: 4
BEARING(34X43X22)
€ 45.50
5
0916034003
ref: 5
WASHER(34X52X1)
€ 6.50
6
1222115D00
ref: 6
12221-15D01
CRANKSHAFT,RIGHT
€ 131.50
7
1226115D00
ref: 7
CRANKSHAFT,LEFT
€ 104.50
8
1266114D00
ref: 8
GEAR,CRANK BAL DRIVE(NT:37)
€ 118.00
9
0422108149
ref: 9
PIN
€ 2.50
10
0926230077
ref: 10
BEARING(30X72X19)
€ 47.50
11
0926235038
ref: 11
BEARING(35X72X17)
€ 38.00
12
0928214003
ref: 12
SEAL,OIL(14X24X6)
€ 8.00
13
2474218A00
ref: 13
RETAINER,BEARING
€ 2.00
14
0211206126
ref: 14
02112-0612A
SCREW
€ 1.50
15
1273114D00
ref: 15
SPROCKET,CAM CHAIN DRIVE
€ 50.00
16
2111114D00
ref: 16
21111-14D01
GEAR,PRIMARY DRIVE
€ 41.00
17
0914018012
ref: 17
NUT
€ 8.00
18
0916418001
ref: 18
WASHER
€ 3.00
19
0942105009
ref: 19
KEY
€ 8.00
20-1
1211115D000F0
ref: 20-1
12111-15D10-0F0
PISTON
€ 87.00
20-2
1211115D00050
ref: 20-2
12100-15D10-050
PISTON
€ 121.00
20-3
1211115D00100
ref: 20-3
12100-15D10-100
PISTON
€ 69.00
20-4
1211115D100F0
ref: 20-4
PISTON (73.00MM)
€ 87.00
20-5
1211115D10050
ref: 20-5
12100-15D10-050
PISTON
€ 121.00
20-6
1211115D10100
ref: 20-6
12100-15D10-100
PISTON
€ 69.00
21-1
1214015D10
ref: 21-1
RING SET,PISTON
€ 73.00
21-2
1214015D10050
ref: 21-2
RING SET,PISTON (OS:0.5)
€ 19.00
21-3
1214015D10100
ref: 21-3
RING SET,PISTON (OS:1.0)
€ 20.00
22
1215117C00
ref: 22
PIN,PISTON
€ 15.50
23
0938119001
ref: 23
RING,SNAP
€ 2.50
