FUEL COCK

DR250 1990 (L) USA (E03)

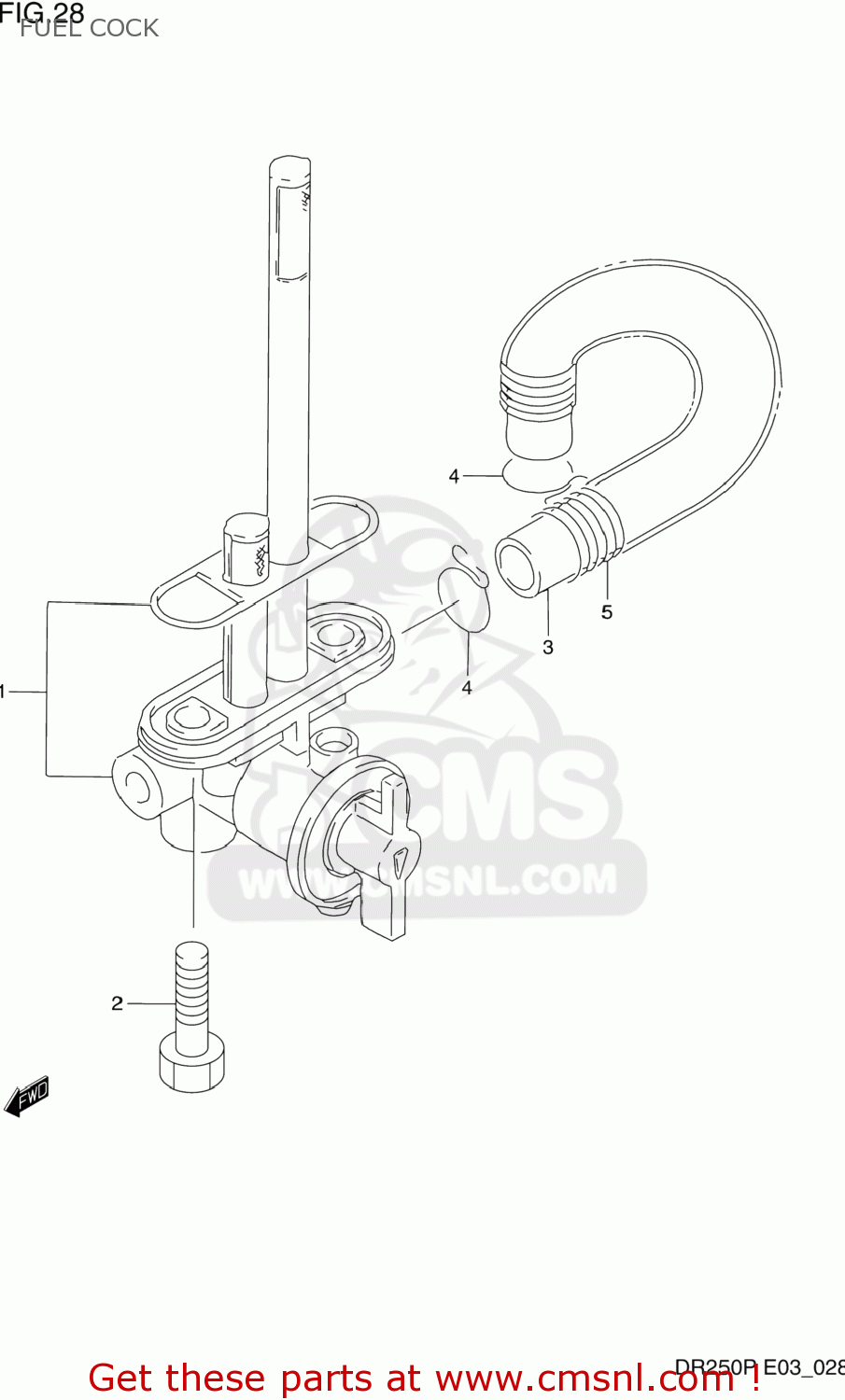

Fuel cock diagram DR250 1990 (L) USA (E03)

FUEL COCK DR250 1990 (L) USA (E03)

FUEL COCK DR250 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4430014D00
ref: 1

COCK ASSY,FUEL

€ 81.00

2

0211236168
ref: 2
02112-36167

SCREW

€ 2.00

3

0935270103300
ref: 3
09352-70103-600

HOSE

€ 8.00

4

0940110401
ref: 4

CLIP

€ 1.50

5

0944013031
ref: 5
09440-13031-XC0

SPRING

€ 2.50
