REAR SWINGING ARM
DR250 1990 (L) USA (E03)

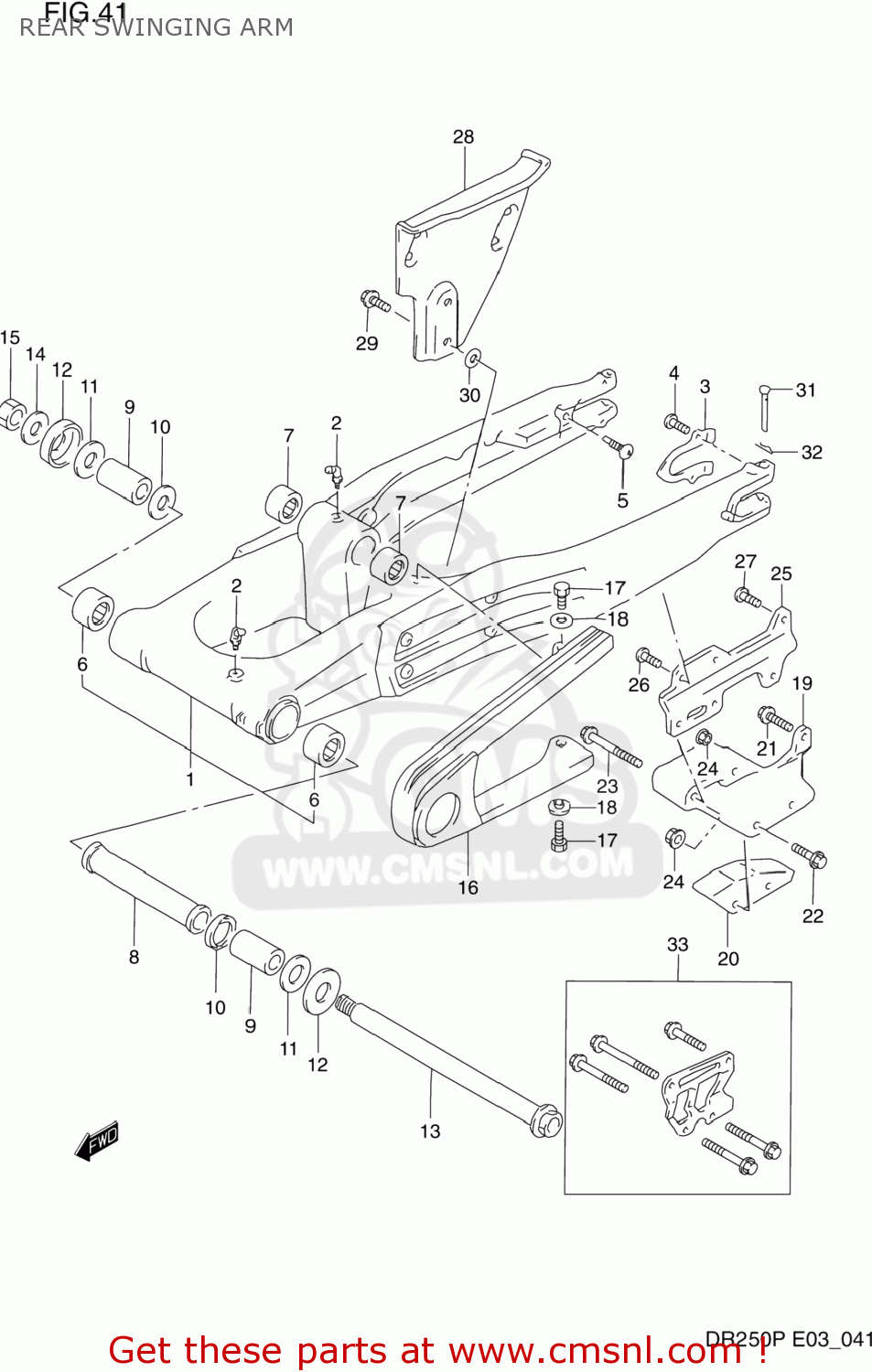

Rear swinging arm diagram DR250 1990 (L) USA (E03)
REAR SWINGING ARM DR250 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100015D01
ref: 1
61000-14D50
SWING ARM ASSEMBLY,REAR
€ 892.50
2
0835131008
ref: 2
08351-3100A
NIPPLE,GREASE
€ 10.50
3
6112814D00
ref: 3
PLATE,SWING ARM RR
€ 8.00
4
0912505072
ref: 4
09125-05072-XC0
SCREW (5X8)
€ 2.50
5
0913910001
ref: 5
SCREW (M10X21)
€ 6.50
6
0926322017
ref: 6
BEARING(22X29X30)
€ 18.50
7
0926320071
ref: 7
BEARING(20X27X23.5)
€ 21.50
8
0918017097
ref: 8
SPACER,SWING ARM PIVOT,CENTER
€ 12.50
9
6125114D00
ref: 9
SPACER,SWGARM PIVOT BRG
€ 11.00
10
0928522001
ref: 10
SEAL,OIL(22X29X4)
€ 5.00
11
0821117341
ref: 11
WASHER
€ 2.00
12
6126228C10
ref: 12
COVER,SWINGINGARM PIVOT
€ 4.50
13
6121114D00
ref: 13
SHAFT,SWINGING ARM PIVOT
€ 49.50
14
0832211168
ref: 14
08322-01167
WASHER
€ 2.00
15
0915916007
ref: 15
NUT
€ 10.50
16
6127314D00
ref: 16
BUFFER,CHAIN TOUCH DEFENSE
€ 34.00
17
0110706167
ref: 17
01500-06167
BOLT
€ 3.00
18
0916906057
ref: 18
WASHER
€ 4.00
19
6134127C00
ref: 19
GUIDE,CHAIN
€ 20.00
20
6134801B30
ref: 20
61348-27C20
DEFENSE,CHAIN GUIDE
€ 26.50
21
0151706257
ref: 21
01550-06257
BOLT 6X25
€ 2.50
22
0151706458
ref: 22
01550-06457
BOLT,UNDER
€ 2.50
23
0151706557
ref: 23
01550-06557
BOLT
€ 2.50
24
0831931067
ref: 24
NUT
€ 2.50
25
6115415D01
ref: 25
BRACKET,CHAIN GUIDE
€ 27.50
26-1
0913906024
ref: 26-1
09139-06067
SCREW
€ 3.00
26-2
0151706167
ref: 26-2
01550-06167
BOLT 6X16
€ 1.50
27-1
0913906062
ref: 27-1
SCREW(6X12)
€ 3.00
27-2
0151706128
ref: 27-2
01550-06127
BOLT
€ 2.50
28
6131014D10
ref: 28
GUARD,CHAIN
€ 35.50
29
0151706163
ref: 29
01550-0616A
BOLT
€ 2.50
30
0916006115
ref: 30
09160-06131
WASHER
€ 2.50
31
0920006065
ref: 31
PIN
€ 4.00
32
0938506012
ref: 32
CLIP
€ 2.00
33
6130014D00
ref: 33
PLATE SET,CHAIN GUIDE
€ 18.50
