STAND - REAR BRAKE
DR250 1990 (L) USA (E03)

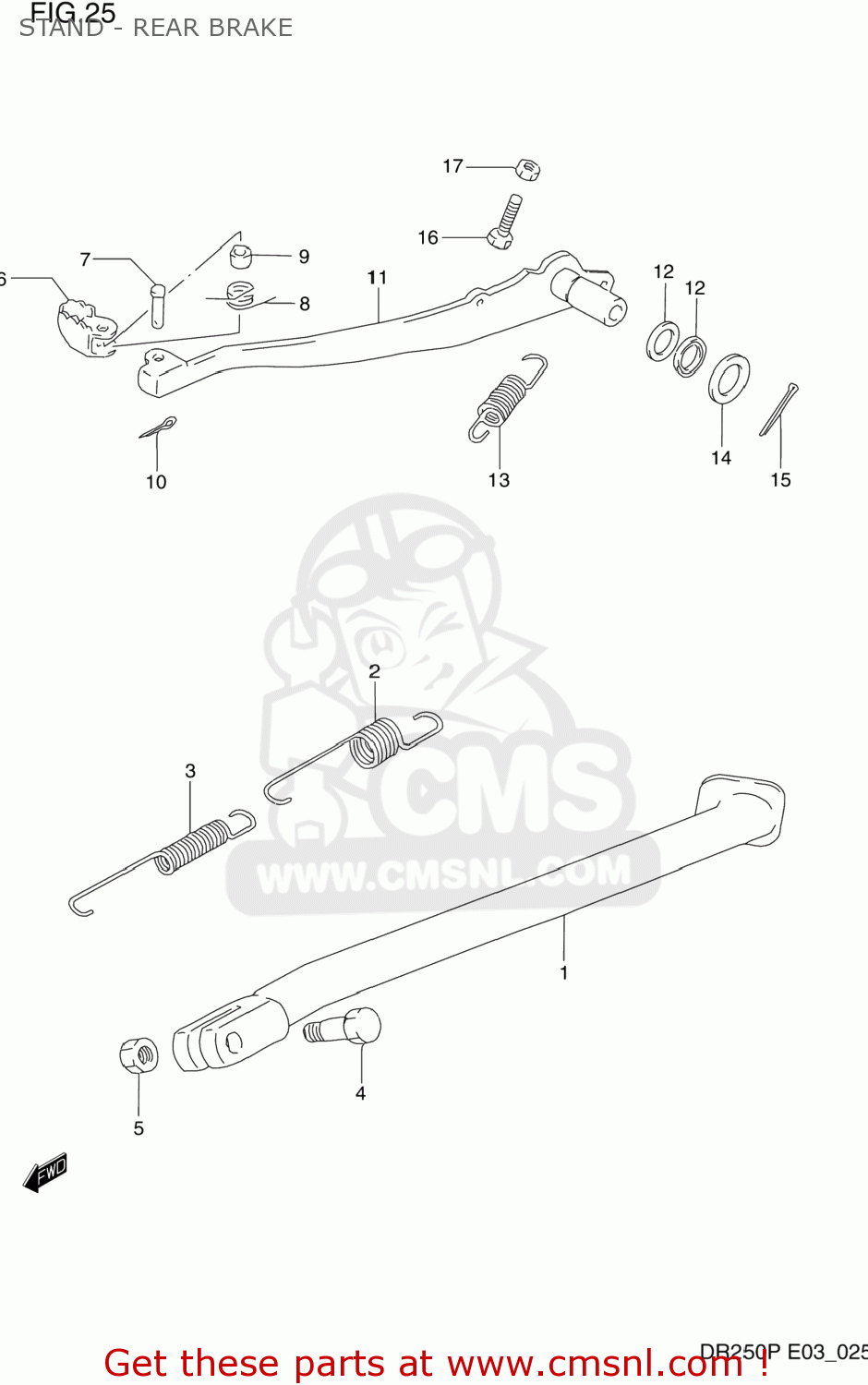

Stand - rear brake diagram DR250 1990 (L) USA (E03)
STAND - REAR BRAKE DR250 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231014D02019
ref: 1-1
42310-14D12-019
STAND,SIDE
€ 209.00
1-2
4231014D04019
ref: 1-2
42310-14D12-019
STAND,SIDE
€ 209.00
2
0944319010
ref: 2
SPRING
€ 6.00
3
0944312036
ref: 3
SPRING
€ 7.50
4
0911110047
ref: 4
BOLT(10X30)
€ 4.50
5
0831022107
ref: 5
08310-00107
NUT
€ 2.50
6
4311014130
ref: 6
PEDAL,BRAKE
€ 6.00
7
0920006038
ref: 7
PIN
€ 2.00
8
0944411004
ref: 8
09444-11005
SPRING
€ 3.00
9
0918006137
ref: 9
SPACER(9.2X9X6.5)
€ 2.50
10
0411120158
ref: 10
04111-2015A
PIN
€ 1.50
11
4312015D00
ref: 11
ARM,BRAKE PEDAL
€ 54.00
12
0928415006
ref: 12
SEAL,OIL(15X21X3)
€ 3.50
13
0944314025
ref: 13
SPRING
€ 6.50
14
0916015002
ref: 14
WASHER(15.5X26X2.3)
€ 2.00
15
0411130308
ref: 15
04111-3030A
COTTER PIN
€ 1.50
16
0910006009
ref: 16
BOLT(6X23)
€ 1.50
17
0831011067
ref: 17
08310-00067
NUT 6MM
€ 2.50
