OIL PUMP
DR250 1990 (L) USA (E03)

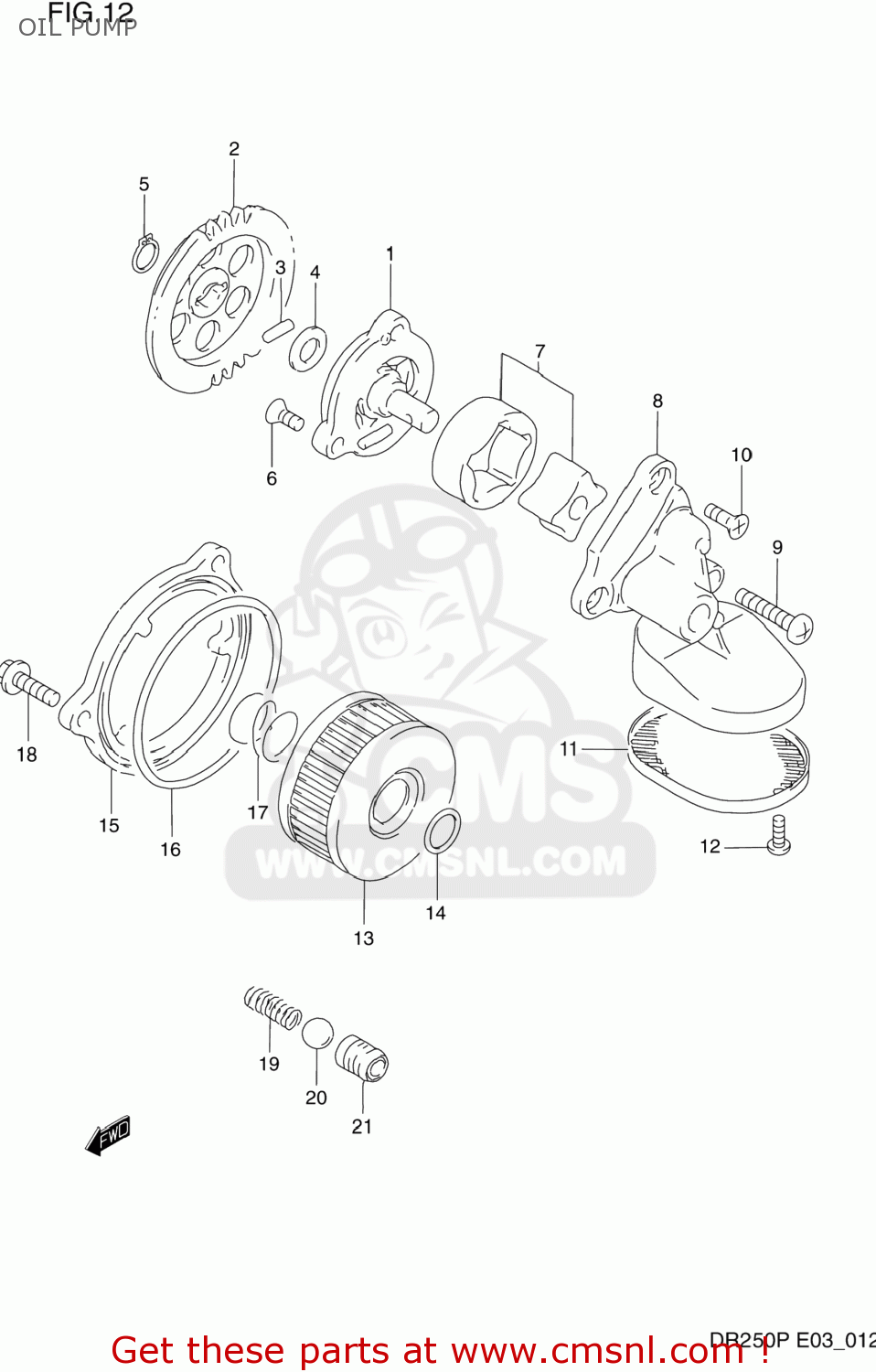

Oil pump diagram DR250 1990 (L) USA (E03)
OIL PUMP DR250 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640014D01
ref: 1
PUMP ASSY,ENGINE OIL NO.1
€ 164.50
2-1
1633114D00
ref: 2-1
16331-14D02
GEAR,OIL PUMP DRIVEN
€ 30.00
2-2
1633114D01
ref: 2-2
16331-14D02
GEAR,OIL PUMP DRIVEN (N
€ 30.00
3
0926104009
ref: 3
PIN(4X15.8)
€ 1.50
4
0822110185
ref: 4
SHIM
€ 2.00
5
0833131106
ref: 5
08331-3110A
CIRCLIP,10MM
€ 2.00
6
0212206166
ref: 6
02122-0616A
SCREW M6X1X16
€ 2.00
7
1641014D00
ref: 7
ROTOR SET,OIL PUMP,NO.2
€ 45.00
8
1643114D01
ref: 8
COVER,OIL PUMP NO.2
€ 73.50
9
0211206306
ref: 9
02112-0630A
SCREW,6X30
€ 2.50
10
0212206166
ref: 10
02122-0616A
SCREW M6X1X16
€ 2.00
11
1652014D00
ref: 11
STRAINER,OIL PUMP NO.2
€ 11.00
12
0211205106
ref: 12
02112-0510A
SCREW 5X10
€ 2.00
13
1651038240
ref: 13
FILTER ASSY,ENGINE OIL
€ 7.50
14
0928016005
ref: 14
O RING(D:2.4,ID:15.8)
€ 1.50
15
1651214D00
ref: 15
CAP,OIL FILTER
€ 23.50
16
0928072001
ref: 16
O RING(D:2.4,ID:73)
€ 5.00
17
0944021004
ref: 17
SPRING
€ 13.00
18
0154706207
ref: 18
BOLT
€ 2.50
19
0944007073
ref: 19
SPRING
€ 4.00
20
0611112004
ref: 20
BALL
€ 1.50
21
1644214D00
ref: 21
SEAT,OIL CHECK VALVE
€ 28.50
