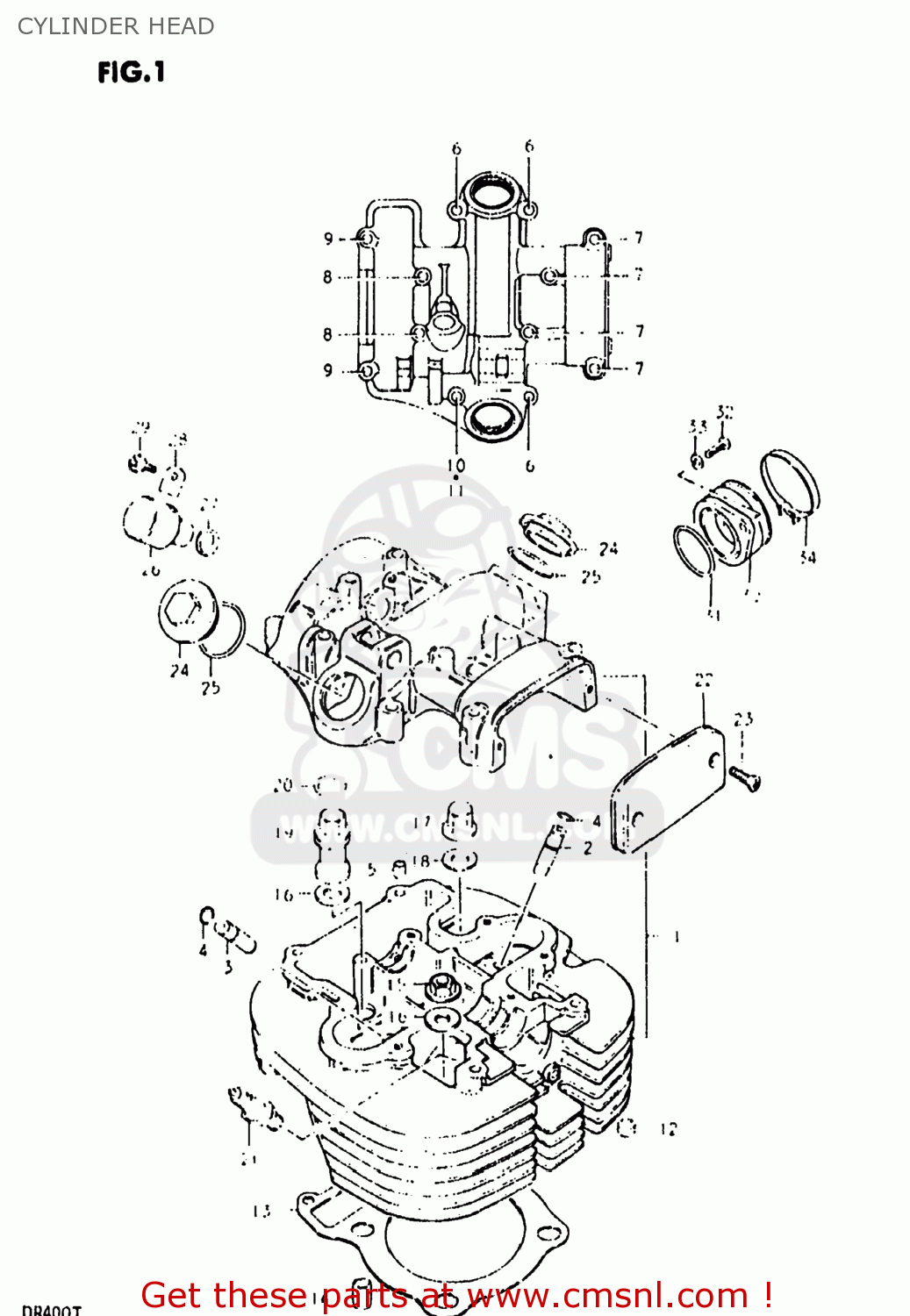

CYLINDER HEAD

ref

part #

description

quantity

1

1110037830
ref: 1
11100-37832

HEAD ASSEMBLY,CYLINDER

€ 238.50

2

1111545740
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

1111645740
ref: 3

GUIDE,EXHAUST VALVE

€ 27.00

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

0151706358
ref: 6
01550-06357

BOLT 6X35

€ 2.50

7

0151706508
ref: 7
01550-06507

BOLT ,6X50

€ 2.00

8

0151706658
ref: 8
01550-06657

BOLT 6X65

€ 3.00

9

0910306033
ref: 9

BOLT(6X125)

€ 3.50

10

0910306021
ref: 10
01550-06607

BOLT

€ 2.00

11

0916806009
ref: 11
09168-06023

GASKET (NAS)

€ 2.00

12

1125228000
ref: 12
11252-13630

PAD,CYLINDER

€ 2.00

13

1114137101
ref: 13

GASKET,CYLINDER HEAD (NAS)

€ 65.00

14

0920613001
ref: 14
04211-13189

PIN

€ 2.50

15

0915910016
ref: 15

NUT

€ 1.50

16

0916010039
ref: 16

WASHER(10.5X22X2.3)

€ 2.50

17

0915910026
ref: 17

NUT

€ 6.00

18

0916810017
ref: 18

GASKET(10.5X22X2) (NAS)

€ 3.50

19

1114532400
ref: 19

NUT,CYLINDER HEAD SEAL

€ 16.50

20

0928018004
ref: 20

O RING(D:2.4,ID:17.8)

€ 5.50

21-1

0948200144
ref: 21-1

SPARK PLUG D8EA

€ 3.50

21-2

0948200145
ref: 21-2
09482-00223

SPARK PLUG X24ES-U

€ 3.50

22

1117432410
ref: 22

CAP,CYLINDER HEAD COVER

€ 7.00

23

0213205168
ref: 23
02122-05167

SCREW

€ 2.00

24

1117532400
ref: 24
11175-42A00

CAP,INSPECTION

€ 9.50

25

0928030001
ref: 25

O RING(D:3,ID:29.5)

€ 2.00

26

2644245002
ref: 26

PLUG

€ 0.00

27

2645145000A
ref: 27

SEAL,TACHOMETER DRIVEN

€ 4.50

28

2644933000
ref: 28

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

29

0912805101
ref: 29

SCREW(5X12)

€ 1.50

30

1311032410
ref: 30

PIPE,INTAKE

€ 34.50

31

0928040003
ref: 31
09280-40010

O-RING (D:2.4 ID:39.7)

€ 3.50

32

0211206168
ref: 32
02112-06167

SCREW

€ 2.50

33

0832121068
ref: 33
08321-01067

LOCK WASHER

€ 2.50

34

0940254303
ref: 34

CLAMP

€ 4.00
