SEAT - FRAME COVER
DR400 1980 (T) USA (E03)

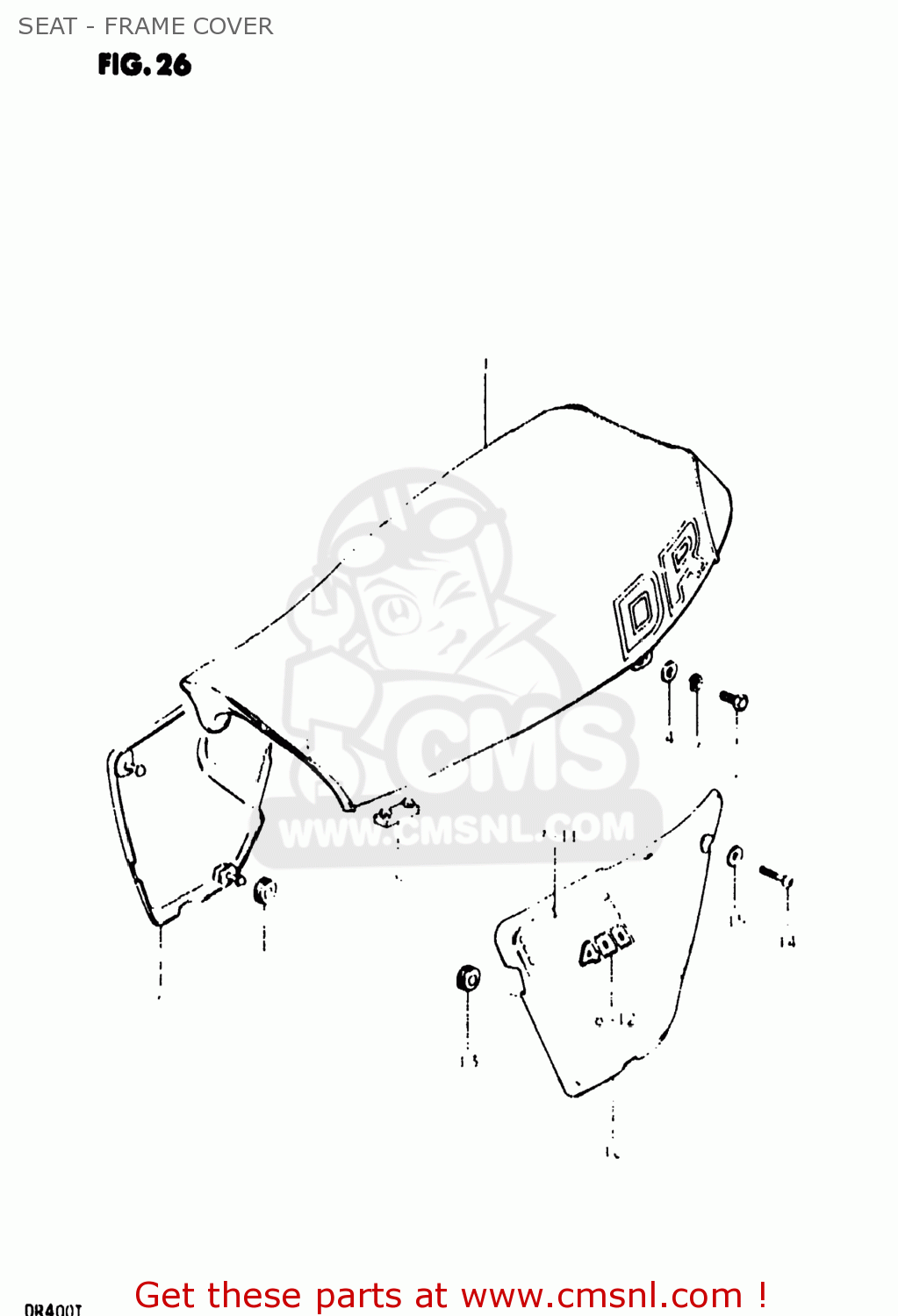

Seat - frame cover diagram DR400 1980 (T) USA (E03)
SEAT - FRAME COVER DR400 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510037201865
ref: 1
45100-37201-48F
SEAT ASSEMBLY
€ 82.00
2
0110708168
ref: 2
01500-0816B
BOLT
€ 2.00
3
0832121088
ref: 3
08321-01087
LOCK WASHER
€ 2.00
4
0832211088
ref: 4
08322-01087
WASHER
€ 2.00
5
0932108009
ref: 5
CUSHION
€ 4.00
6
471113720010V
ref: 6
47111-37200
COVER,FRAME,RIGHT
€ 41.00
7
681363720067H
ref: 7
TAPE,FRAME COVER,RIGHT STRIPE
€ 6.50
8
681313720060K
ref: 8
EMBLEM
€ 3.50
9
0932008018
ref: 9
CUSHION
€ 4.00
10
472113720010V
ref: 10
47211-37200
COVER,FRAME,LEFT
€ 41.00
11
681463720067H
ref: 11
TAPE,FRAME COVER
€ 5.50
12
681413720060K
ref: 12
EMBLEM (400)
€ 0.00
13
0932008018
ref: 13
CUSHION
€ 4.00
14
0214206308
ref: 14
02142-06307
SCREW
€ 2.00
15
0916006007
ref: 15
09160-06084
WASHER
€ 2.00
