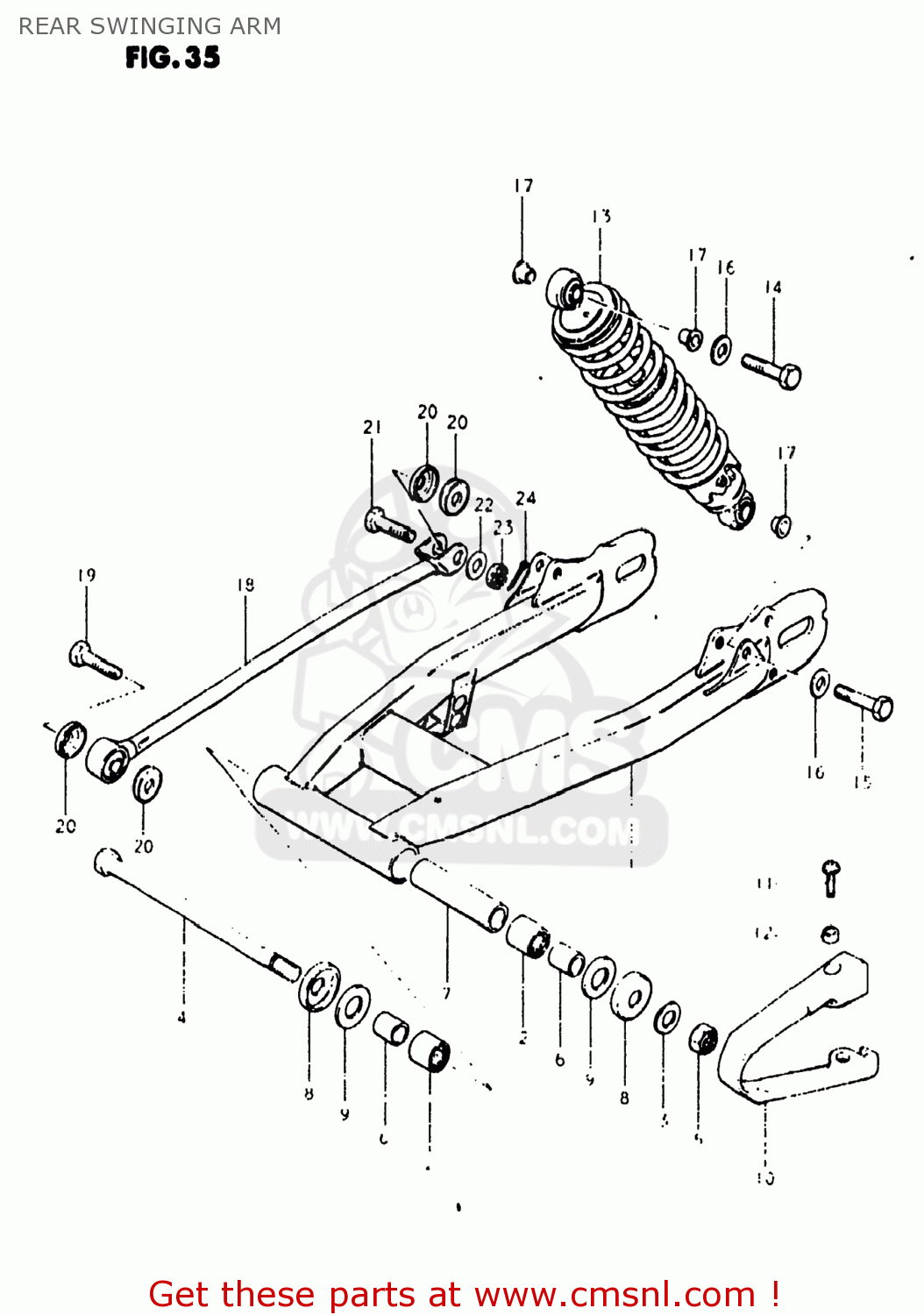

REAR SWINGING ARM

ref

part #

description

quantity

1

611003783008C
ref: 1
61100-37831-08C

SWING ARM ASSEMBLY,REAR

€ 121.50

2

0926322022
ref: 2

BEARING(22X29X20)

€ 27.00

3

0832211168
ref: 3
08322-01167

WASHER

€ 2.00

4

6121137200
ref: 4
61211-37201

SHAFT,REAR SWING ARM

€ 33.00

5

0831921168
ref: 5
08319-2116A

NUT 16MM

€ 5.00

6

6125132410
ref: 6

SPACER,RR SWGARM PIVOT

€ 8.50

7

0918016018
ref: 7

SPACER (16.2X21.7X142)

€ 12.50

8

6126232410
ref: 8

COVER,RR SWGARM DUST SEAL

€ 10.00

9

0821116341
ref: 9

WASHER

€ 2.00

10

6127337201
ref: 10
61273-37202

BUFFER,CHAIN TOUCH DEFLECTOR

€ 15.00

11

6127540200
ref: 11

SCREW,CHAIN TOUCH DEFEND

€ 1.50

12

0918005015
ref: 12
09180-05046

SPACER (5.5X8X4)

€ 3.00

13

6210037200
ref: 13

ABSORBER ASSEMBLY,REAR SHOCK

€ 127.00

14

0910008150
ref: 14

BOLT

€ 2.00

15

0910008165
ref: 15
09103-08178

BOLT

€ 5.00

16

0832211088
ref: 16
08322-01087

WASHER

€ 2.00

17

6231640200
ref: 17

SPACER,RR SHK ABS INNER

€ 7.50

18

643103720008C
ref: 18
64310-37201-08C

TORQUE LINK,REAR

€ 45.00

19

0910008140
ref: 19

BOLT(8X25)

€ 2.00

20

6433940400
ref: 20
64339-40401

6433940400

21

0910108003
ref: 21

BOLT 8X28

€ 2.00

22

0832211088
ref: 22
08322-01087

WASHER

€ 2.00

23

0831441088
ref: 23
08314-4008B

NUT 8MM

€ 2.50

24

0411120208
ref: 24
04111-2020A

PIN 20X20

€ 1.50
