SECOND MUFFLER
DR400 1980 (T) USA (E03)

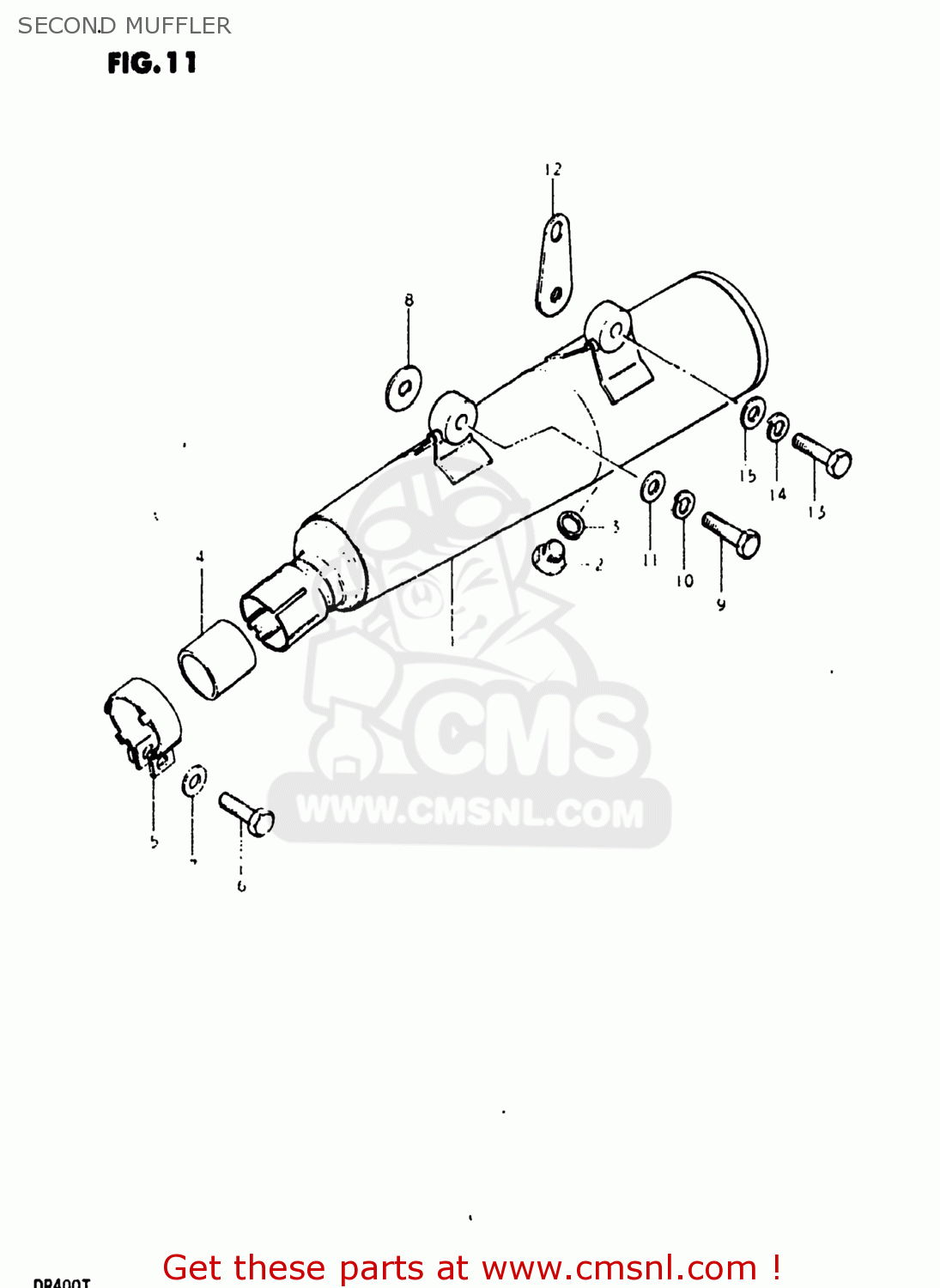

Second muffler diagram DR400 1980 (T) USA (E03)
SECOND MUFFLER DR400 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1430337200
ref: 1
MUFFLER ASSEMBLY
€ 69.50
2
0924712103
ref: 2
PLUG(12X9)
€ 3.50
3
0916812003
ref: 3
GASKET(12X16X2) (NAS)
€ 2.00
4
1477132400
ref: 4
14771-38200-H17
CONNECTOR,MUFFLER
€ 56.50
5
1446932400
ref: 5
CLAMP,MUFFLER CONNECTOR
€ 9.00
6
0910008143
ref: 6
BOLT(8X14)
€ 2.50
7
0832211088
ref: 7
08322-01087
WASHER
€ 2.00
8
0916008002
ref: 8
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
9
0110708358
ref: 9
01500-0835B
BOLT
€ 3.50
10
0832121088
ref: 10
08321-01087
LOCK WASHER
€ 2.00
11
0832221088
ref: 11
08322-01087
WASHER
€ 2.00
12
1447037200
ref: 12
BRACE,MUFFLER
€ 4.00
13
0110708358
ref: 13
01500-0835B
BOLT
€ 3.50
14
0832121088
ref: 14
08321-01087
LOCK WASHER
€ 2.00
15
0832221088
ref: 15
08322-01087
WASHER
€ 2.00
