OIL PUMP

DR400 1980 (T) USA (E03)

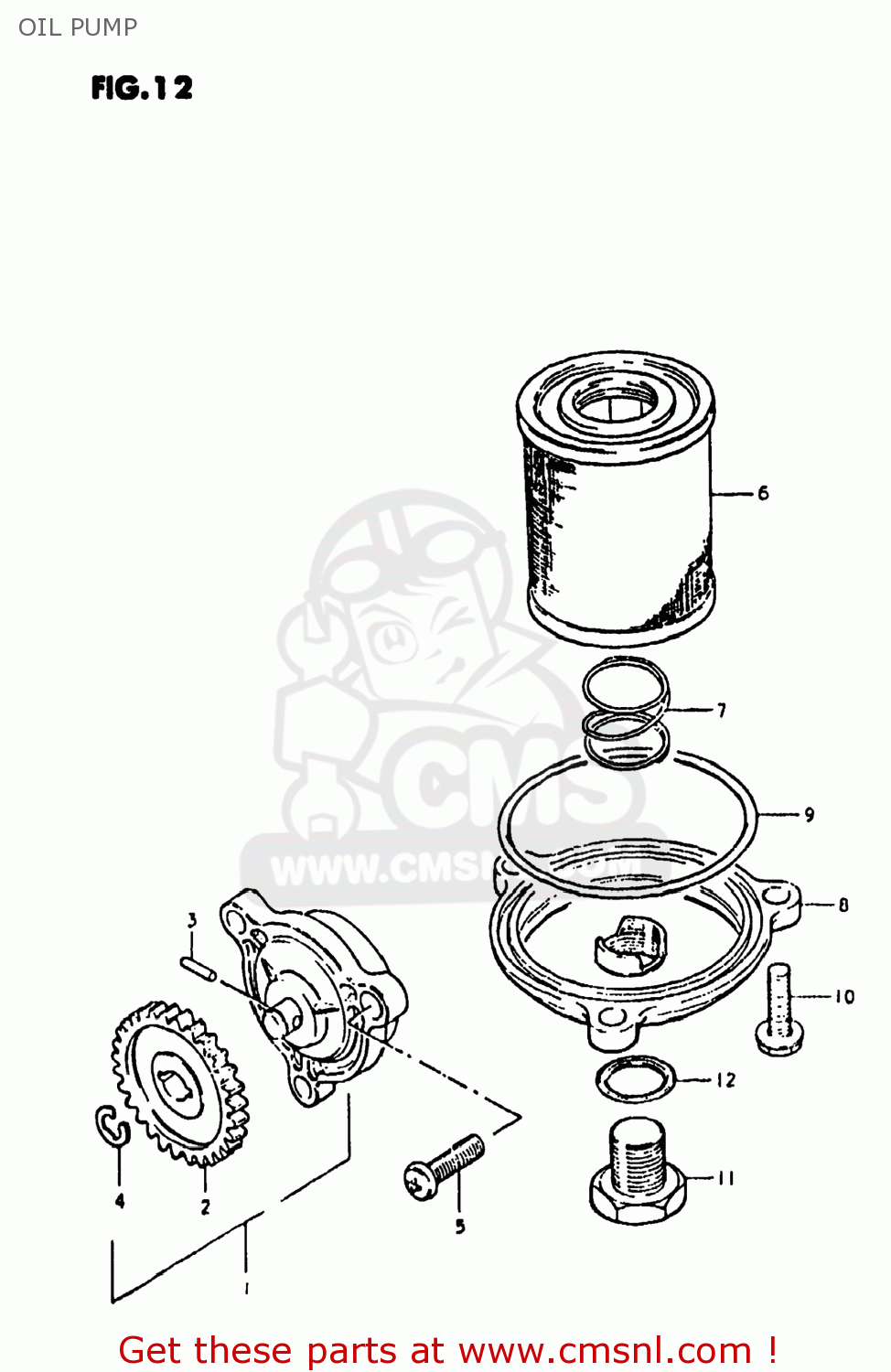

Oil pump diagram DR400 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1640032400
ref: 1

PUMP ASSEMBLY,ENGINE OIL

€ 109.50

1633132400
ref: 2

GEAR,OIL PUMP DRIVEN

€ 19.00

0926102008
ref: 3

PIN(2.5X11.8)

€ 1.50

0833211068
ref: 4
08332-1106A

E RING 6MM

€ 2.00

0211206208
ref: 5
02112-06207

SCREW

€ 2.00

1652032430
ref: 6

STRAINER,OIL

€ 49.00

0944021004
ref: 7

SPRING

€ 13.00

1652332400
ref: 8

CAP,ENGINE OIL STRAINER

€ 22.50

0928063004
ref: 9

O RING(D:2.4,ID:62.6)

€ 9.50

0151706208
ref: 10
01550-06207

BOLT,REAR

€ 2.50

0924714001
ref: 11
09247-14002

PLUG

€ 5.00

0916814004
ref: 12

GASKET(14X19.2X2) (NAS)

€ 2.50
