TRANSMISSION
DR400 1980 (T) USA (E03)

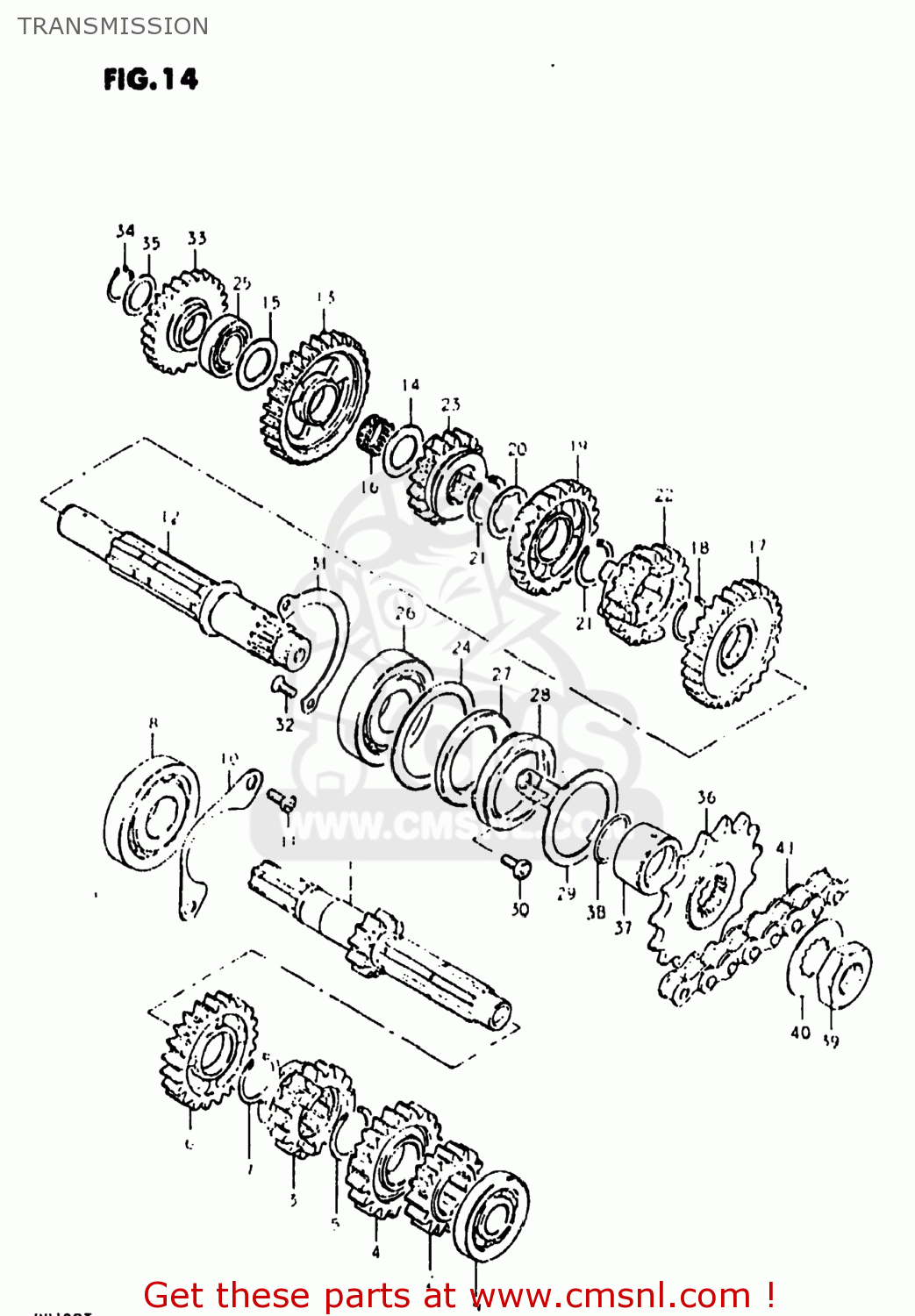

Transmission diagram DR400 1980 (T) USA (E03)
TRANSMISSION DR400 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412032410
ref: 1
SHAFT,COUNTER
€ 138.50
2
2422132410
ref: 2
24221-32412
GEAR,SECOND DRIVE
€ 89.50
3
2423132401
ref: 3
GEAR,THIRD DRIVE
€ 64.00
4
2424137100
ref: 4
GEAR,FOURTH DRIVE
€ 56.50
5
0938022006
ref: 5
CIRCLIP
€ 3.00
6
2425132401
ref: 6
24251-32420
GEAR,FIFTH DRIVE
€ 82.50
7
0938022006
ref: 7
CIRCLIP
€ 3.00
8
0926222014
ref: 8
09262-22028
BEARING
€ 59.50
9
0926217018
ref: 9
09262-17027
BEARING
€ 25.00
10
2474132400
ref: 10
PLATE,COUNTERSHAFT BEARING
€ 9.50
11
0211206128
ref: 11
02112-06127
SCREW 6X12
€ 2.00
12
2413032403
ref: 12
SHAFT,DRIVE
€ 100.50
13
2431132410
ref: 13
24311-32411
GEAR,FIRST DRIVEN
€ 64.50
14
0821117281
ref: 14
09181-17195
WASHER
€ 3.00
15
0821117363
ref: 15
WASHER
€ 2.00
16
0926317004
ref: 16
BEARING(17X21X9.8)
€ 7.00
17
2432032410
ref: 17
24320-32411
GEAR,SECOND DRIVEN
€ 87.50
18
0938022006
ref: 18
CIRCLIP
€ 3.00
19
2433032400
ref: 19
GEAR,THIRD DRIVEN
€ 60.00
20
0916722011
ref: 20
WASHER,LOCK
€ 3.00
21
0938022006
ref: 21
CIRCLIP
€ 3.00
22
2434137100
ref: 22
GEAR,FOURTH DRIVEN
€ 22.00
23
2435132400
ref: 23
GEAR,FIFTH DRIVEN
€ 60.00
24
0916040003
ref: 24
WASHER
€ 1.50
25
0926417001
ref: 25
BEARING(17X36X12)
€ 27.00
26
0926222013
ref: 26
BEARING(22X56X16)
€ 58.00
27
0928230002
ref: 27
OIL SEAL (30X47X5)
€ 17.00
28
0928330025
ref: 28
SEAL,OIL(30X47X7)
€ 14.00
29
2475132400
ref: 29
PLATE,DRIVESHAFT OIL
€ 3.00
30
0211206128
ref: 30
02112-06127
SCREW 6X12
€ 2.00
31
2475232400
ref: 31
RETAINER,DRIVE SHAFT BEARING
€ 3.50
32
0212206128
ref: 32
02122-06127
SCREW
€ 3.00
33
2626032404
ref: 33
GEAR,KICK STARTER IDLER(NT:25)
€ 58.50
34
0938017001
ref: 34
CIRCLIP
€ 2.00
35
0821117241
ref: 35
WASHER
€ 2.00
36
2751137200
ref: 36
SPROCKET,ENGINE(NT:16)
€ 27.50
37
2753132400
ref: 37
SPACER,ENGINE SPROCKET
€ 14.50
38
0928021008
ref: 38
O RING(D:2.5,ID:21)
€ 2.00
39
0914018006
ref: 39
NUT
€ 4.50
40
0916722012
ref: 40
WASHER,LOCK
€ 1.50
41
2760040940
ref: 41
27600-43D02-114
CHAIN ASSEMBLY,DRIVE
€ 72.50
