FOOTREST

DR400 1980 (T) USA (E03)

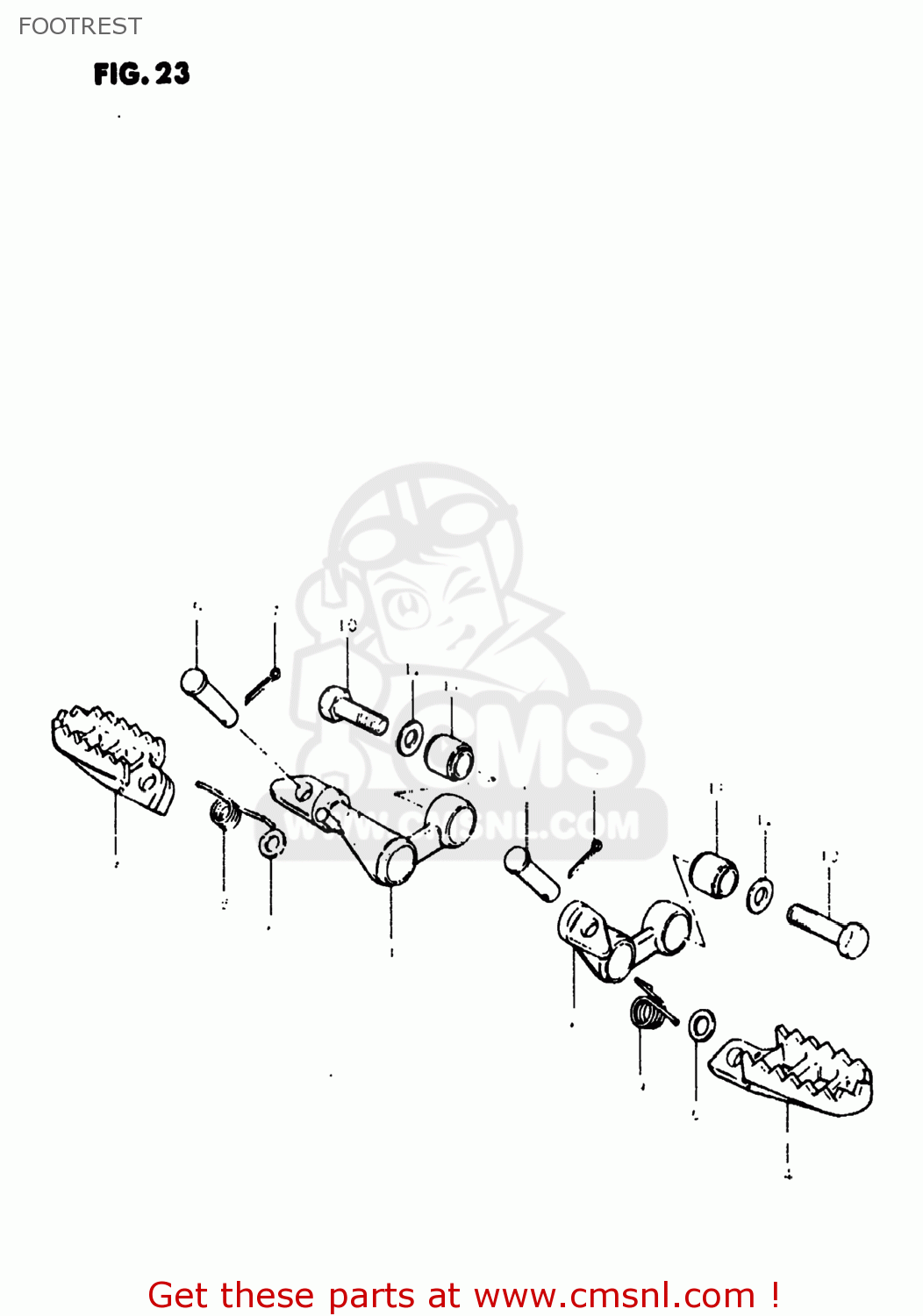

Footrest diagram DR400 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

4351037200
ref: 1
43510-37201

BAR,FRONT FOOTREST

€ 26.00

4352037200
ref: 2
43520-37201

BAR,FRONT FOOTREST,LEFT

€ 27.50

4355137200
ref: 3
43551-37202-019

FOOTREST,RIGHT

€ 31.00

4356140400
ref: 4
43561-40401-019

FOOTREST

€ 24.50

0920008035
ref: 5
09200-08064

PIN

€ 6.50

0832221088
ref: 6
08322-01087

WASHER

€ 2.00

0411130208
ref: 7
04111-3020A

PIN 30X20

€ 1.50

0944814016
ref: 8

SPRING

€ 3.50

0944814017
ref: 9

SPRING

€ 4.50

0910010117
ref: 10
09100-10184

BOLT

€ 2.50

0931910008
ref: 11

BUSH

€ 8.00

0916010013
ref: 12
09160-10123

WASHER (10.1X21X2.3)

€ 2.00
