REAR WHEEL
DR400 1980 (T) USA (E03)

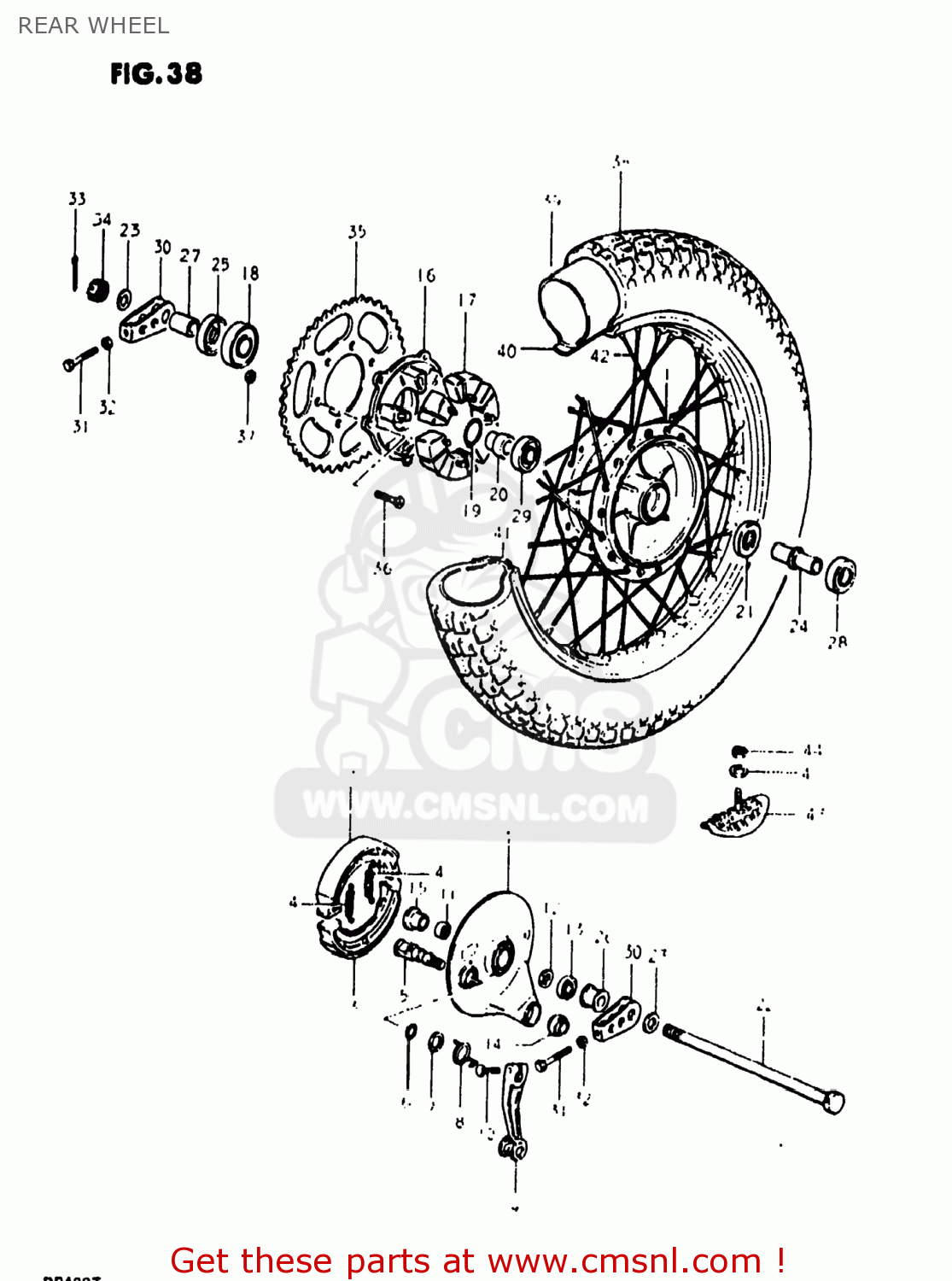

Rear wheel diagram DR400 1980 (T) USA (E03)
REAR WHEEL DR400 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411037200
ref: 1
DRUM,REAR HUB
€ 234.00
2
6421037200
ref: 2
PANEL,REAR HUB
€ 129.50
3
5441032400
ref: 3
64400-02830
SHOE,BRAKE (MCA)
€ 35.00
4
5542041100
ref: 4
SPRING
€ 5.50
5
5444008003
ref: 5
54440-08004
CAM,FRONT BRAKE
€ 19.00
6
0928015001
ref: 6
09280-15003
O-RING,BOSS
€ 2.00
7
0916015001
ref: 7
09160-15048
WASHER (15X24X1.6)
€ 2.50
8
0944833006
ref: 8
SPRING
€ 11.00
9
6445137200
ref: 9
LEVER,REAR BRAKE CAM
€ 18.00
10
0110706258
ref: 10
01500-06257
BOLT
€ 2.00
11
0926324013
ref: 11
BEARING(24X31X28)
€ 25.00
12
0821117361
ref: 12
WASHER
€ 2.00
13
6484537200
ref: 13
CVR,RR BRAKE AHR PNL DUST SEAL
€ 12.00
14
6435240400
ref: 14
64352-40401
SPHERICAL BEARING,TORQUE
€ 69.50
15
6421337200
ref: 15
SPACER,REAR HUB PANEL
€ 25.00
16
6461137200
ref: 16
DRUM,REAR SPROCKET MOUNT
€ 150.50
17
6465137200
ref: 17
ABSORBER,RR HUB SHOCK
€ 10.00
18
0811362057
ref: 18
BEARING
€ 18.00
19
0928058001
ref: 19
09280-58003
O-RING
€ 3.00
20
6473337200
ref: 20
SPACER,REAR SPROCKET DRUM
€ 13.00
21
0928555002
ref: 21
OIL SEAL
€ 9.00
22
6471133000
ref: 22
64711-3300V
AXLE,REAR
€ 33.50
23
0832211168
ref: 23
08322-01167
WASHER
€ 2.00
24
6473037200
ref: 24
SPACER,REAR HUB BEARING
€ 13.00
25
0928530001
ref: 25
SEAL,OIL(30.5X52X8)
€ 20.00
26
6474137200
ref: 26
SPACER,REAR AXLE,RIGHT
€ 17.00
27
0918017055
ref: 27
SPACER(17X30.5X16.3)
€ 8.00
28
0814362037
ref: 28
BEARING
€ 18.50
29
0814363037
ref: 29
BEARING
€ 23.00
30
6141037200
ref: 30
ADJUSTER,CHAIN
€ 7.50
31
0910408006
ref: 31
09104-08034
BOLT
€ 3.00
32
0831012088
ref: 32
08310-00087
NUT
€ 2.00
33
0411140308
ref: 33
04111-4030A
PIN,COTTER
€ 1.50
34
0914116001
ref: 34
NUT
€ 6.50
35
6451141511
ref: 35
SPROCKET,REAR (NT:46)(AL)
€ 152.00
36
0912008004
ref: 36
SCREW(8X33.5)
€ 3.00
37
0831931088
ref: 37
08319-3108A
NUT
€ 2.50
38
6510037200
ref: 38
TIRE
€ 59.50
39
6520041110
ref: 39
65200-16510
TUBE ASSEMBLY,WHEEL,INNER
€ 16.00
40
6526116510
ref: 40
65261-33030
PROTECTOR,WHEEL,INNER
€ 5.50
41
6531137200
ref: 41
RIM,REAR WHEEL
€ 85.00
42
6532037200
ref: 42
65320-37201
SPOKE SET,REAR WHEEL
€ 79.00
43
6527032101
ref: 43
65270-28E00
STOPPER,BEAD
€ 38.00
44
0831012088
ref: 44
08310-00087
NUT
€ 2.00
45
0832211088
ref: 45
08322-01087
WASHER
€ 2.00
