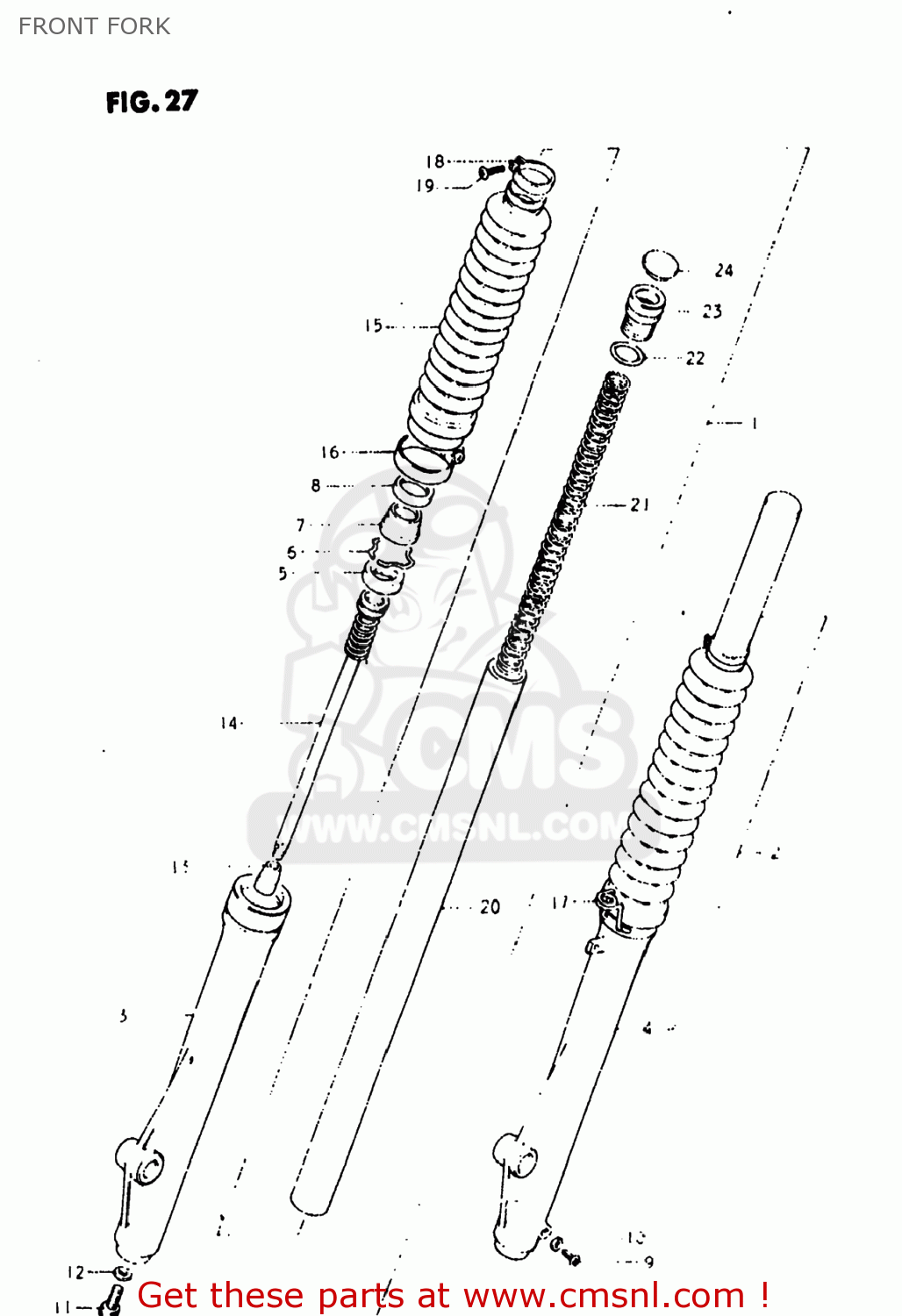

FRONT FORK

ref

part #

description

quantity

1

5110337200
ref: 1

DAMPER ASSEMBLY,RIGHT

€ 126.00

2

5110437200
ref: 2

DAMPER ASSEMBLY,LEFT

€ 126.00

3

5113037200
ref: 3
51130-37400

TUBE,OUTER,RIGHT

€ 90.50

4

5114037200
ref: 4
51140-37400

TUBE,OUTER,LEFT

€ 86.00

5

5115341211
ref: 5
51153-16730

OIL SEAL,FRONT FORK

€ 28.50

6

5115630400
ref: 6

5115630400

7

5117340500
ref: 7

SEAL,DUST

€ 9.00

8

5114940500
ref: 8

CASE,DUST SEAL

€ 7.50

9

0211204088
ref: 9
02112-04087

SCREW

€ 1.50

10

5118303010
ref: 10

GASKET,DRAIN,PLUG (NAS)

€ 3.00

11

5114716510
ref: 11

BOLT,FORK CYLINDER(10X25)

€ 3.50

12

5114841310
ref: 12

GASKET (NAS)

€ 2.50

13

5119541210
ref: 13
51195-49071

PIECE,OIL LOCK

€ 12.00

14

5114637200
ref: 14

CYLINDER,FRONT FORK

€ 23.00

15

5157141211
ref: 15
51571-38265-38K

BOOT

€ 38.00

16

5157341410
ref: 16

BAND,FRONT FORK COVER

€ 10.00

17

5157337200
ref: 17

BAND,FRONT FORK COVER

€ 0.00

18

5157541410
ref: 18

BAND,BOOT

€ 8.00

19

0211204168
ref: 19
02112-0416A

SCREW

€ 1.00

20

5111037200
ref: 20

TUBE,FORK,INNER

€ 96.00

21

5117137200
ref: 21

SPRING,FRONT FORK

€ 13.50

22

5111716310
ref: 22

O RING

€ 4.50

23

5135130520
ref: 23

CAP,FORK INNER TUBE

€ 9.00

24

5118932400
ref: 24
51189-30520

CAP,FRONT FORK

€ 11.50

all assemblies
