BATTERY

DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

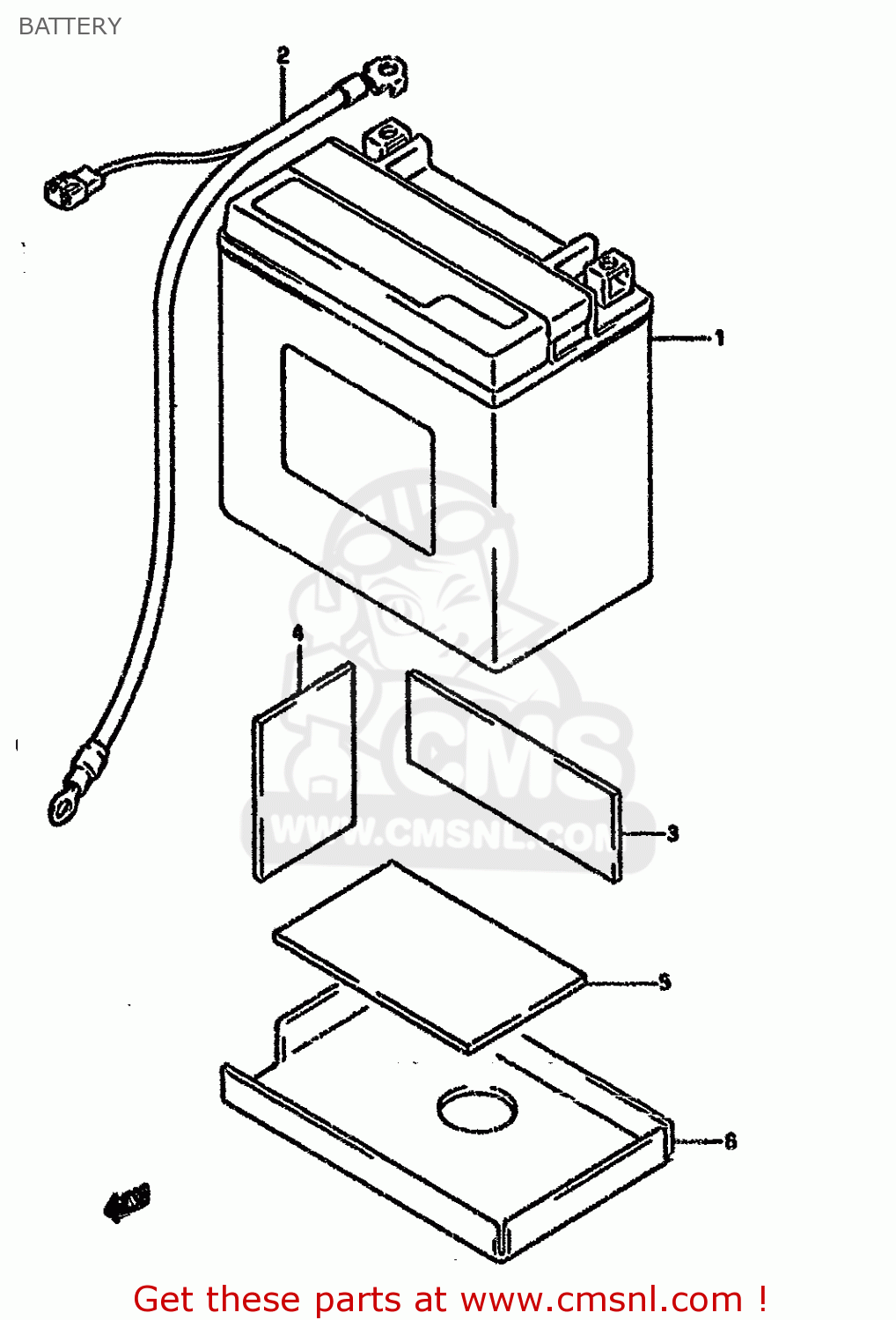

Battery diagram DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

prices are in EUR

ref

part #

description

quantity

1-1

3361026D10
ref: 1-1

BATTERY ASSY (12V) YTX14-BS

€ 116.50

1-2

3361026D00
ref: 1-2
MODEL M/N:E24

BATTERY ASSY (YTX14-BS,12V12AH)

€ 116.50

3386012D00
ref: 2

LEAD WIRE,BATTERY (-)

€ 17.50

3365229100
ref: 3
-33651-37000

PROTECTOR,20X9

€ 5.00

3365208410
ref: 4
-33651-37000

PROTECTOR,BATTERY

€ 5.00

3365137000
ref: 5
CUT 60X130

PROTECTOR(170X95X3.0)

€ 5.00

3365212D00
ref: 6

PROTECTOR,BATTERY

€ 13.00
