HANDLE SWITCH (MODEL T)

DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

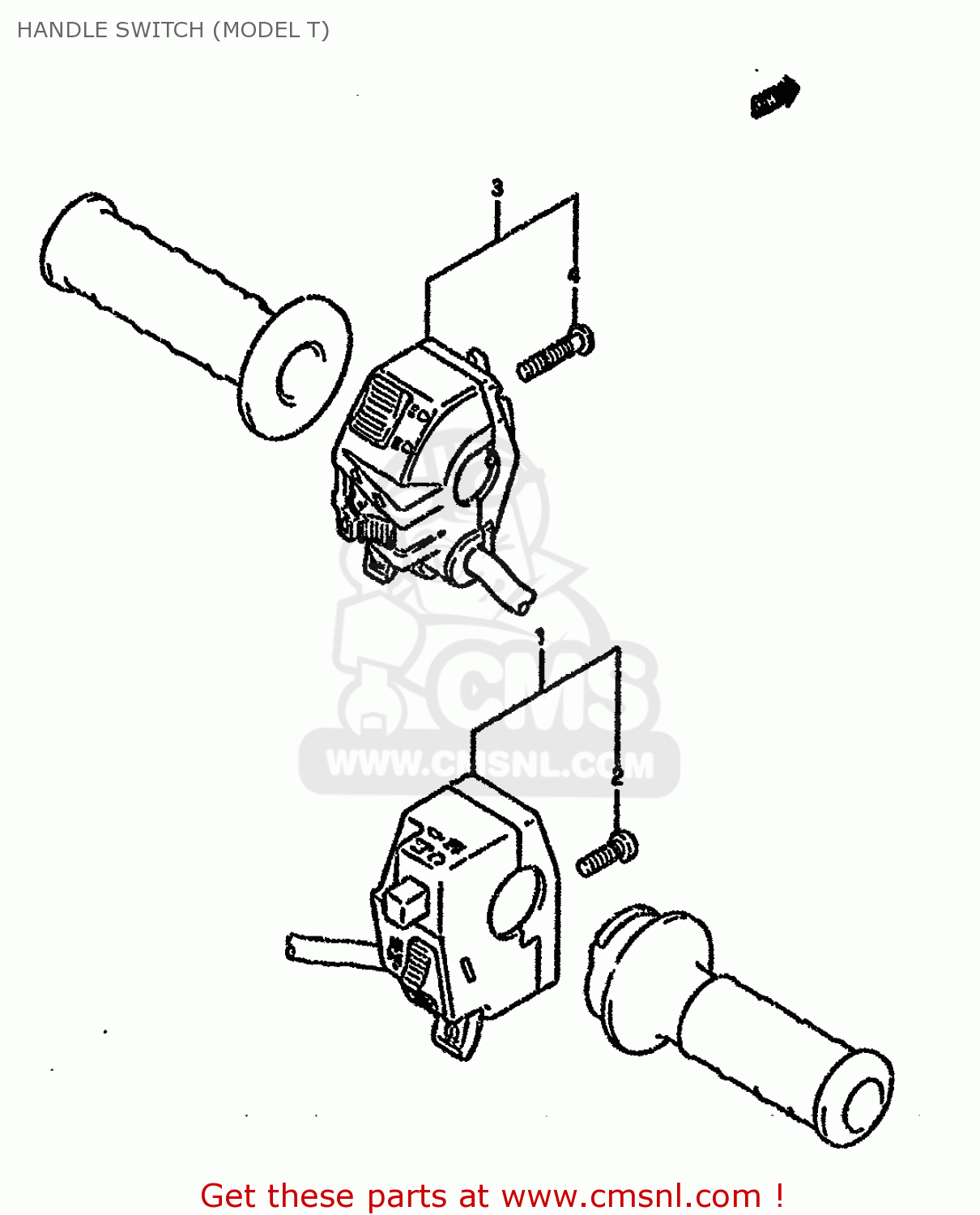

Handle switch (model t) diagram DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

HANDLE SWITCH (MODEL T) DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

HANDLE SWITCH (MODEL T) DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

prices are in EUR

ref

part #

description

quantity

1

3720012D40
ref: 1

SWITCH ASSY,HANDLE,R

€ 108.50

2

0211205253
ref: 2

SCREW

€ 1.50

3

3740012D40
ref: 3

SWITCH ASSY,HANDLE,LH

€ 0.00

4

0211205305
ref: 4

SCREW

€ 1.50

4

0211205305
ref: 4

SCREW

€ 1.50
