CAM SHAFT-VALVE

DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

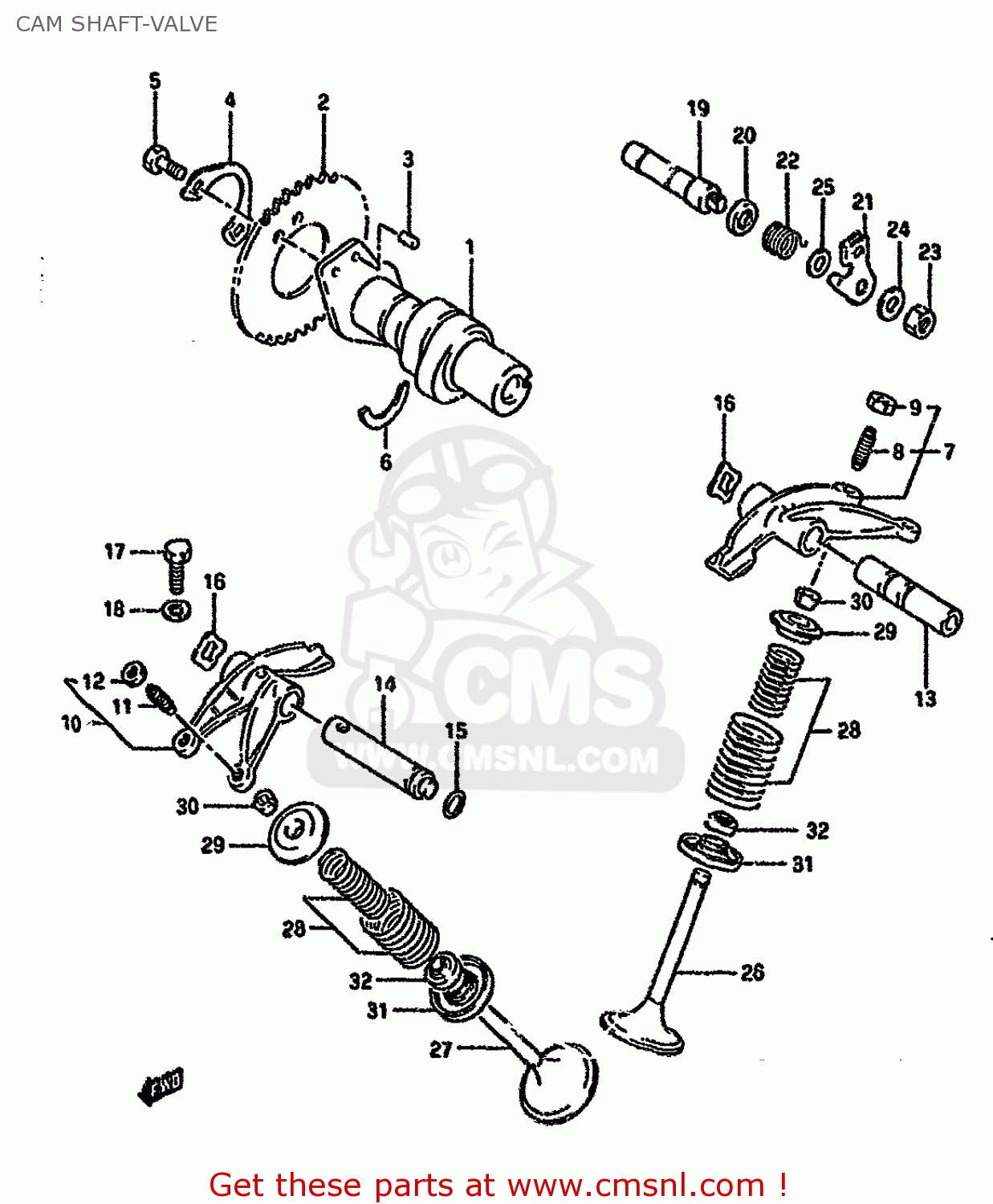

Cam shaft-valve diagram DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

CAM SHAFT-VALVE DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53
CAM SHAFT-VALVE DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53
CAM SHAFT-VALVE DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53
prices are in EUR
ref
part #
description
quantity
1-1
1271112D00
ref: 1-1
MODEL M/N/P/R/S
CAMSHAFT
1271112D00
€ 428.50
1-2
1271112D10
ref: 1-2
MODEL T
CAM SHAFT
€ 0.00
2
1274137400
ref: 2
SPROCKET,CAMSHAFT(NT:42)
1274137400
€ 34.50
3
0422105109
ref: 3
PIN
0422105109
€ 1.50
4
1274744000
ref: 4
WASHER,CAM CHAIN SPROCKET
1274744000
€ 2.00
5
0911106027
ref: 5
BOLT(6X12.5)
0911106027
€ 1.50
6
0939025003
ref: 6
C RING
0939025003
€ 2.50
7
1284012D00
ref: 7
ARM,VALVE ROCKER INTAKE
1284012D00
€ 112.00
8
1284232411
ref: 8
SCREW,TAPPET ADJUSTING
1284232411
€ 5.00
9
1284332400
ref: 9
NUT,ADJUSTING SCREW
1284332400
€ 2.50
10
1285037401
ref: 10
ARM,VALVE ROCKER EXHAUST
1285037401
€ 123.00
11
1284232411
ref: 11
SCREW,TAPPET ADJUSTING
1284232411
€ 5.00
12
1284332400
ref: 12
NUT,ADJUSTING SCREW
1284332400
€ 2.50
13
1286112D00
ref: 13
L:73
SHAFT,VALVE ROCKER ARM INTAKE
1286112D00
€ 19.50
14
1287114A00
ref: 14
L:78.5
SHAFT,EXHAUST VALVE ROCKER ARM
1287114A00
€ 20.00
15
0928009005
ref: 15
O RING(D:1.9,ID:8.6)
0928009005
€ 4.00
16
0916412018
ref: 16
WASHER
0916412018
€ 1.50
17-1
0151706305
ref: 17-1
MODEL M/N/P
BOLT 6X30
€ 2.50
17-2
0155006303
ref: 17-2
MODEL R/S/T
BOLT
0155006303
€ 2.50
18
0916806023
ref: 18
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
19
1294112D10
ref: 19
SHAFT,DECOMP
1294112D10
€ 24.50
20
0928210014
ref: 20
SEAL,OIL(10X17X6)
0928210014
€ 6.50
21
1294212D11
ref: 21
LEVER,DECOMPRESSION SHAFT
1294212D11
€ 5.50
22
0944817029
ref: 22
SPRING
0944817029
€ 6.50
23-1
0831022085
ref: 23-1
MODEL M/N/P
NUT 8MM
0831022085
€ 2.00
23-2
0831000083
ref: 23-2
MODEL R
NUT
0831000083
€ 1.50
23-3
0831610083
ref: 23-3
MODEL S/T
NUT
0831610083
€ 3.00
24-1
0832211084
ref: 24-1
MODEL M/N/P
WASHER
0832211084
€ 1.50
24-2
0832201083
ref: 24-2
MODEL R
WASHER
0832201083
€ 1.50
25
0916008074
ref: 25
WASHER(8.5X13X1.6)
0916008074
€ 2.50
26
1291112D00
ref: 26
VALVE,INTAKE
1291112D00
€ 28.50
27
1291237400
ref: 27
VALVE,EXHAUST
1291237400
€ 61.00
28
1292037402
ref: 28
SPRING SET,VALVE
1292037402
€ 12.50
29
1293145000
ref: 29
RETAINER,VALVE SPRING
1293145000
€ 6.00
30
1293245010
ref: 30
COTTER VALVE
1293245010
€ 2.50
31
1293337400
ref: 31
SEAT,VALVE SPRING
1293337400
€ 3.50
32
0928907002
ref: 32
SEAL,OIL(7X14.4X9)
0928907002
€ 3.00
