FRONT WHEEL

DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

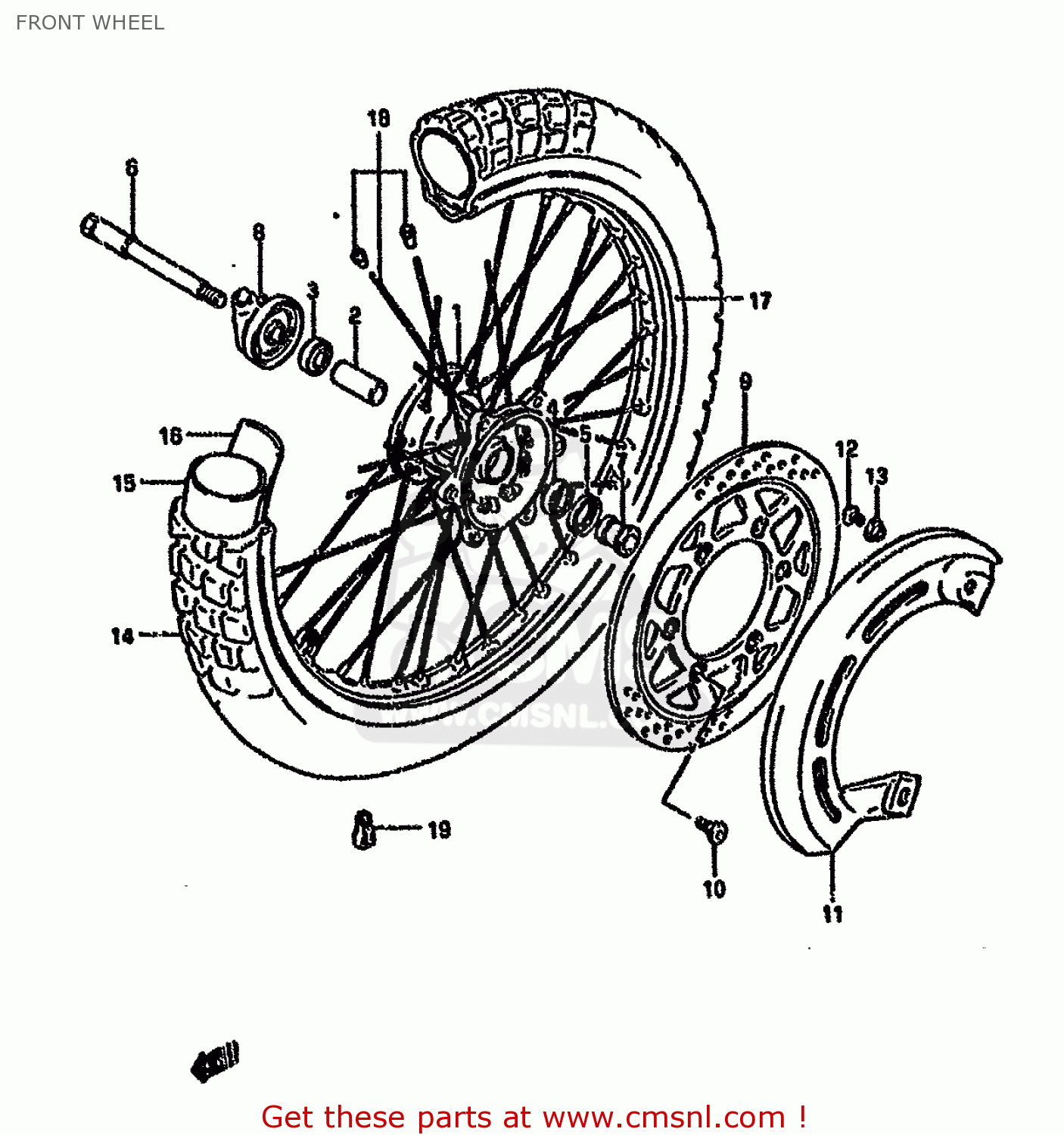

Front wheel diagram DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

FRONT WHEEL DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53
FRONT WHEEL DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53
FRONT WHEEL DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53
prices are in EUR
ref
part #
description
quantity
1-1
5411131D10
ref: 1-1
MODEL M/N/P/R/S
HUB,FRONT
€ 199.50
1-2
5411131D11
ref: 1-2
MODEL T
HUB,FRONT WHEEL
€ 199.50
2
5473144B00
ref: 2
SPACER,FR HUB BEARING
5473144B00
€ 11.50
3
0811362027
ref: 3
BEARING
0811362027
€ 14.50
4
0812362027
ref: 4
BEARING
0812362027
€ 14.50
5
0928422004
ref: 5
SEAL,OIL(22X35X5)
0928422004
€ 8.00
6
5471114D00
ref: 6
-54711-14D10
AXLE,FR
5471114D00
€ 66.50
7
5475114D00
ref: 7
SPACER,FR AXLE,L
5475114D00
€ 18.50
8
5460014D00
ref: 8
BOX ASSY,SPEEDOMETER GEAR
5460014D00
€ 87.50
9
5922112D00
ref: 9
DISC,FR BRAKE
€ 147.50
10-1
5942103A01
ref: 10-1
MODEL M/N
BOLT,BRAKE DISC
5942103A01
€ 4.00
10-2
5942103A10
ref: 10-2
MODEL P/R/S/T
BOLT,BRAKE DISC
5942103A10
€ 4.00
11-1
5923131D0012F
ref: 11-1
MODEL M/N
COVER,FRONT BRAKE DISC
5923131D0012F
€ 83.00
11-2
5923131D0022P
ref: 11-2
MODEL M
COVER,BRAKE DISC (RED)
€ 79.00
11-3
5923131D000JW
ref: 11-3
MODEL M
COVER,BRAKE DISC (WHITE)
€ 79.00
11-4
5923131D001MW
ref: 11-4
MODEL N
CV.FR.BRAKE DS
€ 79.00
11-5
5923131D0033J
ref: 11-5
MODEL N
COVER FR BRAKE
€ 79.00
11-6
5923131D101AY
ref: 11-6
MODEL P,FOR 12F
COVER,BRAKE DISC (BLUE)
€ 79.00
11-7
5923131D10
ref: 11-7
MODEL P/R/S,FOR 33J
COVER,FRONT BRAKE DISC
5923131D10
€ 79.00
11-8
5923131D100NF
ref: 11-8
MODEL R/S,FOR 1LE
COVER,FR BRAKE DISC
€ 68.50
12-1
0214206125
ref: 12-1
MODEL M/N/P
SCREW 6X12
0214206125
€ 2.00
12-2
0214206127
ref: 12-2
MODEL R/S/T
SCREW 6X12
0214206127
€ 1.50
13
0916906041
ref: 13
WASHER
0916906041
€ 2.00
14-1
5511012D00
ref: 14-1
TIRE,FRONT (90/90-21 54S) DUNLOP
€ 164.00
14-2
5510012E00
ref: 14-2
MODEL S
TIRE,FRONT 90/90-21 54
€ 0.00
15
5520016510
ref: 15
TUBE
5520016510
€ 32.50
16
5526114540
ref: 16
PROTECTOR,WHEEL INNER
5526114540
€ 5.00
17
5531144B00
ref: 17
RIM,FR WHEEL(21X1.85)
5531144B00
€ 336.50
18
5532031D00
ref: 18
SPOKE SET,FR WHEEL
5532031D00
€ 46.50
19-1
5541238A00
ref: 19-1
BALANCER,WHEEL
5541238A00
€ 6.50
19-2
5541338A00
ref: 19-2
BALANCER,WHEEL (30G)
€ 8.00
