GEAR SHIFTING

DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

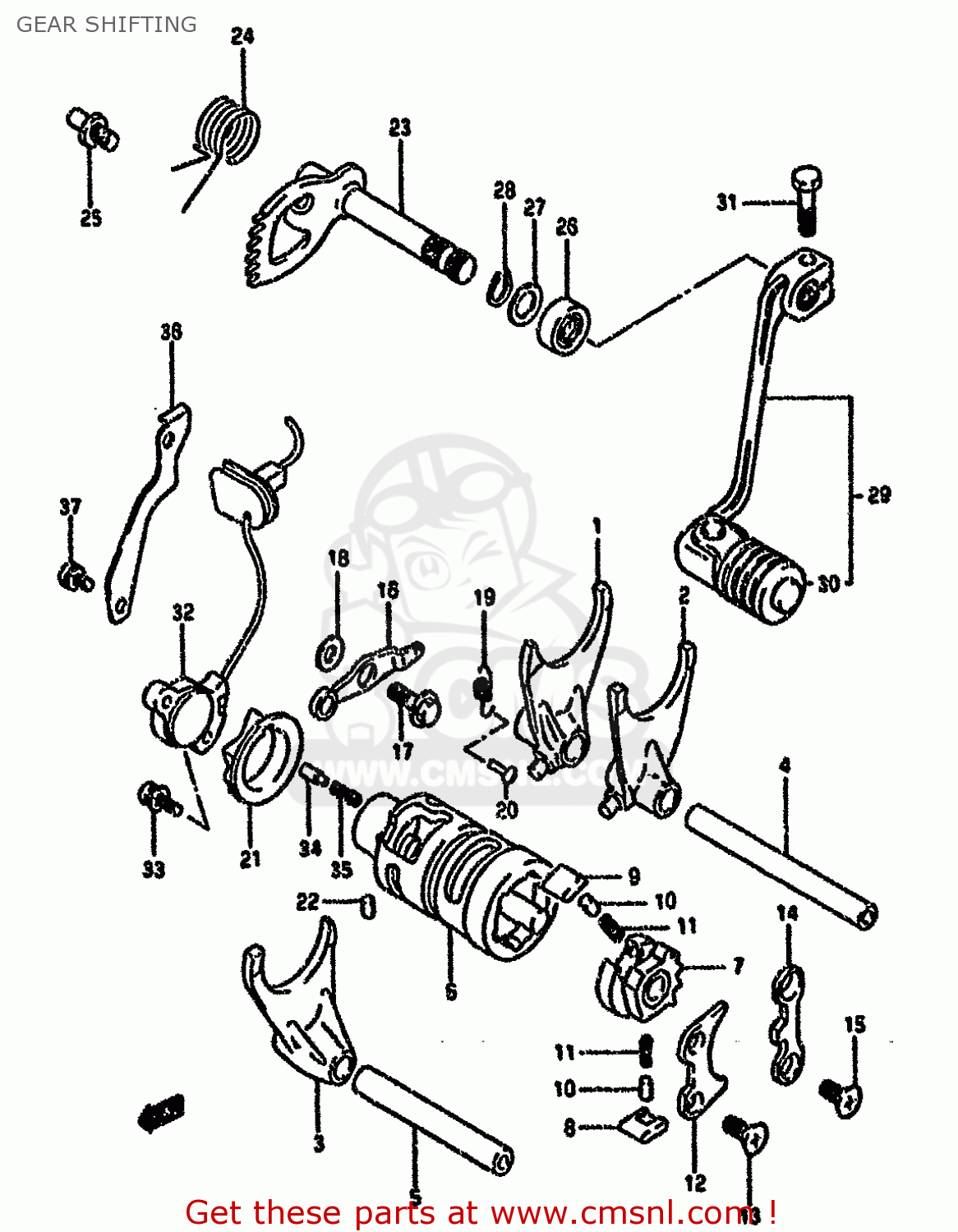

Gear shifting diagram DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

GEAR SHIFTING DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53
GEAR SHIFTING DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53
GEAR SHIFTING DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53
prices are in EUR
ref
part #
description
quantity
1
2521137400
ref: 1
FORK,GEAR SHIFT NO.1
€ 58.50
2
2522137400
ref: 2
FORK,GEAR SHIFT NO.2
€ 58.50
3
2523114A00
ref: 3
FORK,GEAR SHIFT NO.3
€ 54.50
4
2541120A11
ref: 4
-25411-14500
SHAFT,GEAR SHIFT FORK
2541120A11
€ 14.50
5-1
2542114A01
ref: 5-1
MODEL M/N/P
SHAFT,GEAR SHIFT FORK
€ 14.50
5-2
2542114A02
ref: 5-2
MODEL R/S/T
SHAFT,GEAR SHIFT FORK
2542114A02
€ 14.50
6
2531037400
ref: 6
CAM,GEAR SHIFT
2531037400
€ 91.50
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
0926105003
€ 1.50
11
0944004003
ref: 11
SPRING
0944004003
€ 1.50
12
2533114A00
ref: 12
LIFTER,GEAR SHAFT PAWL
2533114A00
€ 6.00
13-1
0212206127
ref: 13-1
MODEL M/N/P
SCREW
0212206127
€ 3.00
13-2
0212206123
ref: 13-2
MODEL R/S/T
SCREW
0212206123
€ 3.00
14
2534140001
ref: 14
STOPPER,GEAR SHIFT POLE
2534140001
€ 6.50
15-1
0212206127
ref: 15-1
MODEL M/N/P
SCREW
0212206127
€ 3.00
15-2
0212206123
ref: 15-2
MODEL R/S/T
SCREW
0212206123
€ 3.00
16
2535037400
ref: 16
STOPPER,GEAR SHIFT CAM
2535037400
€ 8.00
17-1
0911106019
ref: 17-1
MODEL M/N/P
BOLT
€ 1.50
17-2
0911106054
ref: 17-2
MODEL R/S/T
BOLT(6X14.6)
0911106054
€ 1.50
18
0821106141
ref: 18
WASHER
0821106141
€ 2.50
19
0944308020
ref: 19
SPRING
0944308020
€ 2.00
20
0922304001
ref: 20
RIVET
0922304001
€ 1.50
21-1
2538137400
ref: 21-1
MODEL M/N/P
PLATE,SHIFT CAM STOPPER
€ 10.50
21-2
2538137401
ref: 21-2
MODEL R/S/T
PLATE,GEAR SHIFT CAM STOPPER
2538137401
€ 10.50
22-1
0621104063
ref: 22-1
MODEL M/N/P/R/S
PIN 4X6
0621104063
€ 2.00
22-2
0422104069
ref: 22-2
MODEL T
PIN
0422104069
€ 2.00
23-1
2551014A02
ref: 23-1
MODEL M/N/P/R/S
SHAFT,GEAR SHIFT
2551014A02
€ 64.00
23-2
2551032E00
ref: 23-2
MODEL T
SHAFT,GEAR SHIFT
2551032E00
€ 64.00
24
0944426013
ref: 24
-09444-26012
SPRING
0944426013
€ 3.50
25
2567101000
ref: 25
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
26
0928512002
ref: 26
OIL SEAL
0928512002
€ 7.00
27
0821212201
ref: 27
WASHER
0821212201
€ 1.50
28
0833131126
ref: 28
CIRCLIP,12 MM
0833131126
€ 2.00
29
2560012D11
ref: 29
LEVER ASSY,GEAR SHIFT
2560012D11
€ 104.50
30
2565203D00
ref: 30
RUBBER,GEAR SHIFT PEDAL
2565203D00
€ 3.50
31-1
0150006203
ref: 31-1
MODEL M/N/P-09100-06
BOLT
0150006203
€ 2.00
31-2
0155006203
ref: 31-2
MODEL R/S/T
BOLT
0155006203
€ 2.50
32
3772014A11
ref: 32
BASE ASSY,NEUTRAL SW TERMINAL
3772014A11
€ 72.50
33-1
0211275168
ref: 33-1
MODEL M/N/P
SCREW
0211275168
€ 2.50
33-2
0211275163
ref: 33-2
MODEL R/S/T
SCREW
0211275163
€ 2.50
34
0920905011
ref: 34
PIN(5X15.5)
0920905011
€ 2.00
35
0944004010
ref: 35
SPRING
0944004010
€ 1.50
36
3772114A00
ref: 36
CLAMP,LEAD WIRE
3772114A00
€ 3.50
37-1
0211236108
ref: 37-1
MODEL M/N/P
SCREW
€ 0.00
37-2
0211236103
ref: 37-2
MODEL R/S/T
SCREW
€ 1.50
