FRONT CALIPER

DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

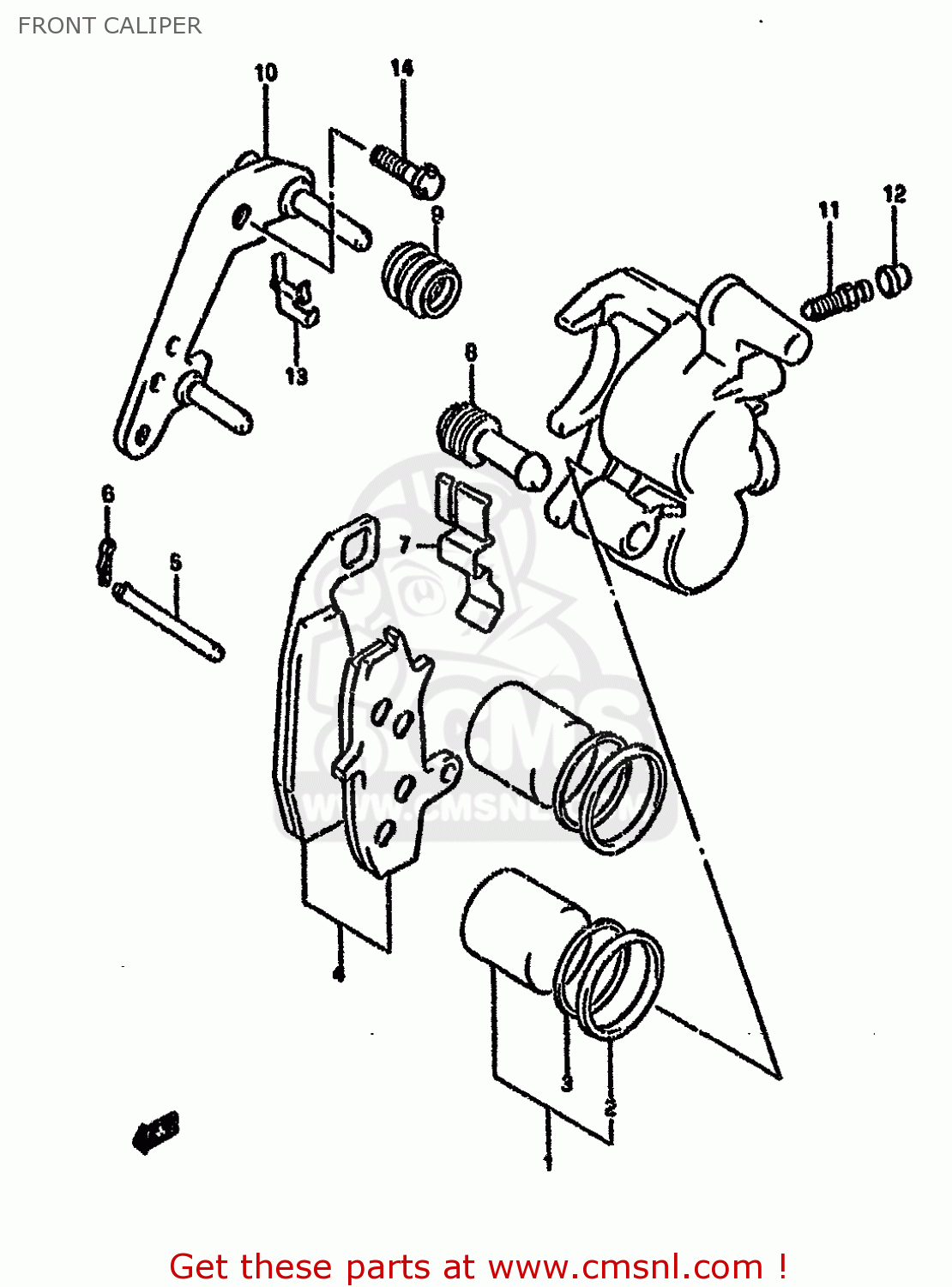

Front caliper diagram DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

prices are in EUR

ref

part #

description

quantity

5930044B02
ref: 0
MODEL M/N-59300-44B0

CALIPER ASSEMBLY,FRONT,LEFT

€ 550.50

5930044B03
ref: 0
MODEL P/R/S/T

CALIPER ASSEMBLY,FRONT,LEFT

€ 550.50

5930044841
ref: 1

PISTON SET

€ 79.00

5910727A10
ref: 2

SEAL,PISTON

€ 23.50

5910827A10
ref: 3

SEAL,WIPER

€ 18.00

5930044850
ref: 4

PAD SET (NAS)

€ 47.00

5914144B01
ref: 5

PIN,PAD

€ 8.00

6914245000
ref: 6

CLIP,PAD PIN

€ 4.50

5931544B00
ref: 7

SPRING,PAD

€ 14.50

5931336500
ref: 8

INSULATOR,AXLE

€ 5.50

5931244B00
ref: 9

BOOT,AXLE

€ 12.50

5935044B00
ref: 10

BRACKET

€ 70.00

5912118410
ref: 11

BLEEDER

€ 8.00

5515666310
ref: 12

CAP,BLEEDER PLUG

€ 6.00

5931644B00
ref: 13

GUIDE,PAD

€ 7.50

0910308156
ref: 14

BOLT

€ 3.50

FRONT CALIPER

all assemblies
