STARTER CLUTCH

DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

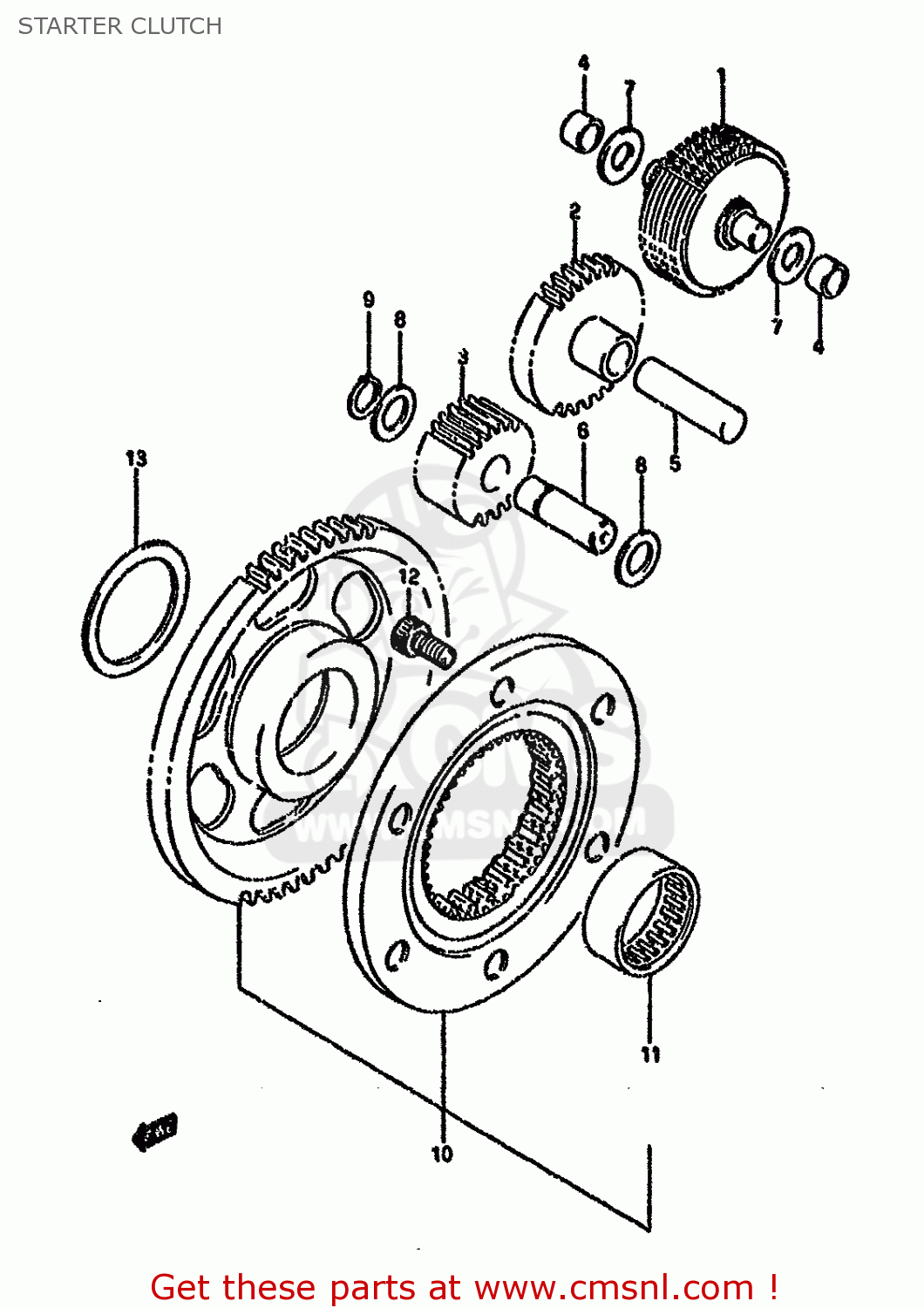

Starter clutch diagram DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

prices are in EUR

ref

part #

description

quantity

1260012D00
ref: 1

LIMITER ASSEMBLY,STARTER IDLER GEAR

€ 122.50

1261212D01
ref: 2
NT:27

GEAR,STARTER IDLE NO.2(NT:27)

€ 40.50

1261312D00
ref: 3
NT:18

GEAR,STARTER IDLE NO.3

€ 49.00

1261831D01
ref: 4

BUSH,LIMITER GEAR SHAFT

€ 17.50

0920212002
ref: 5

PIN

€ 7.50

1261512D00
ref: 6

SHAFT,STARTER IDLE GEAR

€ 7.00

0821110221
ref: 7

WASHER

€ 2.50

0822112205
ref: 8

SHIM

€ 1.50

0833131126
ref: 9

CIRCLIP,12 MM

€ 2.00

1260012810
ref: 10

CLUTCH SET,STARTER

€ 210.00

0926331009
ref: 11

BEARING(31X39X17.8)

€ 25.50

12-1

0713008207
ref: 12-1
MODEL M/N/P

BOLT

€ 3.00

12-2

0713008203
ref: 12-2
MODEL R/S/T

BOLT

€ 3.00

0821140521
ref: 13

SHIM

€ 5.50
