FRONT MASTER CYLINDER

DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

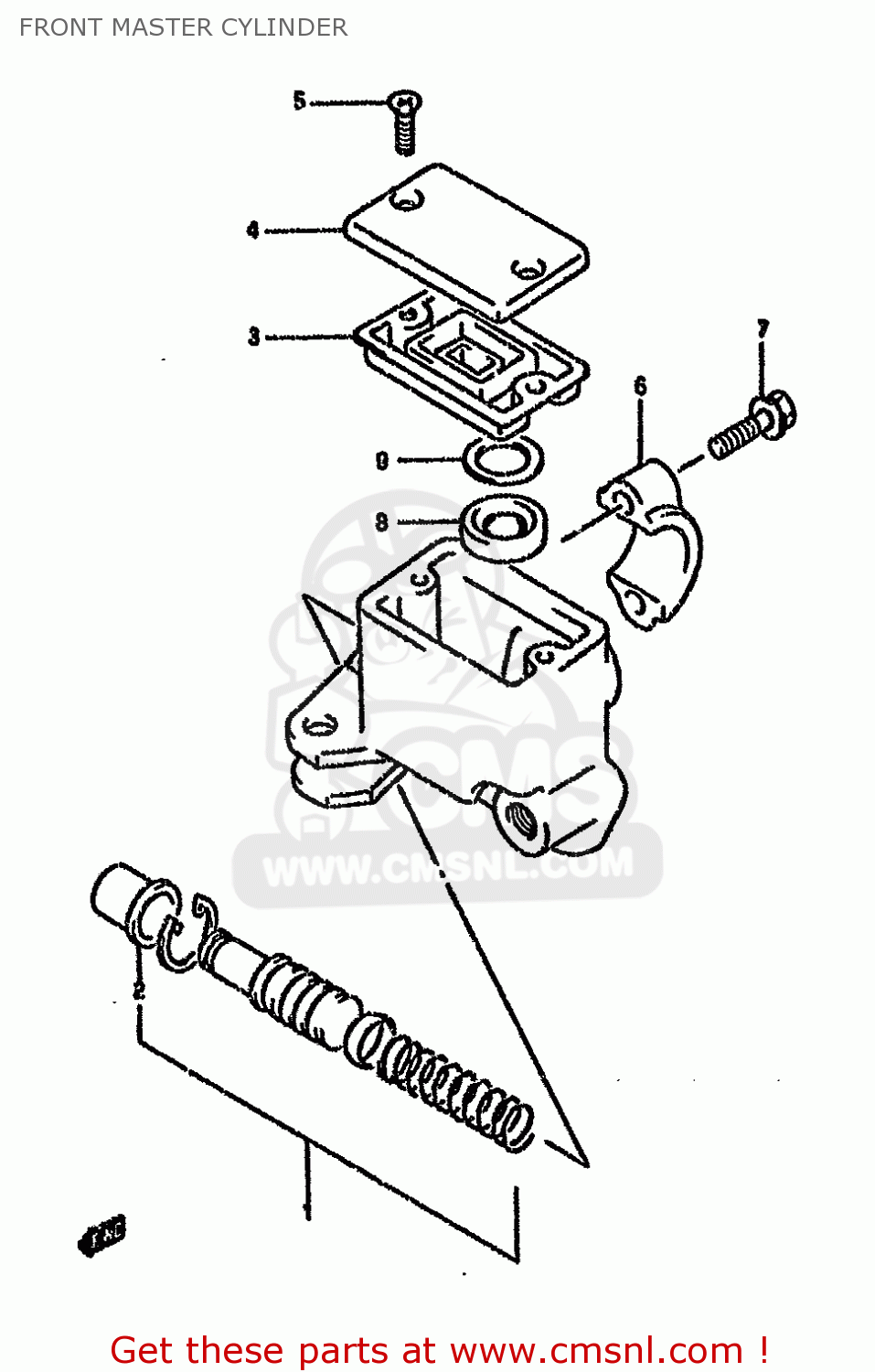

Front master cylinder diagram DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

FRONT MASTER CYLINDER DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

FRONT MASTER CYLINDER DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

prices are in EUR

ref

part #

description

quantity

0

5960012D01
ref: 0

CYLINDER ASSY,FR MASTER

€ 210.00

1

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

2

5966644300
ref: 2

BOOT

€ 6.00

3

5966744B00
ref: 3

DIAPHRAGM

€ 8.00

4

6966924A01
ref: 4

CAP

€ 12.00

5

6968949300
ref: 5

SCREW

€ 1.50

6

5967136500
ref: 6

HOLDER

€ 10.00

7

5967519C00
ref: 7

BOLT(6X25)

€ 3.00

8

5974815400
ref: 8

SEPERATOR

€ 7.50

9

5974915400
ref: 9

PLATE

€ 2.00
