OIL PUMP

DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

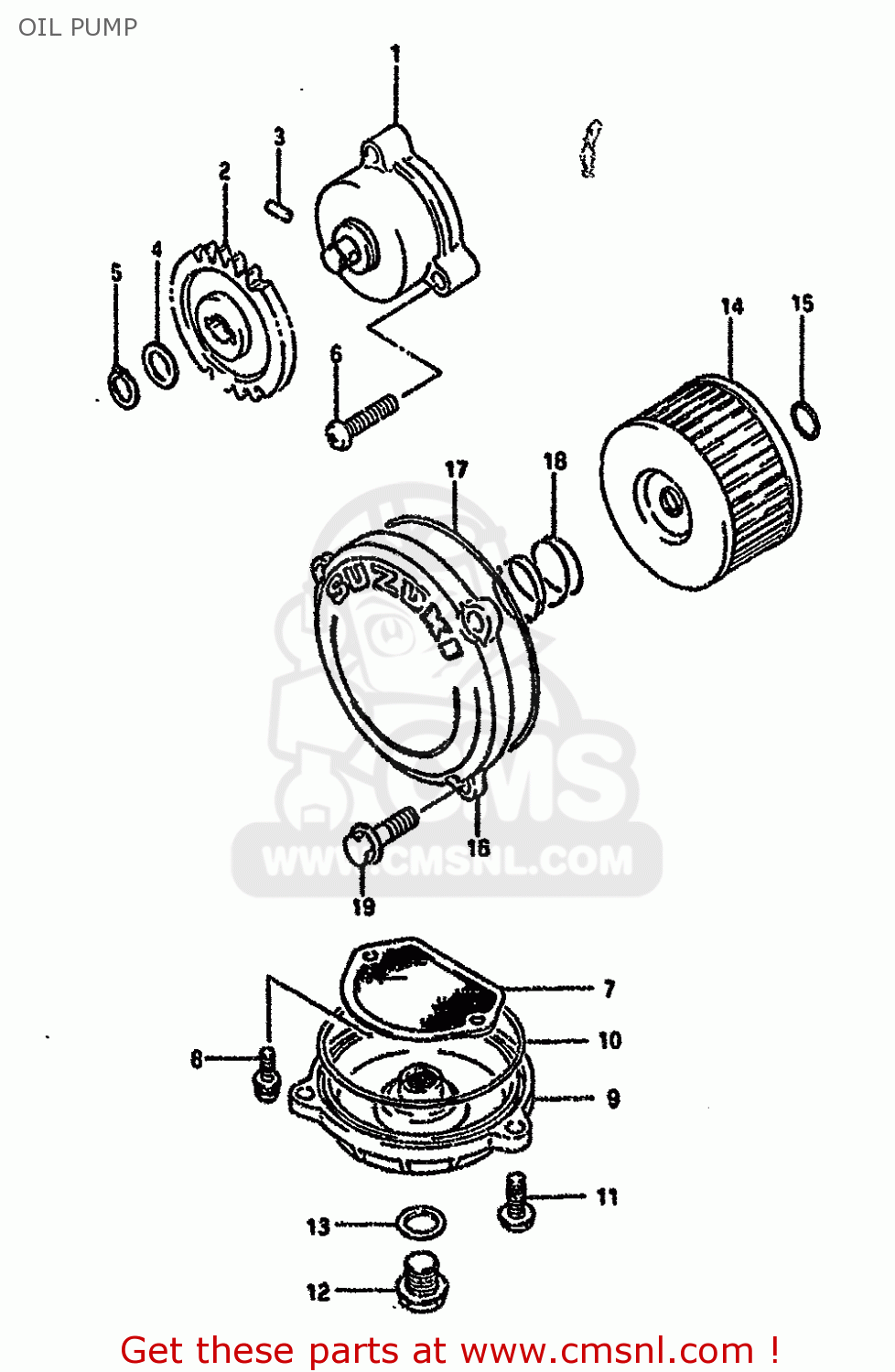

Oil pump diagram DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53

OIL PUMP DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53
OIL PUMP DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53
OIL PUMP DR650RSE 1992 (N) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E53
prices are in EUR
ref
part #
description
quantity
1
1640012D00
ref: 1
PUMP ASSY,ENGINE OIL
1640012D00
€ 156.50
2
1633112D10
ref: 2
GEAR,OIL PUMP DRIVEN
1633112D10
€ 23.50
3
0926104009
ref: 3
PIN(4X15.8)
0926104009
€ 1.50
4
0822110185
ref: 4
SHIM
0822110185
€ 2.00
5
0833131106
ref: 5
CIRCLIP,10MM
0833131106
€ 2.00
6-1
0211206257
ref: 6-1
MODEL M/N/P
SCREW
0211206257
€ 2.00
6-2
0211206253
ref: 6-2
MODEL R/S/T
SCREW
0211206253
€ 1.50
7
1652014A00
ref: 7
STRAINER,ENGINE OIL
1652014A00
€ 8.50
8
0211275123
ref: 8
SCREW
€ 2.50
9
1652337402
ref: 9
CAP,OIL STRAINER
1652337402
€ 56.00
10
0928082001
ref: 10
O RING(D:2.4,ID:85)
0928082001
€ 6.50
11-1
0155006207
ref: 11-1
MODEL M/N/P
BOLT
0155006207
€ 2.50
11-2
0155006203
ref: 11-2
MODEL R/S/T
BOLT
0155006203
€ 2.50
12
0924714001
ref: 12
PLUG
0924714001
€ 5.00
13-1
0916814004
ref: 13-1
MODEL M/N/P
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
13-2
0916814002
ref: 13-2
MODEL R/S/T
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
14
1651037440
ref: 14
FILTER,ENGINE OIL
1651037440
€ 7.50
15-1
0928016005
ref: 15-1
MODEL M/N/P/R
O RING(D:2.4,ID:15.8)
0928016005
€ 1.50
15-2
0928015007
ref: 15-2
MODEL S/T
O RING(D:2.4,ID:15.8)
0928015007
€ 2.00
16-1
1651212D00
ref: 16-1
MODEL M/N
CAP,OIL FILTER
1651212D00
€ 17.50
16-2
1651212E00
ref: 16-2
MODEL P/R/S/T
CAP,OIL FILTER
1651212E00
€ 26.00
17
0928072001
ref: 17
O RING(D:2.4,ID:73)
0928072001
€ 5.00
18-1
0944021004
ref: 18-1
MODEL M/N/P/R
SPRING
0944021004
€ 13.00
18-2
0944021006
ref: 18-2
MODEL S/T
SPRING
0944021006
€ 2.50
19-1
0154706165
ref: 19-1
MODEL M/N/P
BOLT
0154706165
€ 2.50
19-2
0154706167
ref: 19-2
MODEL R/S/T
BOLT
0154706167
€ 2.00
