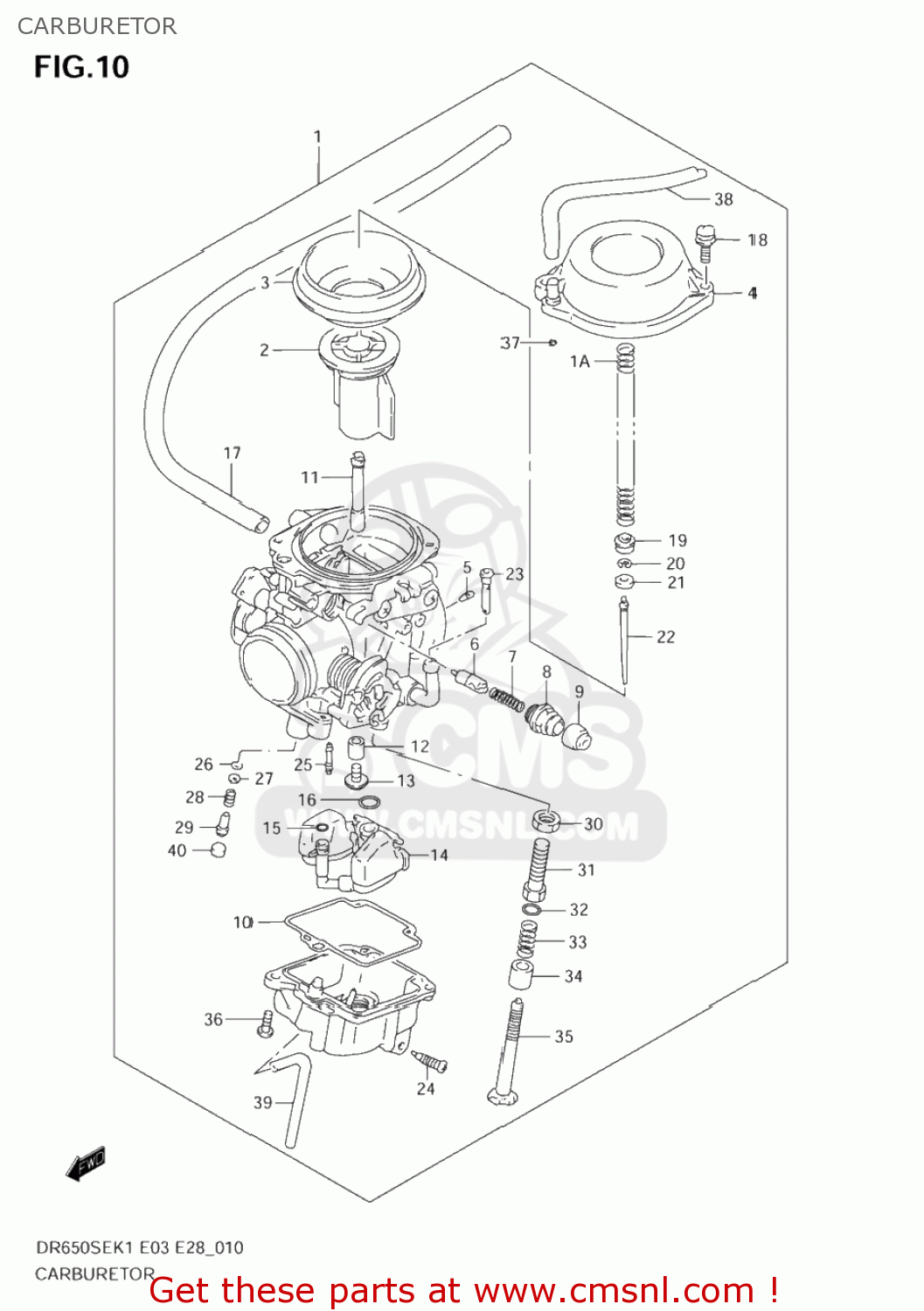

CARBURETOR

ref

part #

description

quantity

1A

1341717D00
ref: 1A

SPRING

€ 5.50

1-1

1320032E11
ref: 1-1
13200-32E12

CARBURETOR ASSEMBLY

€ 355.00

1-2

1320032E61
ref: 1-2

CARBURETOR ASSY

€ 274.00

2

1350132E00
ref: 2

VALVE,PISTON

€ 57.00

3

1350707D01
ref: 3

DIAPHRAGM

€ 24.50

4

1350241C00
ref: 4

COVER,DIAPHRAGM

€ 31.50

5

0949320007
ref: 5

JET,AIR(1.0)

€ 10.00

6

1341112D00
ref: 6

PLUNGER

€ 18.00

7

1341722010
ref: 7

SPRING

€ 3.00

8

1341843410
ref: 8

HOLDER,GUIDE

€ 6.50

9

1368104010
ref: 9

CAP

€ 3.00

10

1325844B00
ref: 10

GASKET,FLOAT CHAMBER (NAS)

€ 8.50

11

0949400884
ref: 11

JET,NEEDLE(Y-5M)

€ 33.50

12

1333107D00
ref: 12

RING

€ 4.50

13

0949128010
ref: 13

JET,MAIN(140)

€ 8.50

14

1325012EH0
ref: 14

FLOAT/NEEDLE VALVE ASSY

€ 79.50

15

1337446710
ref: 15

O RING

€ 4.50

16

1337435C00
ref: 16

O RING,NEEDLE VALVE SEAT

€ 6.00

17

1368332E00
ref: 17

HOSE(6.5X10.5X275)

€ 12.50

18

0211275163
ref: 18
02112-7516A

SCREW

€ 2.50

19

1333112D00
ref: 19

RING

€ 4.50

20

1339431210
ref: 20

CLIP,NEEDLE

€ 3.50

21

1338707D00
ref: 21

RING

€ 4.50

22

1338332E10
ref: 22

NEEDLE,JET(6F23)

€ 13.50

23

1323612C00
ref: 23

FILTER

€ 5.00

24

1324713A00
ref: 24
13247-02340

SCREW,DRAIN

€ 5.50

25

0949242010
ref: 25

JET,PILOT(42.5)

€ 8.50

26

1329529900
ref: 26

O RING,PILOT AIR SCREW

€ 4.00

27

1329129900
ref: 27

WASHER

€ 2.00

28

1326847070
ref: 28

SPRING

€ 5.00

29

1327947070
ref: 29

SCREW,PILOT

€ 11.50

30

1360737010
ref: 30

NUT

€ 2.00

31

1326731D00
ref: 31

ADJUSTER

€ 21.50

32

1361543010
ref: 32

WASHER,STARTER SHAFT

€ 2.50

33

1327133C00
ref: 33

SPRING

€ 4.50

34

1343295210
ref: 34

RING

€ 4.00

35

1326731D10
ref: 35

ADJUSTER

€ 12.00

36

1360105148
ref: 36
13601-05148-XC0

SCREW(5X14)

€ 3.00

37

1327802340
ref: 37

O RING

€ 1.50

38

0935545855600
ref: 38

HOSE(4.5X8.5X600)

€ 14.00

39

1368432E10
ref: 39

HOSE(3X5X450)

€ 9.00

40

1328105A00
ref: 40

PLUG

€ 3.50
