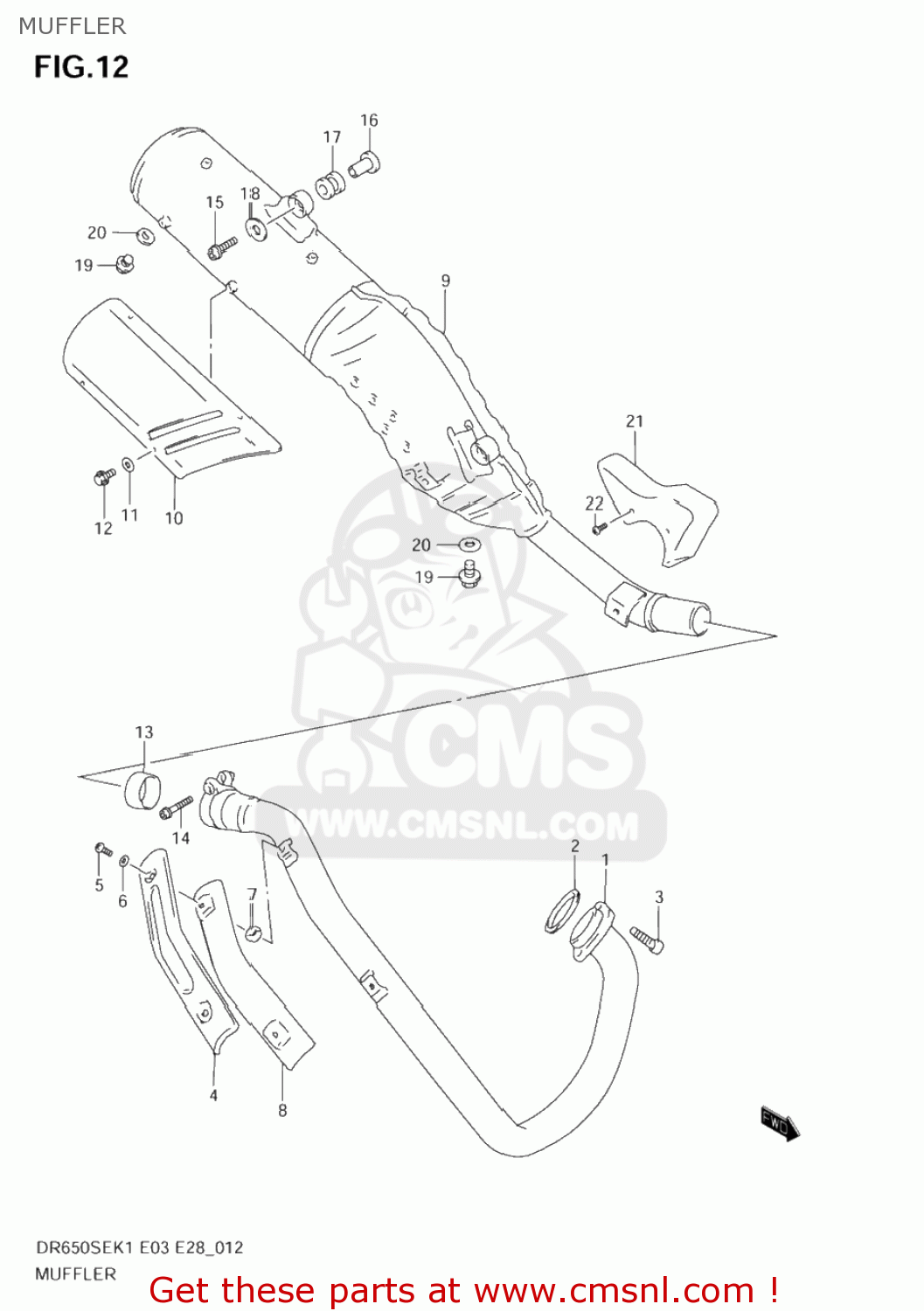

MUFFLER

ref

part #

description

quantity

1-1

1415032E00
ref: 1-1
14150-32E11

PIPE COMP,EXHAUST

€ 214.50

1-2

1415032E10
ref: 1-2
14150-32E11

PIPE, EXHAUST

€ 214.50

2

1418122D01
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 9.00

3

0713008253
ref: 3
07130-0825B

BOLT

€ 3.50

4

1418032E00
ref: 4

COVER,EXHAUST PIPE

€ 27.50

5

0913906091
ref: 5

SCREW(6X12)

€ 4.00

6

0916006082
ref: 6

WASHER(6.5X13X1.0)

€ 1.50

7

0916806122
ref: 7

GASKET(6X16X1.4) (NAS)

€ 2.50

8

1418632E00
ref: 8

COVER,EXHAUST PIPE INNER

€ 10.50

9-1

1431032E30H01
ref: 9-1
14310-32E31-H01

BODY,MUFFLER

€ 646.50

9-2

1431032E31H01
ref: 9-2

BODY,MUFFLER

€ 646.50

10

1478132E00
ref: 10

COVER,MUFFLER

€ 45.50

11

0916006082
ref: 11

WASHER(6.5X13X1.0)

€ 1.50

12

0913906078
ref: 12

SCREW(6X10)

€ 3.00

13

1477132E00
ref: 13

CONNECTOR,MUFFLER

€ 12.50

14

0712008403
ref: 14
07120-0840A

BOLT

€ 3.50

15

0910608131
ref: 15

BOLT(8X30)

€ 3.50

16

0918008151
ref: 16

SPACER(8.6X12X17.5)

€ 6.00

17

0932012043
ref: 17

CUSHION

€ 8.00

18

0916008135
ref: 18

WASHER(8.5X28X1.6)

€ 2.00

19

0924712103
ref: 19

PLUG(12X9)

€ 3.50

20

0916812002
ref: 20

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

21

1478232E00
ref: 21

COVER,CONNECTOR CLAMP

€ 21.00

22

0913906078
ref: 22

SCREW(6X10)

€ 3.00

all assemblies
