MAGNETO

DR650SE 2001 (K1) USA (E03)

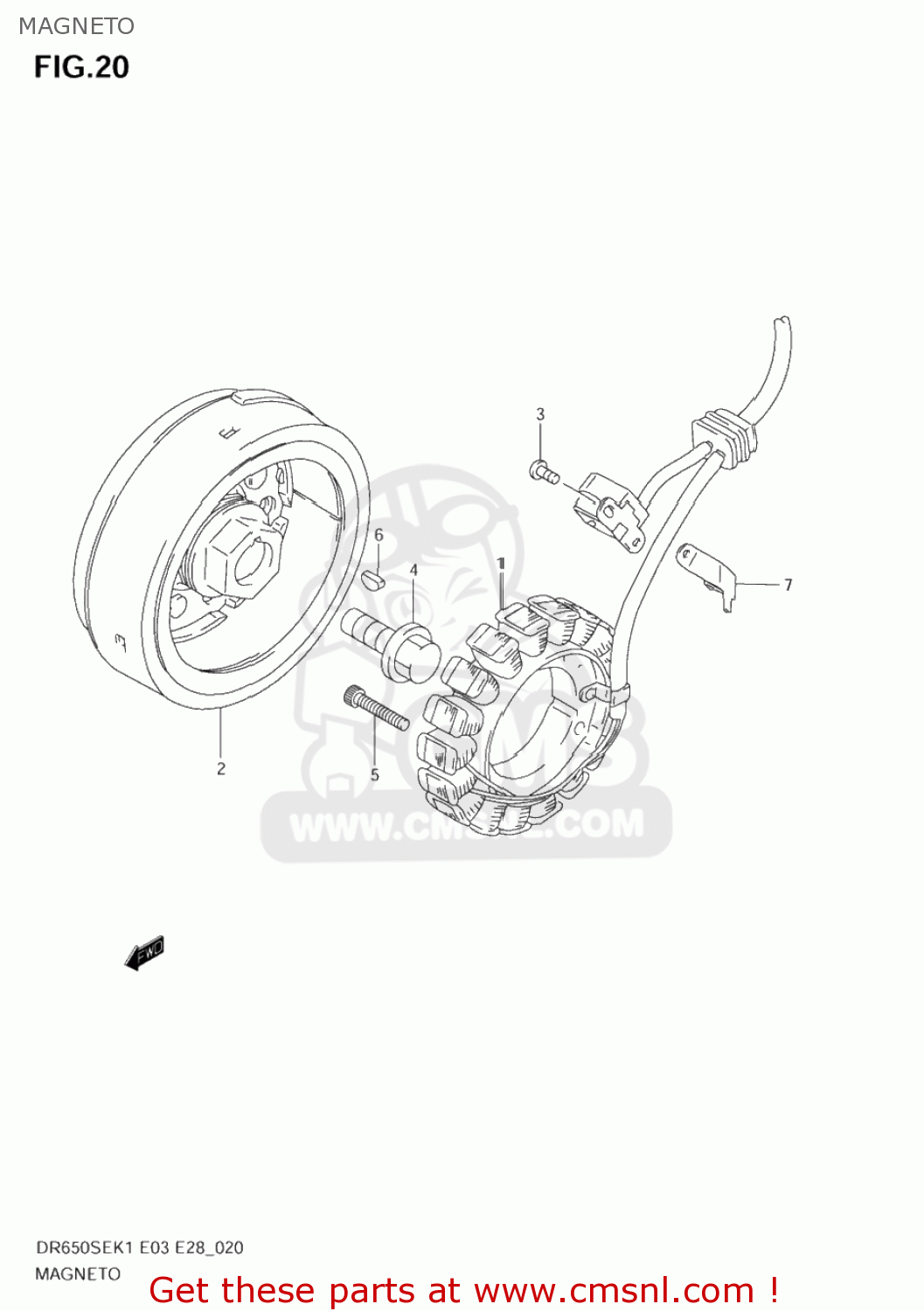

Magneto diagram DR650SE 2001 (K1) USA (E03)

MAGNETO DR650SE 2001 (K1) USA (E03)
MAGNETO DR650SE 2001 (K1) USA (E03)
MAGNETO DR650SE 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3210132E00
ref: 1
STARTER ASSY
3210132E00
€ 703.00
2
3210232E00
ref: 2
ROTOR ASSY
3210232E00
€ 599.00
3
0211205103
ref: 3
02112-0510A
SCREW
0211205103
€ 2.00
4
0910314001
ref: 4
BOLT(14X43)
0910314001
€ 7.00
5
0713006303
ref: 5
07130-0630B
BOLT
0713006303
€ 3.00
6
0942005007
ref: 6
KEY
0942005007
€ 3.00
7
3237132E00
ref: 7
CLAMP,MAGNETO LEAD
€ 4.00
