FRAME COVER (MODEL K1)

DR650SE 2001 (K1) USA (E03)

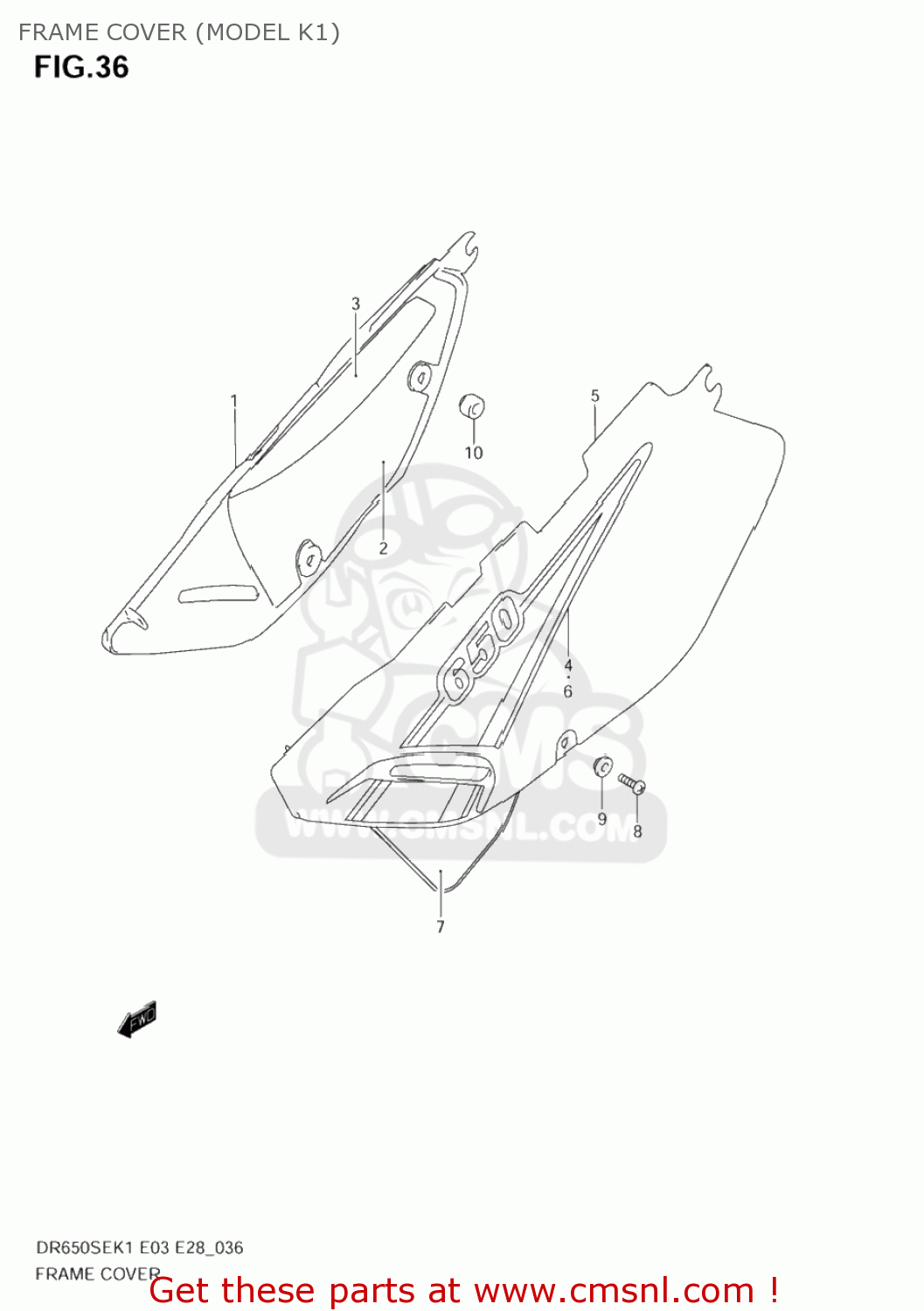

Frame cover (model k1) diagram DR650SE 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711132E00019
ref: 1-1
47111-32E10-019

COVER,FRAME,RIGHT

€ 59.50

1-2

4711132E0030H
ref: 1-2
47111-32E10-30H

COVER,FRAME,RIGHT

€ 59.50

4716632E00
ref: 2

SHIELD,FRAME COVER,R NO.1

€ 27.00

4716732E00
ref: 3

SHIELD,FRAME COVER,R NO.2

€ 10.50

4-1

6813032E00FF8
ref: 4-1

TAPE,FRAME COVER,R

€ 40.00

4-2

6813032E00FF9
ref: 4-2

TAPE,FRAME COVER,R

€ 24.00

5-1

4721132E00019
ref: 5-1

COVER,FRAME,LEFT

€ 59.50

5-2

4721132E0030H
ref: 5-2
47211-32E10-30H

COVER,FRAME,LEFT

€ 61.50

6-1

6814032E00FF8
ref: 6-1

TAPE,FRAME COVER,L

€ 0.00

6-2

6814032E00FF9
ref: 6-2

TAPE,FRAME COVER,L

€ 24.50

6814632E00
ref: 7

TAPE,LWR

€ 9.00

0214206167
ref: 8

SCREW

€ 2.00

0916906028
ref: 9
09169-06041

WASHER

€ 2.00

0932110019
ref: 10

CUSHION

€ 4.50
