SPEEDOMETER
DR650SE 2001 (K1) USA (E03)

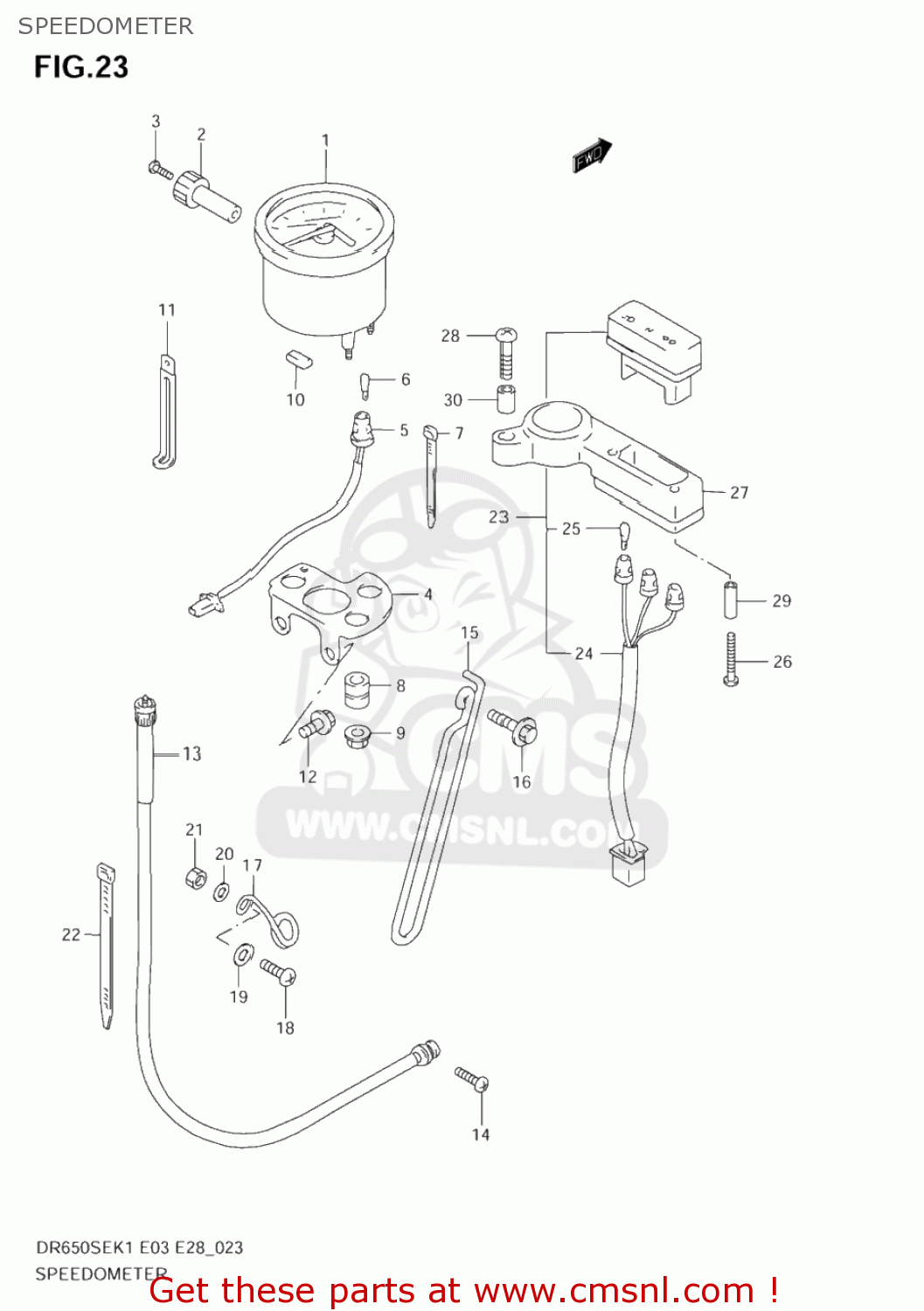

Speedometer diagram DR650SE 2001 (K1) USA (E03)
SPEEDOMETER DR650SE 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412032E02
ref: 1-1
SPEEDOMETER
€ 343.50
1-2
3412032E12
ref: 1-2
SPEEDOMETER
€ 354.00
2
3412444B30
ref: 2
KNOB,TRIP
€ 7.00
3
3418412D00
ref: 3
SCREW,TRIP KNOB
€ 2.00
4
3495032E10
ref: 4
BRACKET,METER
€ 22.00
5
3417015D21
ref: 5
SOCKET
€ 15.00
6
0947112108
ref: 6
BULB(12V1.7W,T6.5)
€ 2.00
7
3495442A90
ref: 7
CLAMP
€ 3.50
8
3418930921
ref: 8
CUSHION
€ 3.00
9
0915906076
ref: 9
NUT
€ 3.00
10
3416103D00
ref: 10
CUSHION
€ 2.00
11
0940410417
ref: 11
CLAMP(L:97)
€ 2.50
12
0155006123
ref: 12
01550-0612A
BOLT
€ 2.50
13
3491032E00
ref: 13
CABLE ASSY,SPEEDOMETER
€ 29.00
14
0211205163
ref: 14
02112-0516A
SCREW
€ 2.00
15
3493814D30
ref: 15
GUIDE,METER CABLE NO.2
€ 8.00
16
0911606167
ref: 16
BOLT(6X20)
€ 2.00
17
3493814D21
ref: 17
GUIDE,SPEEDOMETER CABLE
€ 6.50
18
0214206163
ref: 18
02142-0616A
SCREW
€ 2.50
19
0916006109
ref: 19
WASHER(6.5X18X1.6)
€ 2.00
20
0916906054
ref: 20
09169-06053
WASHER
€ 2.00
21
0831000063
ref: 21
08310-0006A
NUT 6MM
€ 2.00
22
0940714403
ref: 22
CLAMP(L:125)
€ 2.50
23-1
3638032E20
ref: 23-1
BOX ASSY,PILOT LAMP
€ 0.00
23-2
3638032E10
ref: 23-2
BOX ASSY,PILOT LAMP
€ 80.00
23-3
3638032E10
ref: 23-3
BOX ASSY,PILOT LAMP
€ 80.00
24
3639432E00
ref: 24
SOCKET & CORD
€ 26.50
25
0947112118
ref: 25
BULB(13.5V,2W,A7427)
€ 2.00
26
0351114353
ref: 26
SCREW
€ 2.00
27
3638232E00
ref: 27
HOLDER,PILOT BOX
€ 12.00
28
0913906029
ref: 28
SCREW(6X25)
€ 5.00
29
0918004024
ref: 29
SPACER(4.5X6.5X25)
€ 3.50
30
0918006251
ref: 30
SPACER(6.1X8X15.5)
€ 2.00
