STAND - REAR BRAKE

DR650SE 2001 (K1) USA (E03)

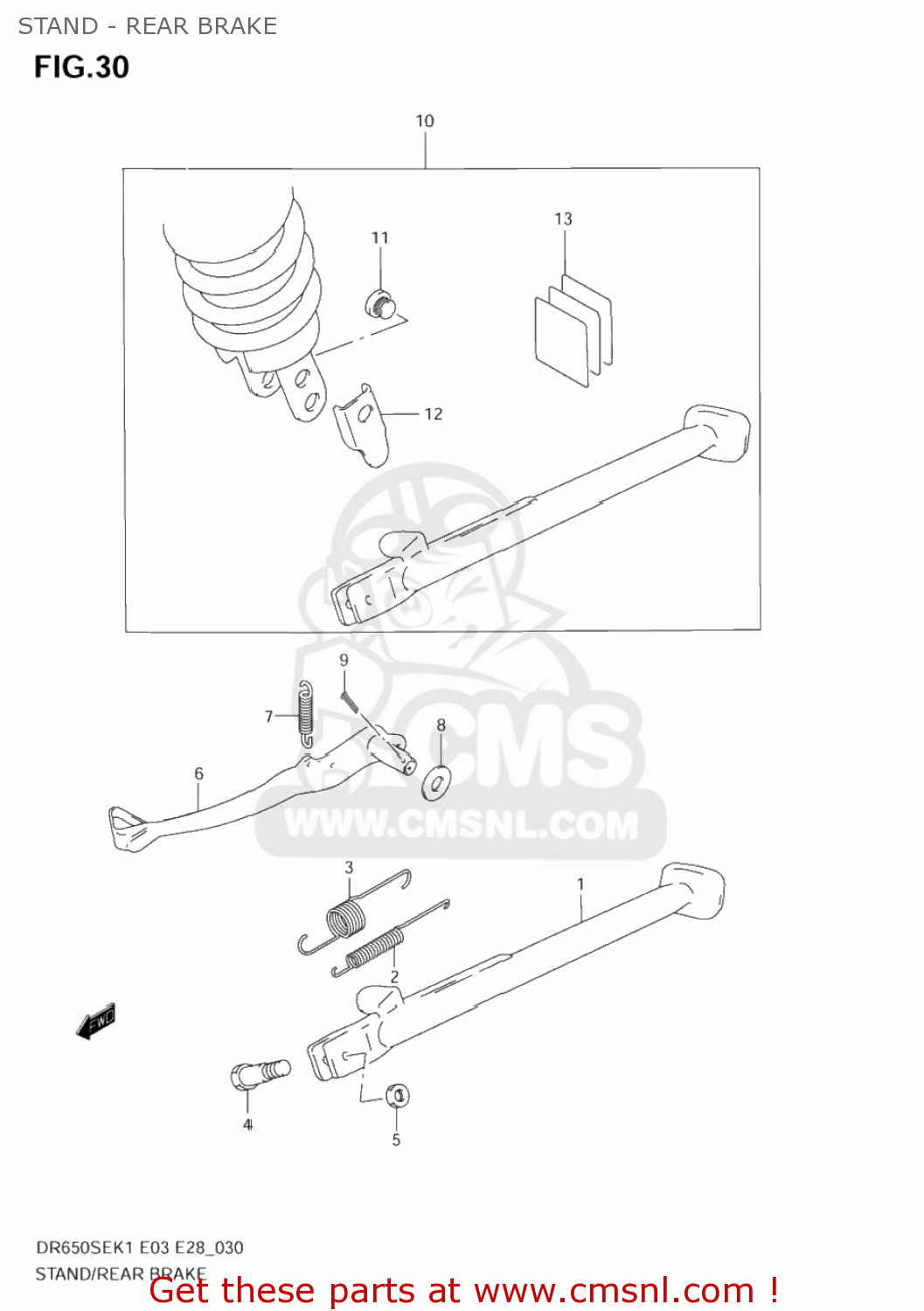

Stand - rear brake diagram DR650SE 2001 (K1) USA (E03)

STAND - REAR BRAKE DR650SE 2001 (K1) USA (E03)

STAND - REAR BRAKE DR650SE 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231032E20
ref: 1

STAND,PROP

€ 80.50

2

0944312045
ref: 2

SPRING

€ 4.50

3

0944319010
ref: 3

SPRING

€ 6.00

4

0911110047
ref: 4

BOLT(10X30)

€ 4.50

5

0915910097
ref: 5

NUT

€ 5.00

6

4311032E00
ref: 6

PEDAL,BRAKE

€ 37.50

7

0944311030
ref: 7

SPRING

€ 4.00

8

0916015049
ref: 8

WASHER(15.5X24X2.3)

€ 2.50

9

0411130308
ref: 9
04111-3030A

COTTER PIN

€ 1.50

10

4230032820
ref: 10

Low Side Stand

€ 145.50

11

0924810006
ref: 11

PLUG

€ 4.00

12

6218432E00
ref: 12

PLATE,RR SHOCK ABSORBER LWR

€ 4.50

13

6838032E10
ref: 13

LABEL SET,WARNING

€ 0.00
