LEFT HANDLE LEVER
DR650SE 2001 (K1) USA (E03)

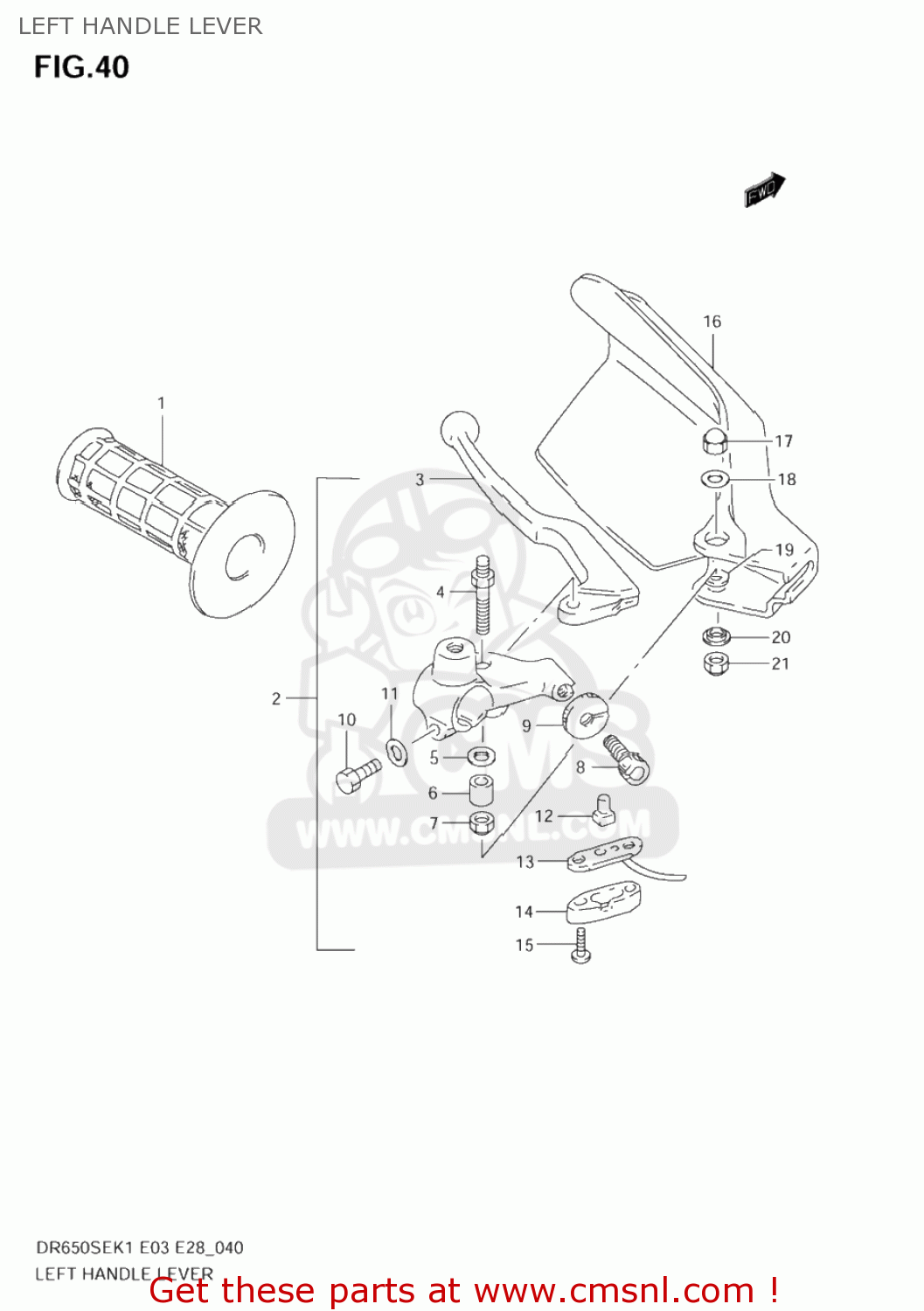

Left handle lever diagram DR650SE 2001 (K1) USA (E03)
LEFT HANDLE LEVER DR650SE 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5721112D00
ref: 1
GRIP,L
€ 14.50
2
5750012E20
ref: 2
57500-12E11
LEVER ASSEMBLY,CLUTCH
€ 71.50
3
5762020A02
ref: 3
LEVER,CLUTCH
€ 26.50
4
5753144B01
ref: 4
BOLT,CLUTCH LEVER PIVOT
€ 6.50
5
0832201063
ref: 5
08322-0106B
WASHER
€ 2.00
6
5753244B00
ref: 6
SPACER,LEVER SET
€ 3.50
7
0831921063
ref: 7
08319-2106B
NUT
€ 2.50
8
5744144400
ref: 8
ADJUSTER,CABLE
€ 5.50
9
5744244400
ref: 9
57442-11010
NUT,CABLE ADJUSTER LOCK
€ 4.00
10
0120406204
ref: 10
BOLT
€ 2.00
11
0832201063
ref: 11
08322-0106B
WASHER
€ 2.00
12
5746518601
ref: 12
CONTACT,SWITCH
€ 4.50
13
5754149100
ref: 13
HARNESS ASSY,WIRE
€ 5.00
14
5748133010
ref: 14
COVER,FR BK TERMINAL BASE
€ 19.50
15
5746437110
ref: 15
SCREW
€ 2.50
16-1
5754131D00019
ref: 16-1
57541-31D20-019
COVER,KNUCKLE,LEFT
€ 21.50
16-2
5754131D0030H
ref: 16-2
57541-31D20-30H
COVER,KNUCKLE,LEFT
€ 14.50
16-3
5754131D00YU1
ref: 16-3
57541-31D20-YU1
COVER, KNUCKLE LH (YELLOW)
€ 24.00
16-4
5754131D00YJ4
ref: 16-4
57541-31D30-YJ4
COVER, KNUCKLE LH (BLUE)
€ 24.00
17
0831310063
ref: 17
08313-1006A
NUT
€ 2.00
18
0916006088
ref: 18
WASHER(6.5X20X1.6)
€ 2.00
19
0916006019
ref: 19
WASHER(6.5X16X1.2)
€ 1.50
20
0916906055
ref: 20
WASHER
€ 2.00
21
0831921068
ref: 21
08319-2106A
NUT 6MM
€ 2.00
