OIL COOLER
DR650SE 2001 (K1) USA (E03)

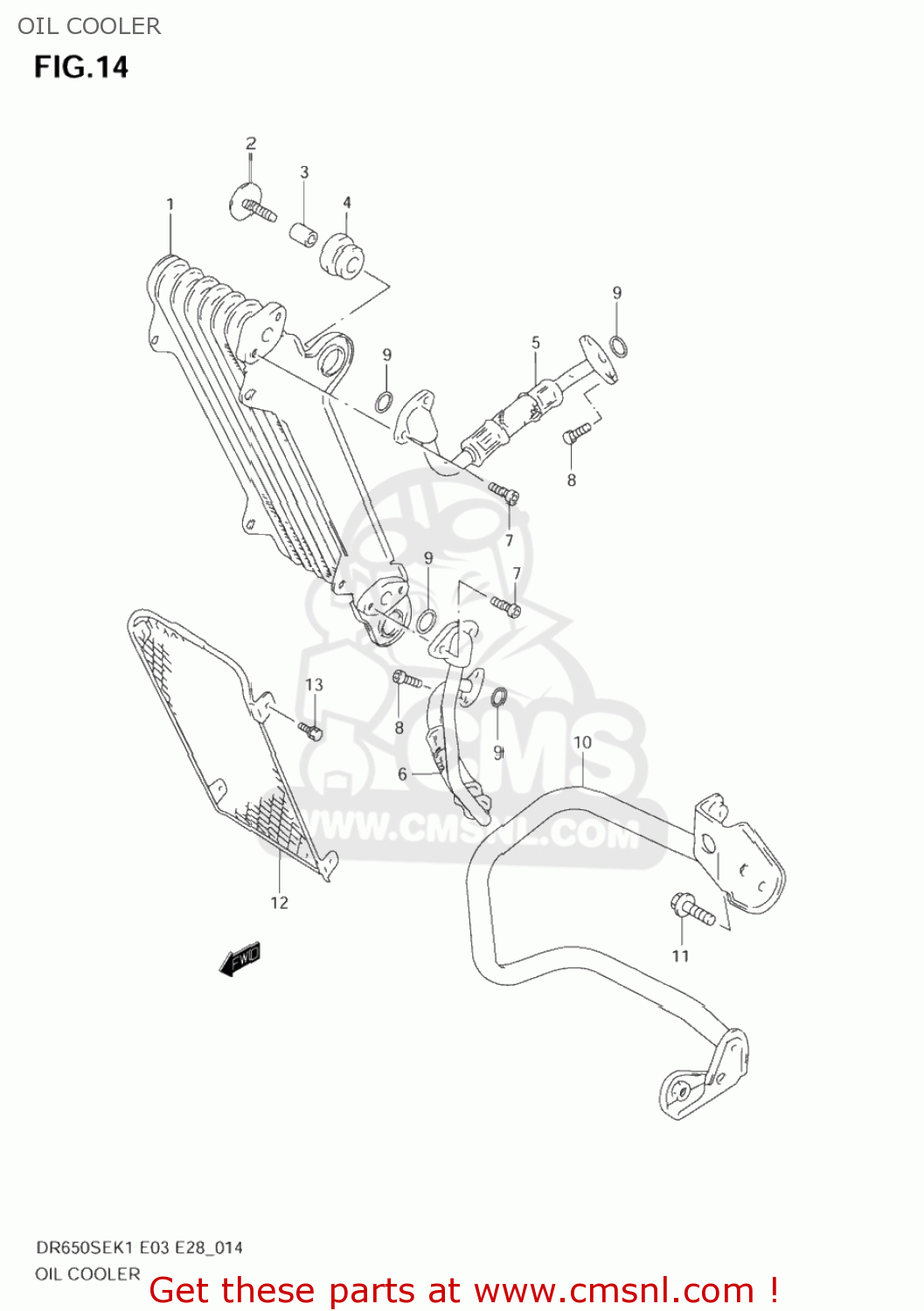

Oil cooler diagram DR650SE 2001 (K1) USA (E03)
OIL COOLER DR650SE 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1660032E00
ref: 1
COOLER ASSY,OIL
€ 710.50
2
0911608105
ref: 2
09116-08120
BOLT 8X28
€ 2.50
3
0918008193
ref: 3
SPACER(8.5X12X17)
€ 3.00
4
1662912D00
ref: 4
CUSHION,OIL COOLER
€ 3.00
5
1646032E00
ref: 5
HOSE,OIL COOLER UPR
€ 113.00
6
1647032E00
ref: 6
HOSE,OIL COOLER LWR
€ 103.50
7
0713006163
ref: 7
07130-0616B
BOLT,OIL FILLE
€ 3.00
8
0154706163
ref: 8
01547-0616B
BOLT
€ 2.50
9
0928012012
ref: 9
O RING(D:2.4,ID:11.8)
€ 5.00
10
1664032E11
ref: 10
GUARD,OIL COOLER
€ 46.00
11
0155008203
ref: 11
01550-0820A
BOLT
€ 3.00
12
1665032E00
ref: 12
BUMPER,OIL COOLER
€ 46.00
13
0216205103
ref: 13
02162-0510A
BOLT
€ 2.00
