STARTER CLUTCH
DR650SE 2001 (K1) USA (E03)

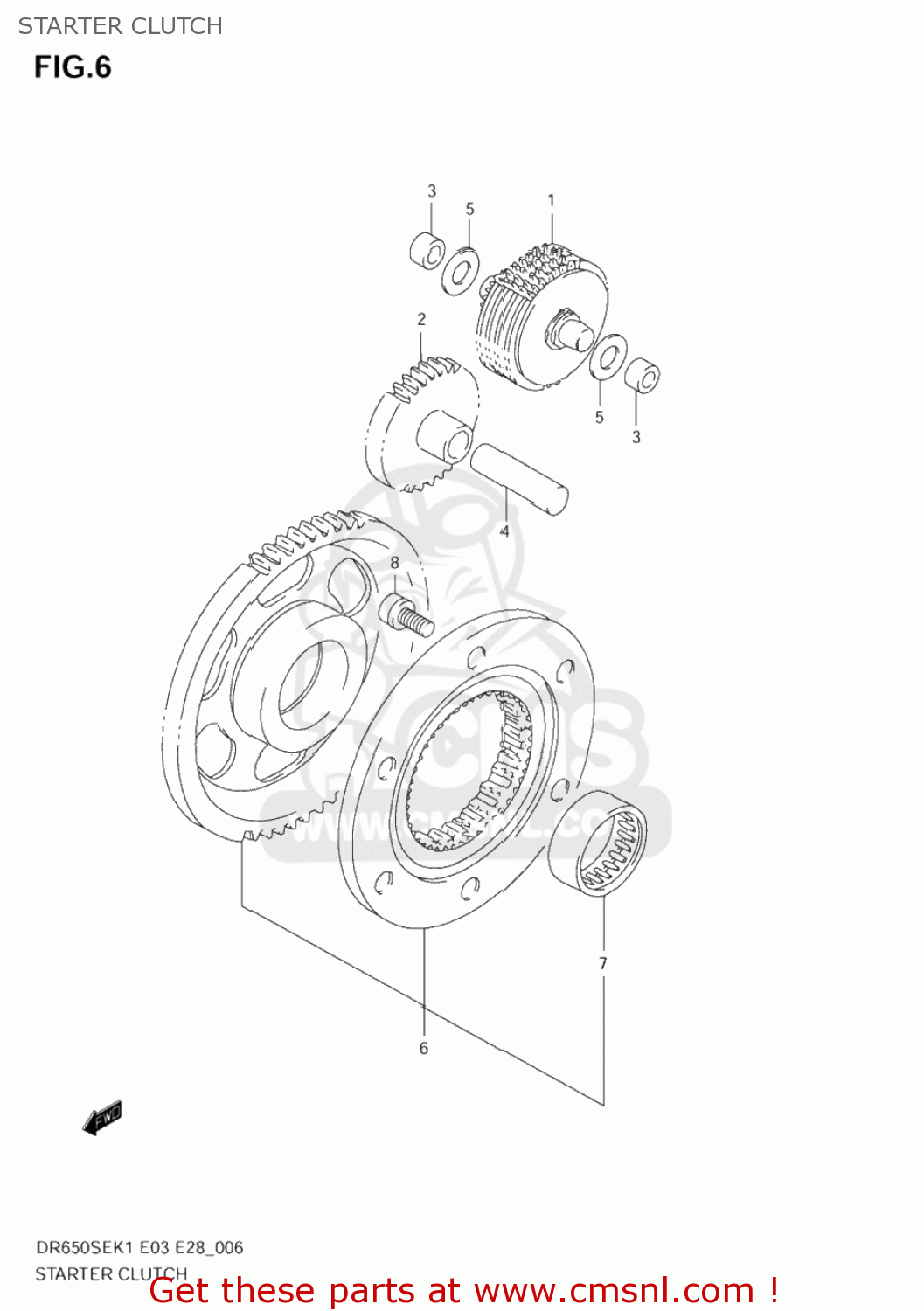

Starter clutch diagram DR650SE 2001 (K1) USA (E03)
STARTER CLUTCH DR650SE 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1260012D00
ref: 1
12600-12D01
LIMITER ASSEMBLY,STARTER IDLER GEAR
€ 122.50
1
1260012D00
ref: 1
12600-12D01
LIMITER ASSEMBLY,STARTER IDLER GEAR
€ 122.50
2
1261212D01
ref: 2
GEAR,STARTER IDLE NO.2(NT:27)
€ 40.50
2
1261212D01
ref: 2
GEAR,STARTER IDLE NO.2(NT:27)
€ 40.50
3
1261831D01
ref: 3
BUSH,LIMITER GEAR SHAFT
€ 17.50
4
0920212002
ref: 4
09206-12006
PIN
€ 7.50
5
0821110221
ref: 5
WASHER
€ 2.50
6
1260009860
ref: 6
CLUTCH SET,STARTER
€ 210.00
7
0926331009
ref: 7
BEARING(31X39X17.8)
€ 25.50
8
0713008203
ref: 8
07130-0820B
BOLT
€ 3.00
