FRONT CALIPER
DR650SE 2001 (K1) USA (E03)

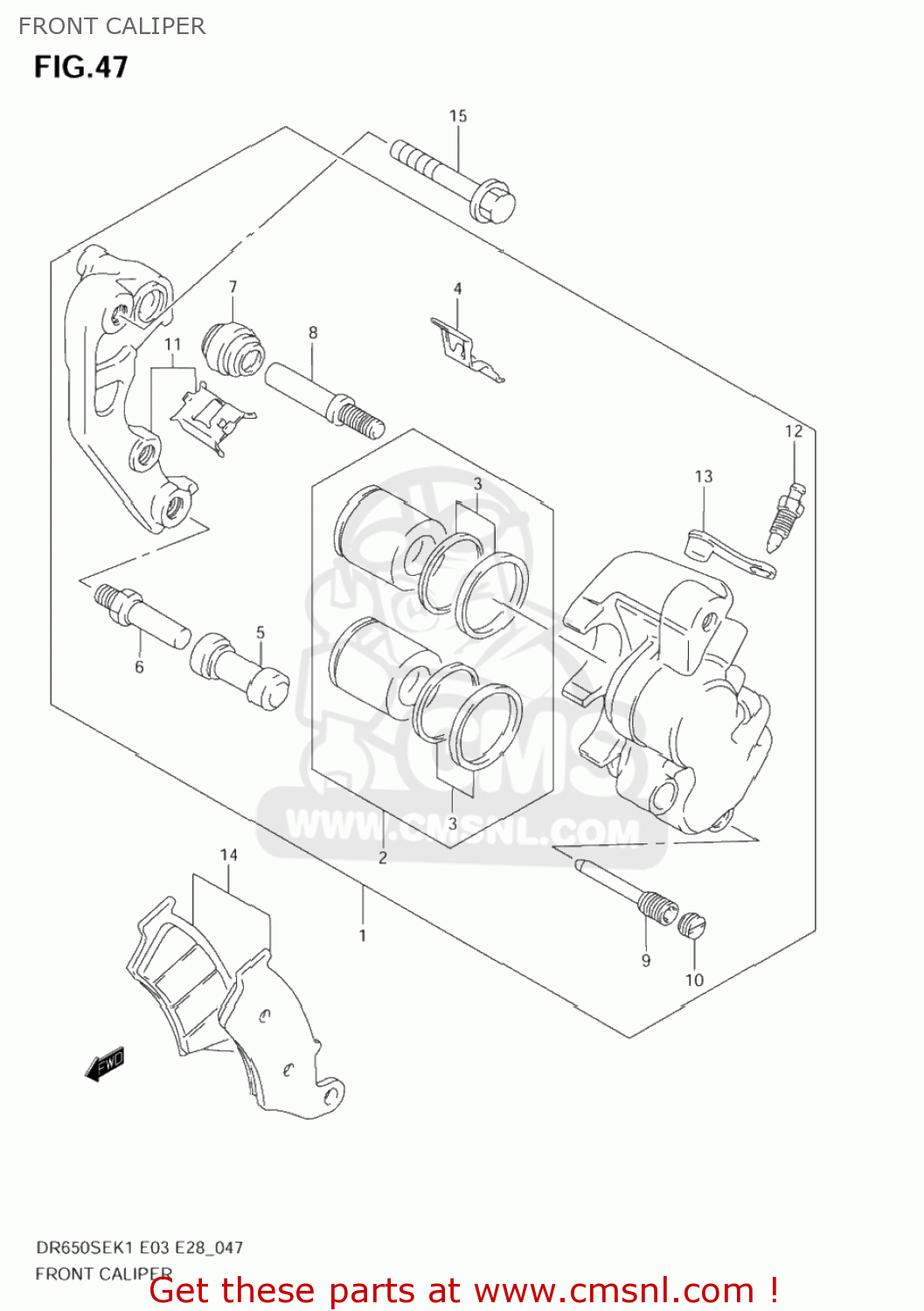

Front caliper diagram DR650SE 2001 (K1) USA (E03)
FRONT CALIPER DR650SE 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5930013E00999
ref: 1
59300-13E01-999
CALIPER ASSY,F
€ 392.00
2
5930027840
ref: 2
PISTON SET
€ 44.00
3
5930013820
ref: 3
SEAL SET,PISTON
€ 34.50
4
5931513E00
ref: 4
SPRING,PAD
€ 12.00
5
5938613A00
ref: 5
BOOT
€ 6.50
6
5938227C30
ref: 6
BOLT
€ 7.50
7
5930314500
ref: 7
BOOT
€ 5.50
8
5930527C00
ref: 8
PIN
€ 13.50
9
5934513E00
ref: 9
PIN,HANGER
€ 13.50
10
5914621E10
ref: 10
PLUG,PIN
€ 6.50
11
5935013E00
ref: 11
BRACKET
€ 90.50
12
5912101A00
ref: 12
BLEEDER
€ 8.50
13
5912201A00
ref: 13
CAP,BLEEDER
€ 4.50
14
5930013830
ref: 14
PAD SET (NAS)
€ 42.00
15
0910308338
ref: 15
BOLT(8X40)
€ 3.50
