CAM CHAIN

DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

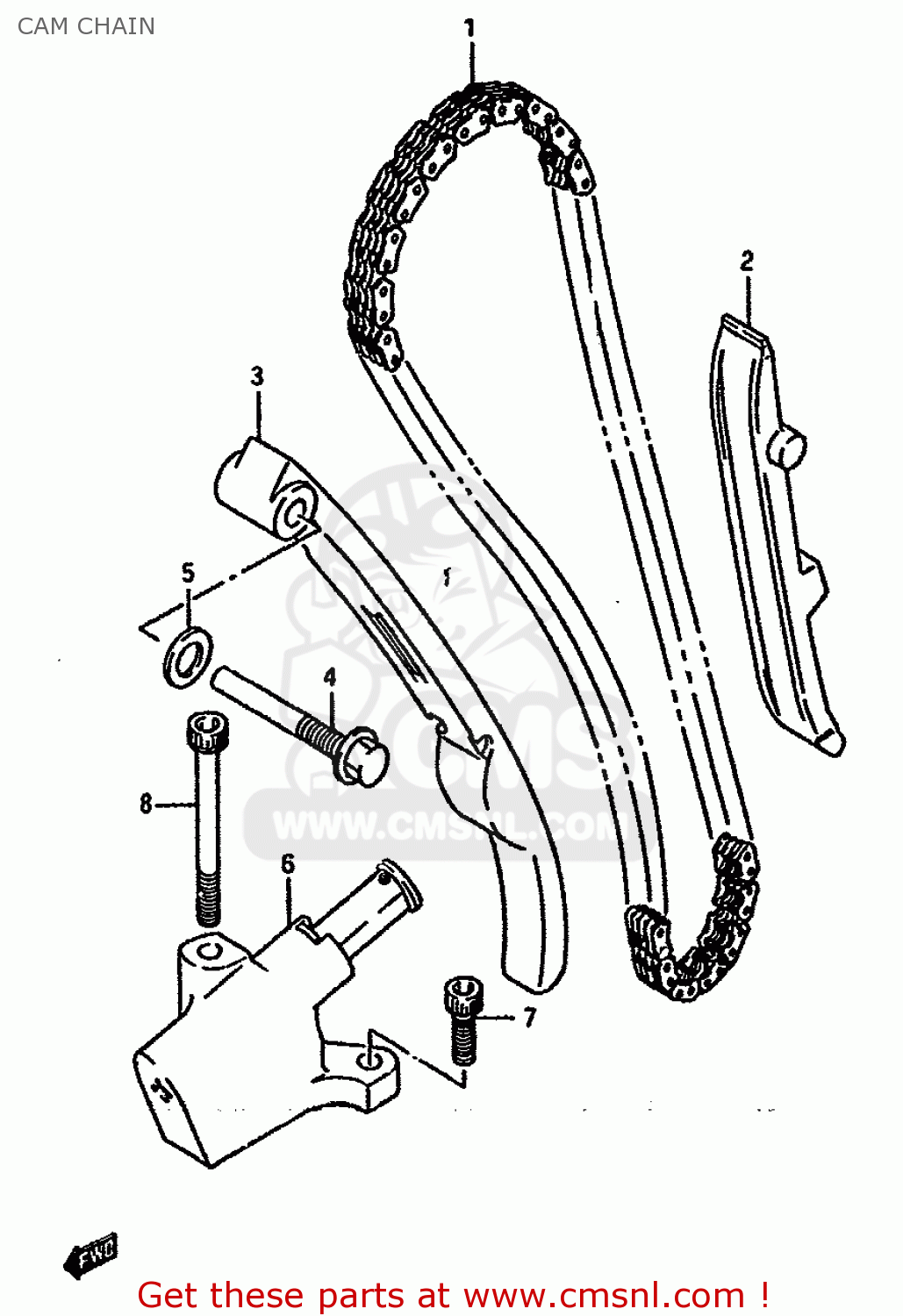

Cam chain diagram DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

CAM CHAIN DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

CAM CHAIN DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

prices are in EUR

ref

part #

description

quantity

1

1276044B00106
ref: 1
106LE

CHAIN,CAMSHAFT DRIVE

€ 97.50

2

1277144B00
ref: 2

GUIDE,CAM CHAIN

€ 29.50

3

1281144B00
ref: 3

TENSIONER,CAM CHAIN

€ 66.00

4

1281224B00
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 5.50

5

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

6

1283044B00
ref: 6

ADJUSTER ASSY,TENSIONER

€ 83.50

7

0711006205
ref: 7

BOLT

€ 3.00

8

0910606034
ref: 8

BOLT

€ 2.50
