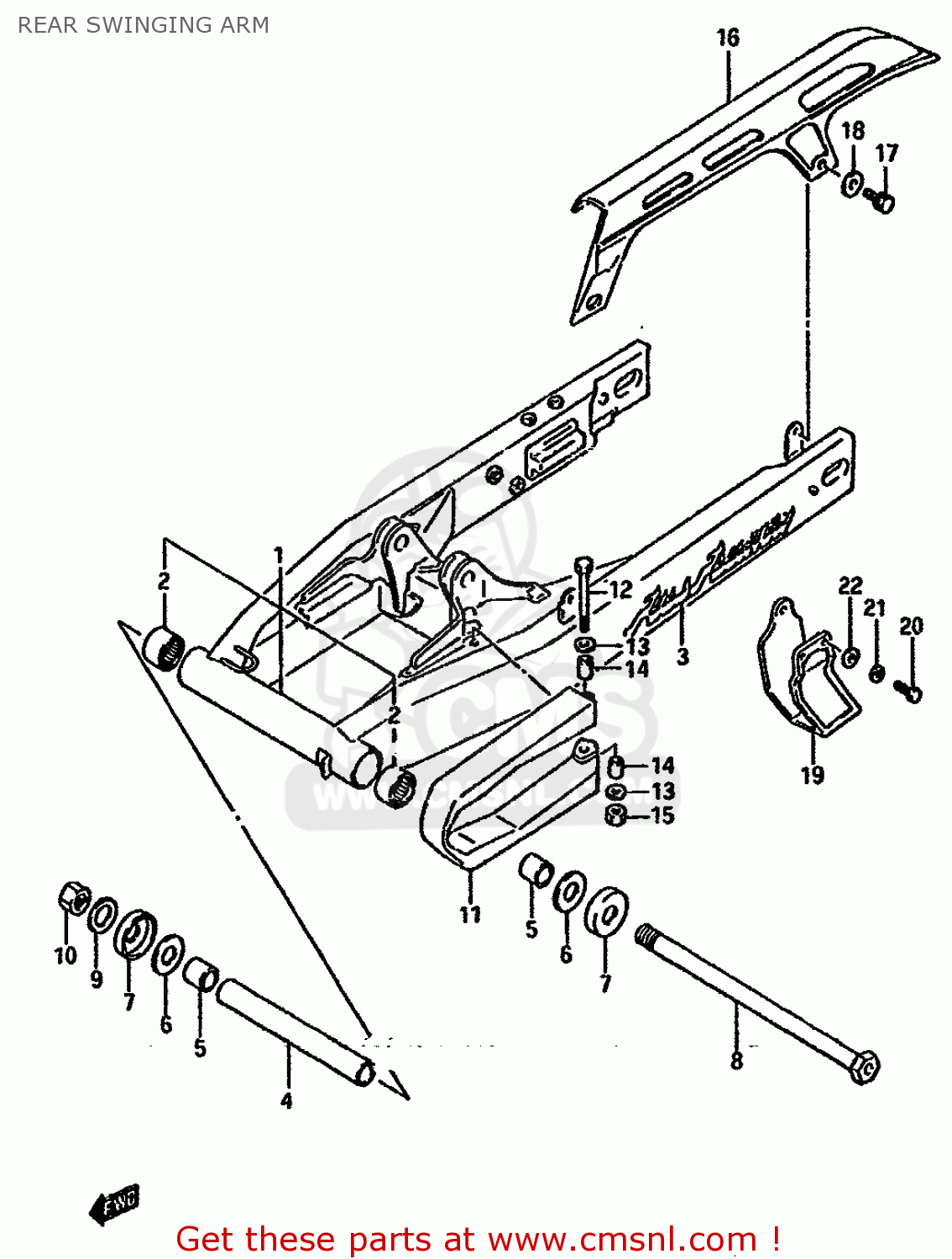

REAR SWINGING ARM

ref

part #

description

quantity

1-1

6100044B0037F
ref: 1-1
MODEL J

SWINGING ARM ASSY,REAR (ORANGE)

€ 585.50

1-2

6100044B0034S
ref: 1-2
MODEL J

SWINGING ARM ASSY,REAR (BLUE)

€ 585.50

1-3

6100044B1013L
ref: 1-3
MODEL K

SWINGING ARM ASSY,REAR (SILVER)

€ 561.00

2

0926322022
ref: 2

BEARING(22X29X20)

€ 27.00

3-1

6838144B0016L
ref: 3-1
MODEL J FOR 37F

EMBLEM (BLUE)

€ 5.50

3-2

6838144B00742
ref: 3-2
MODEL J FOR 34S

EMBLEM (SILVER)

€ 0.00

3-3

6838144B00019
ref: 3-3
MODEL K FOR 13L

EMBLEM

€ 5.50

4

6128214A00
ref: 4

SPACER,RR SWGARM PIVOT CTR

€ 15.00

5

6125132410
ref: 5

SPACER,RR SWGARM PIVOT

€ 8.50

6

0821116341
ref: 6

WASHER

€ 2.00

7

6126214A00
ref: 7

SEAL,RR SWGARM PIVOT DUST

€ 7.50

8-1

6121144B00
ref: 8-1
MODEL J

SHAFT

€ 39.00

8-2

6121144B01
ref: 8-2
MODEL K

SHAFT,REAR SWING ARM

€ 39.00

9

0832211165
ref: 9

WASHER (BLACK)

€ 2.00

10

0831921165
ref: 10

NUT (BLACK)

€ 5.00

11

6127344B00
ref: 11

BUFFER,CHAIN TOUCH DEFENSE

€ 34.00

12

6127544B00
ref: 12

BOLT,TOUCH DEFENSE FTG

€ 4.50

13

0916005036
ref: 13

WASHER (5.5X14X1.2)

€ 2.00

14

0918006165
ref: 14

SPACER (6.6X9X6.5)

€ 2.50

15

0831931056
ref: 15

NUT

€ 3.00

16

6131014A00
ref: 16

CASE,CHAIN

€ 49.00

17

0151706105
ref: 17

BOLT

€ 2.50

18

0916906026
ref: 18

WASHER

€ 2.00

19

6134114A03
ref: 19

GUIDE,CHAIN

€ 25.00

20

0110706167
ref: 20

BOLT

€ 3.00

21

0832121067
ref: 21

WASHER,LOCK

€ 2.50

22

0916006019
ref: 22

WASHER(6.5X16X1.2)

€ 1.50
