MAGNETO

DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

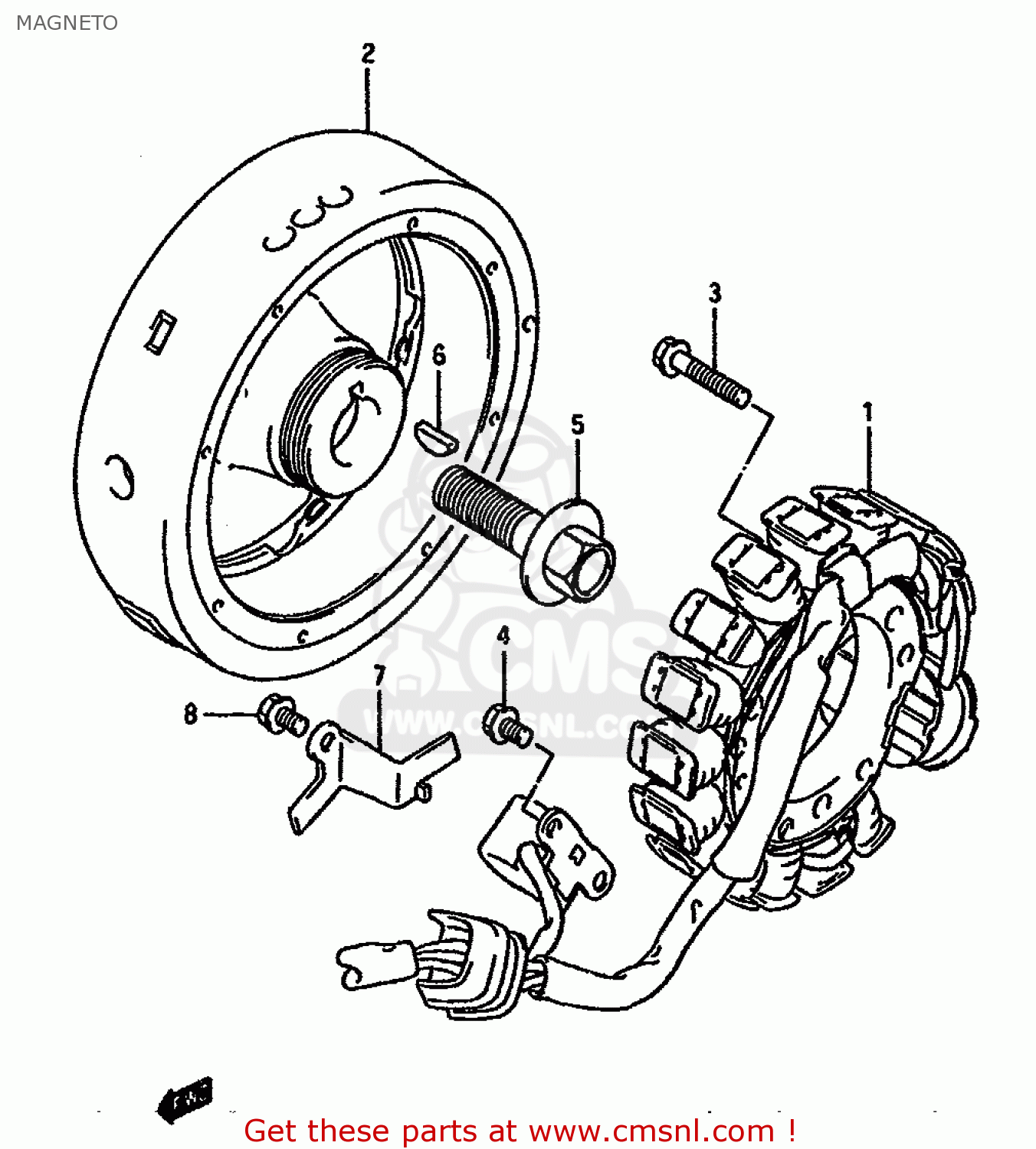

Magneto diagram DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

MAGNETO DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

MAGNETO DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

prices are in EUR

ref

part #

description

quantity

1

3210144B00
ref: 1

STATOR ASSY

€ 713.00

2

3210244B00
ref: 2

ROTOR

€ 902.00

3

0154706257
ref: 3

BOLT

€ 2.50

4

0154705107
ref: 4

BOLT

€ 1.50

5

0910314001
ref: 5

BOLT(14X43)

€ 7.00

6

0942005007
ref: 6

KEY

€ 3.00

7

3237144B00
ref: 7

CLAMP,MAGNETO LEAD WIRE

€ 3.00

8

0154705107
ref: 8

BOLT

€ 1.50
