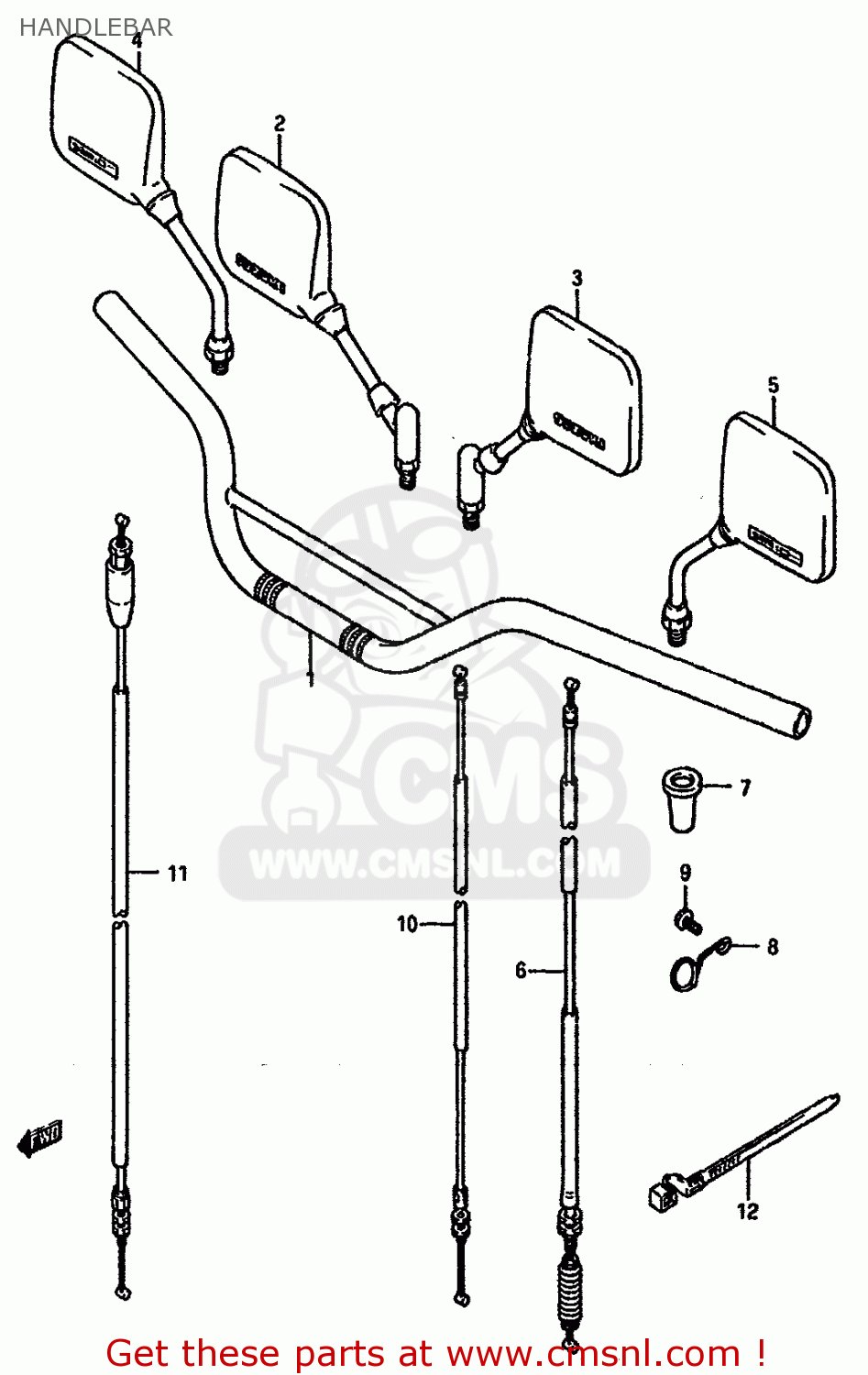

HANDLEBAR

ref

part #

description

quantity

1-1

5611044B00291
ref: 1-1
MODEL J

HANDLEBAR(BLACK)

€ 75.00

1-2

5611044B2021R
ref: 1-2
MODEL K

HANDLEBAR (SILVER)

€ 94.50

2

5650010020
ref: 2
E2,E4,E17,E21,E34,E5

MIRROR ASSEMBLY,REAR VIEW

€ 90.00

3

5660010020
ref: 3
E2,E4,E17,E21,E34,E5

MIRROR ASSEMBLY,REAR VIEW

€ 92.00

4-1

5650001A50
ref: 4-1
E1,E15,E18,E25,E39

MIRROR ASSEMBLY,REAR VIEW

€ 222.50

4-2

5650001A20
ref: 4-2
E16,E24

MIRROR, REAR VIEW RH

€ 222.50

4-3

5650001A10
ref: 4-3
E22

MIRROR ASSEMBLY,RIGHT

€ 57.00

5-1

5660001A50
ref: 5-1
E1,E15,E18,E25,E39

MIRROR ASSEMBLY,LEFT

€ 196.00

5-2

5660001A20
ref: 5-2
E16,E24

MIRROR, REAR VIEW LH

€ 196.00

5-3

5660001A10
ref: 5-3
E22

MIRROR ASSEMBLY,LEFT

€ 30.50

6-1

5820044B00
ref: 6-1
MODEL J

CABLE ASSY,CLUTCH

€ 38.50

6-2

5820044B01
ref: 6-2
MODEL K

CABLE ASSY,CLU

€ 38.50

7

5827331000
ref: 7

BOOT,CLUTCH CABLE

€ 2.50

8

3494930002
ref: 8

CLIP

€ 15.50

9

0211206125
ref: 9

SCREW

€ 1.50

10-1

5890044B00
ref: 10-1
MODEL J

CABLE ASSY,DECOMPPRESION

€ 52.00

10-2

5890044B03
ref: 10-2
MODEL K

CABLE ASSY,DECOMPRESSION

€ 52.00

11

5830044B00
ref: 11

CABLE ASSY,THROTTLE

€ 25.50

12

0940720403
ref: 12
MODEL K

CLAMP, CABLE

€ 4.00

all assemblies
