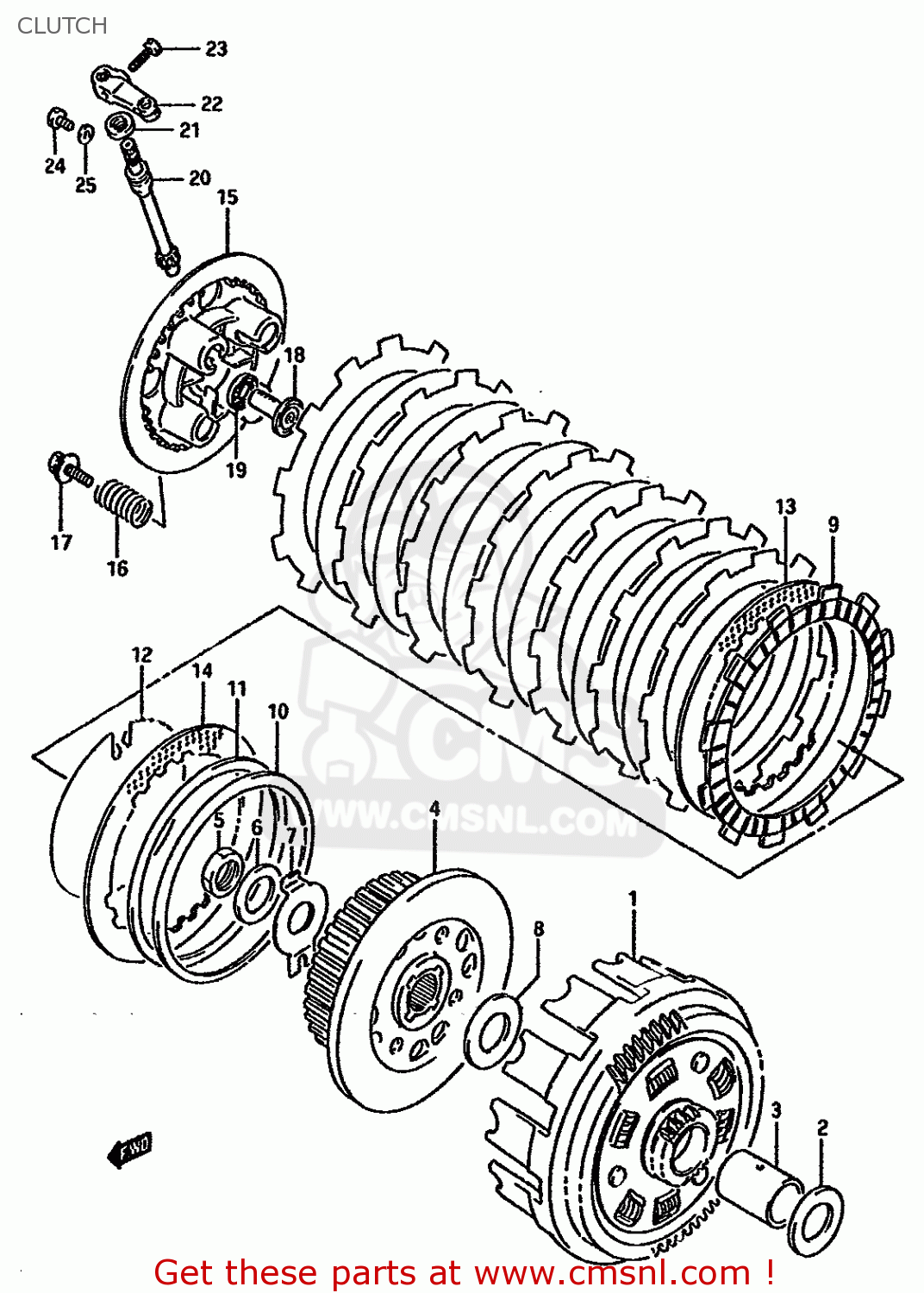

CLUTCH

ref

part #

description

quantity

1

2120044B01
ref: 1

GEAR,PRIMARY DRIVEN (NT:62/20)

€ 293.00

2

0916022067
ref: 2

WASHER(22X38X2)

€ 10.50

3

0918022040
ref: 3

SPACER

€ 18.00

4

2141044B00
ref: 4

HUB,CLUTCH SLEEVE

€ 95.50

5

0914020002
ref: 5

NUT (20MM)

€ 3.50

6

0916420002
ref: 6

WASHER

€ 3.50

7

0916920005
ref: 7

WASHER

€ 2.50

8

0916022068
ref: 8

WASHER(22X44X2)

€ 9.00

9

2144149200
ref: 9

PLATE,CLUTCH DRIVE (MCA)

€ 16.00

10

2147149100
ref: 10

SEAT,WAVE WASHER

€ 8.00

11

0916400003
ref: 11

WASHER

€ 9.00

12

2148145100
ref: 12

RING,STOPPER

€ 5.00

13

2145144B00
ref: 13
T:1.6

PLATE,CLUTCH DRIVEN NO.1 (NAS)

€ 7.00

14

2145149200
ref: 14
T:2

PLATE,CLUTCH DRIVEN (NAS)

€ 6.00

15

2146244B00
ref: 15

DISK,PRESSURE

€ 56.50

16

0944020017
ref: 16

SPRING

€ 5.00

17

0911606016
ref: 17

BOLT

€ 2.50

18

2316500B00
ref: 18

RACK,CLUTCH RELEASE

€ 17.00

19

0926310002
ref: 19

BEARING(10X22X2.8)

€ 8.50

20

2326144B00
ref: 20

PINION,CLUTCH RELEASE

€ 39.00

21

0928510004
ref: 21

SEAL,OIL(10X17X5)

€ 3.50

22

2327144B00
ref: 22

ARM,CLUTCH RELEASE

€ 27.50

23

0110706167
ref: 23

BOLT

€ 3.00

24

0913506002
ref: 24

BOLT

€ 2.50

25

0916806004
ref: 25

GASKET(6.2X11X1).2 (NAS)

€ 1.50

all assemblies
