FUEL TANK (MODEL K)

DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

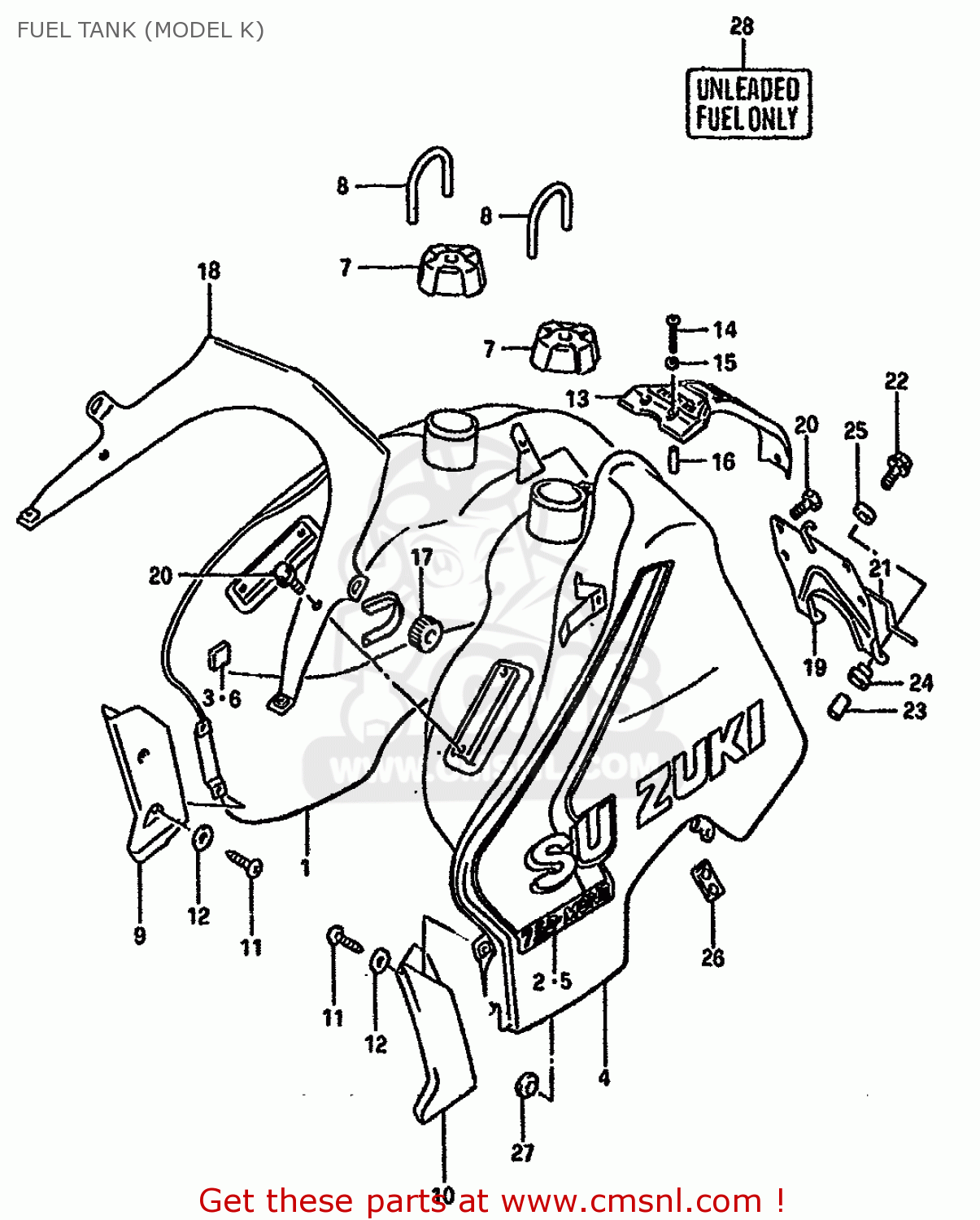

Fuel tank (model k) diagram DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

FUEL TANK (MODEL K) DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)
FUEL TANK (MODEL K) DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)
FUEL TANK (MODEL K) DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)
prices are in EUR
ref
part #
description
quantity
1-1
4410044B4028V
ref: 1-1
TANK ASSY,FUEL RH (RED)
€ 516.00
1-2
4410044B8028V
ref: 1-2
E22
TANK ASSY,FUEL RH (RED)
4410044B8028V
€ 516.00
1-3
4410044B4038K
ref: 1-3
TANK,FUEL
€ 516.00
1-4
4410044B8038K
ref: 1-4
E22
TANK ASSY,FUEL RH (WHITE)
€ 516.00
2-1
6811544B002YG
ref: 2-1
FOR 28V
TAPE,FUEL TANK,R
6811544B002YG
€ 35.50
2-2
6811544B002YA
ref: 2-2
FOR 38K
TAPE,FUEL TANK,R
€ 25.50
3
4451444B00
ref: 3
CUSHION
€ 1.50
4-1
4410044B5028V
ref: 4-1
TANK ASSY,FUEL
4410044B5028V
€ 774.50
4-2
4410044B9028V
ref: 4-2
E22
TANK ASSY,FUEL LH (RED)
4410044B9028V
€ 774.50
4-3
4410044B5038K
ref: 4-3
TANK ASSY,FUEL LH (BLUE)
€ 774.50
4-4
4410044B9038K
ref: 4-4
E22
TANK ASSY,FUEL LH (BLUE)
€ 774.50
5-1
6811644B002YG
ref: 5-1
FOR 28V
TAPE,FUEL TANK
€ 25.50
5-2
6811644B002YA
ref: 5-2
FOR 38K
TAPE,FUEL TANK,L
€ 25.50
6
4451444B00
ref: 6
CUSHION
€ 1.50
7
4420044B00
ref: 7
CAP ASSY,FUEL TANK
4420044B00
€ 43.00
8
0935250823240
ref: 8
HOSE
€ 13.00
9-1
4451144B1028V
ref: 9-1
COVER,FUEL TANK FR,R
4451144B1028V
€ 37.50
9-2
4451144B1038K
ref: 9-2
COVER,FUEL TANK FR,R
€ 29.50
10-1
4451244B1028V
ref: 10-1
COVER,FUEL TANK FR,L
4451244B1028V
€ 22.00
10-2
4451244B1038K
ref: 10-2
COVER,FUEL TANK FR,L
4451244B1038K
€ 27.00
11
0214206125
ref: 11
SCREW 6X12
0214206125
€ 2.00
12
0832221064
ref: 12
WASHER
0832221064
€ 2.00
13
4451344B00
ref: 13
COVER,FUEL TANK CTR
4451344B00
€ 38.00
14
0913906046
ref: 14
SCREW (6X40)
€ 2.50
15
0916008107
ref: 15
WASHER
€ 2.00
16
0918006201
ref: 16
SPACER
€ 3.50
17
0932910021
ref: 17
CUSHION
0932910021
€ 6.00
18
4452144B00
ref: 18
BRACKET,FRONT
€ 35.50
19
4453044B00
ref: 19
BRACKET,REAR
4453044B00
€ 25.50
20
0151706108
ref: 20
BOLT
0151706108
€ 2.50
21
4511944B00
ref: 21
BRACKET,SEAT FRONT HOOK
4511944B00
€ 7.50
22
0151706307
ref: 22
BOLT
0151706307
€ 2.00
23
0918006072
ref: 23
SPACER
0918006072
€ 2.00
24
0932010020
ref: 24
CUSHION
0932010020
€ 4.00
25
0932014013
ref: 25
CUSHION
0932014013
€ 3.00
26
0932910007
ref: 26
CUSHION
0932910007
€ 3.00
27
0932110021
ref: 27
CUSHION
0932110021
€ 4.50
28
8693273060
ref: 28
MOEL J E75 (AUSTRALI
LABEL,FUEL CAUTION
8693273060
€ 4.00
27
4511944B00
ref: 27
BRACKET,SEAT FRONT HOOK
4511944B00
€ 7.50
28
0110706306
ref: 28
BOLT
0110706306
€ 2.50
29
0916006072
ref: 29
WASHER (6.5X24X1.6)
0916006072
€ 2.00
30
0918006072
ref: 30
SPACER
0918006072
€ 2.00
31
0932010020
ref: 31
CUSHION
0932010020
€ 4.00
32
0932014013
ref: 32
CUSHION
0932014013
€ 3.00
33
0932910007
ref: 33
CUSHION
0932910007
€ 3.00
34
0932110021
ref: 34
CUSHION
0932110021
€ 4.50
35
8693273060
ref: 35
E75 (AUSTRALIA)
LABEL,FUEL CAUTION
8693273060
€ 4.00
